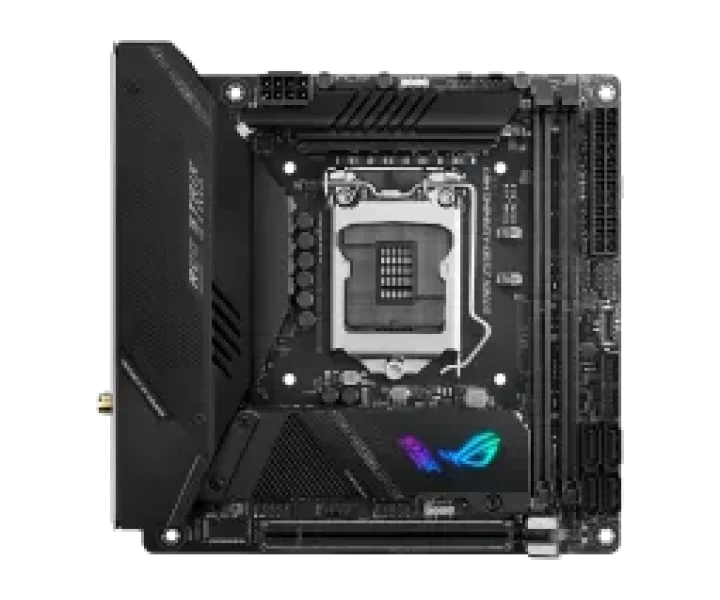

ROG STRIX Z590-I GAMING WIFI özellikleri ve fiyatları

ROG STRIX Z590-I GAMING WIFI teknik özellikleri

Model kodu

ROG STRIX Z590-I GAMING WIFI

İşlemci soketi

LGA1200

Anakart yonga seti

Z590

Anakart biçimi

Mini-ITX

RAM türü

DDR4

Uyumlu işlemciler

Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors; Supports Intel 14 nm CPU; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**; * Refer to www.asus.com for CPU support list.; ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Desteklenen bellek yapılandırmaları

5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*; Supports Intel Extreme Memory Profile (XMP); OptiMem II; * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.; * 11th Gen Intel Core processors support 3200/2933/2800/2666/2400/2133 natively.; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

PCIe yuvaları

Intel 11th &10th Gen Processors; 1 x PCIe 4.0/3.0 x16 slot(s)*; - Intel 11th Gen processors supports PCIe 4.0 x16 mode; - Intel 10th Gen processors supports PCIe 3.0 x16 mode; * Supports PCIe bandwidth bifurcation for RAID on CPU function.

PCIe şerit paylaşımı ve işlemci koşulları

Intel 11th &10th Gen Processors; 1 x PCIe 4.0/3.0 x16 slot(s)*; - Intel 11th Gen processors supports PCIe 4.0 x16 mode; - Intel 10th Gen processors supports PCIe 3.0 x16 mode; * Supports PCIe bandwidth bifurcation for RAID on CPU function.

M.2 uyumluluğu ve şerit paylaşımı

Intel11th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280; - Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs.; Intel Z590 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes); 4 x SATA 6Gb/s ports; * Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots; To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.

RAID desteği

* Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots

SATA bağlantı sayısı

4

USB bağlantısı

Rear USB: Total 8 ports; 1 x Thunderbolt 4 port(s) (1 x USB Type-C) with up to 5V/3A, 15W charging support; 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C); 1 x USB 3.2 Gen 2 port(s) (1 x Type-A); 1 x USB 3.2 Gen 1 port(s) (1 x Type-A); 4 x USB 2.0 port(s) (4 x Type-A); 1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C); 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports; 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports

Kablolu ağ bağlantısı

1 x Intel 2.5Gb Ethernet

Wi-Fi

Intel Wi-Fi 6E

Ses çıkışı

Audio Features; - Audio Shielding; - ALC4080 + Savitech SV3H712 AMP; - LED-illuminated audio jacks; - Premium Japanese audio capacitors; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Ses yongası

- ALC4080 + Savitech SV3H712 AMP

Ses kanalı yapılandırması

7.1 kanal

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling related; 1 x 4-pin CPU Fan header(s); 1 x 4-pin AIO Pump header(s); 1 x 4-pin Chassis Fan header(s); Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C); 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports; 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports; Miscellaneous; 1 x AURA Addressable Gen 2 header(s); 1 x AURA RGB header(s); 1 x Clear CMOS header; 1 x Front Panel Audio header (AAFP); 1 x Speaker header; 1 x 10-1 pin System Panel header; 1 x Thermal Sensor header

Fan ve pompa bağlantıları

Fan and Cooling related; 1 x 4-pin CPU Fan header(s); 1 x 4-pin AIO Pump header(s); 1 x 4-pin Chassis Fan header(s)

Güç bağlantıları

1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector

Görüntü çıkışları ve kullanım koşulları

1 x HDMI port**

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

Extreme Engine Digi+; - 5K Black Metallic Capacitors; ASUS Q-Design; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink backplate; - M.2 heatsink; - Skived Fin heatsink; ASUS EZ DIY; - BIOS FlashBack button; - BIOS FlashBack LED; - ProCool II; - Pre-mounted I/O shield; - SafeSlot; AURA Sync; - AURA RGB header(s); - Addressable Gen 2 RGB header(s); ASUS HYDRANODE; - 1 x Chassis fan support* (CHA_FANP); * Visit ASUS Website for the latest compatibility list.

Boyutlar

Mini-ITX; 17cm x 17cm

Kutu içeriği

Cables; 4 x SATA 6Gb/s cables; 1 x Panel cable; 1 x ROG USB2.0 splitter cable; Miscellaneous; 1 x ASUS Wi-Fi moving antennas; 1 x Cable ties pack; 2 x M.2 SSD screw package(s); 1 x ROG key chain; 1 x ROG Strix stickers; 1 x ROG thank you card; Installation Media; 1 x Support DVD; Documentation; 1 x User manual

Üreticinin ayrıntılı teknik bilgileri

Model: ROG STRIX Z590-I GAMING WIFI, CPU: Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types., Chipset: Z590, Memory: 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Supports Intel Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel Core processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types., Graphics: 1 x HDMI port**, Expansion Slots: Intel 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot(s)* - Intel 11th Gen processors supports PCIe 4.0 x16 mode - Intel 10th Gen processors supports PCIe 3.0 x16 mode * Supports PCIe bandwidth bifurcation for RAID on CPU function., Storage: Intel11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel Z590 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology., Ethernet: 1 x Intel 2.5Gb Ethernet, Wireless & Bluetooth: Intel Wi-Fi 6E, USB: Rear USB: Total 8 ports 1 x Thunderbolt 4 port(s) (1 x USB Type-C) with up to 5V/3A, 15W charging support 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 1 x USB 3.2 Gen 1 port(s) (1 x Type-A) 4 x USB 2.0 port(s) (4 x Type-A) 1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports, Audio: Audio Features - Audio Shielding - ALC4080 + Savitech SV3H712 AMP - LED-illuminated audio jacks - Premium Japanese audio capacitors * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output., Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin AIO Pump header(s) 1 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports Miscellaneous 1 x AURA Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 10-1 pin System Panel header 1 x Thermal Sensor header, Special Features: Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - Skived Fin heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool II - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB header(s) - Addressable Gen 2 RGB header(s) ASUS HYDRANODE - 1 x Chassis fan support* (CHA_FANP) * Visit ASUS Website for the latest compatibility list., Software Features: ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync Two-Way AI Noise Cancelation AI Suite 3 - 5-Way Optimization with AI Overclocking TPU EPU DIGI+ VRM Fan Xpert 4 Turbo app - EZ update MyAsus WinRAR UEFI BIOS AI Overclocking Guide MemTest86 ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 4 x SATA 6Gb/s cables 1 x Panel cable 1 x ROG USB2.0 splitter cable Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 2 x M.2 SSD screw package(s) 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG thank you card Installation Media 1 x Support DVD Documentation 1 x User manual, Operating System: Windows 10 64bit, Form Factor: Mini-ITX 17cm x 17cm

part Number

90MB1680-M0AAY0
