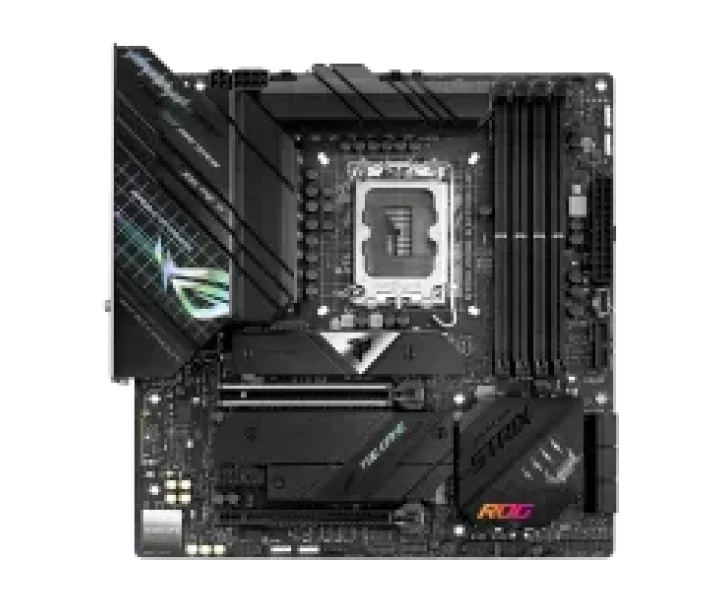

ROG STRIX Z690-G GAMING WIFI özellikleri ve fiyatları

ROG STRIX Z690-G GAMING WIFI teknik özellikleri

Model kodu

ROG STRIX Z690-G GAMING WIFI

İşlemci soketi

LGA1700

Anakart yonga seti

Z690

RAM türü

DDR5

Uyumlu işlemciler

Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors; Supports Intel 10 nm CPU; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**; * Refer to www.asus.com for CPU support list.; ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Desteklenen bellek yapılandırmaları

4 x DIMM, Max. 128GB, DDR5 6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II; *Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Anakart biçimi

ATX

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

Intel 13th & 12th Gen Processors*; 1 x PCIe 5.0 x16 slot (supports x16 mode); Intel Z690 Chipset**; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 3.0 x1 slot; * Please check PCIe bifurcation table in support site.; ** Supports Intel Optane Memory H Series on PCH-attached PCIe slot

PCIe şerit paylaşımı ve işlemci koşulları

Intel 13th & 12th Gen Processors*; 1 x PCIe 5.0 x16 slot (supports x16 mode); Intel Z690 Chipset**; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 3.0 x1 slot; * Please check PCIe bifurcation table in support site.; ** Supports Intel Optane Memory H Series on PCH-attached PCIe slot

M.2 uyumluluğu ve şerit paylaşımı

Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports; Intel 13th & 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel Z690 Chipset**; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes); 6 x SATA 6Gb/s ports ***; * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.; ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.; *** RAID configuration and optical disc drives are not supported on the SATA6G_E1-2 ports.

RAID desteği

* Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.; *** RAID configuration and optical disc drives are not supported on the SATA6G_E1-2 ports.

SATA bağlantı sayısı

6

USB bağlantısı

Rear USB: Total 10 ports; 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C); 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C); 4 x USB 3.2 Gen 1 ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Kablolu ağ bağlantısı

1 x Intel 2.5Gb Ethernet

Wi-Fi

Intel Wi-Fi 6E; 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax); Supports 2.4/5/6GHz frequency band*; Bluetooth v5.2; * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.

Ses çıkışı

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080; - Impedance sense for front and rear headphone outputs; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input; - Supports up to 32-Bit/384 kHz playback; Audio Features; - SupremeFX Shielding Technology; - Savitech SV3H712 AMP; - Gold-plated audio jacks; - Rear optical S/PDIF out port; - Premium audio capacitors; - Audio cover

Ses yongası

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C); 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C); 4 x USB 3.2 Gen 1 ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort; 1 x HDMI port; 1 x Wi-Fi Module; 1 x Intel 2.5Gb Ethernet port; 5 x Gold-plated audio jacks; 1 x Optical S/PDIF out port; 1 x BIOS FlashBack button; 1 x Clear CMOS button

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; Storage related; 3 x M.2 slots (Key M); 6 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x AURA RGB header; 1 x CPU Over Voltage jumper; 1 x Front Panel Audio header (AAFP); 1 x SPI TPM header (14-1pin); 1 x 20-5 pin System Panel header; 1 x Thermal Sensor header; 1 x Thunderbolt header

Fan ve pompa bağlantıları

Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers

Güç bağlantıları

1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector

Görüntü çıkışları ve kullanım koşulları

1 x DisplayPort**; 1 x HDMI port***; *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.; ** Support 8K@60Hz as specified in DisplayPort 1.4.; *** Support 4K@60Hz as specified in HDMI 2.1.

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

Extreme Engine Digi+; - 5K Black Metallic Capacitors; ASUS Q-Design; - M.2 Q-Latch; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink backplate; - M.2 heatsink; ASUS EZ DIY; - BIOS FlashBack button; - BIOS FlashBack LED; - CPU Socket lever protector; - Clear CMOS button; - ProCool II; - Pre-mounted I/O shield; - SafeSlot; - SafeDIMM; AURA Sync; - AURA RGB header; - Addressable Gen 2 RGB headers

Kutu içeriği

Cables; 4 x SATA 6Gb/s cables; Miscellaneous; 1 x ASUS Wi-Fi moving antennas; 1 x Cable ties pack; 1 x M.2 Rubber Package; 1 x M.2 Q-Latch package; 1 x M.2 Q-Latch package for M.2 backplate; 1 x ROG key chain; 1 x ROG Strix stickers; 1 x ROG Strix thank you card; Installation Media; 1 x Support DVD; Documentation; 1 x User manual

Üreticinin ayrıntılı teknik bilgileri

Model: ROG STRIX Z690-G GAMING WIFI, CPU: Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 10 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types., Chipset: Z690, Memory: 4 x DIMM, Max. 128GB, DDR5 6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II *Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., Graphics: 1 x DisplayPort** 1 x HDMI port*** *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Support 8K@60Hz as specified in DisplayPort 1.4. *** Support 4K@60Hz as specified in HDMI 2.1., Expansion Slots: Intel 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) Intel Z690 Chipset** 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slot * Please check PCIe bifurcation table in support site. ** Supports Intel Optane Memory H Series on PCH-attached PCIe slot, Storage: Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel Z690 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 6 x SATA 6Gb/s ports *** * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. *** RAID configuration and optical disc drives are not supported on the SATA6G_E1-2 ports., Ethernet: 1 x Intel 2.5Gb Ethernet, Wireless & Bluetooth: Intel Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later., USB: Rear USB: Total 10 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover, Back Panel I/O Ports: 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button, Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt header, Special Features: Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - CPU Socket lever protector - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 RGB headers, Software Features: ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - 5-Way Optimization with AI Overclocking TPU EPU DIGI+ VRM Turbo app MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Rubber Package 1 x M.2 Q-Latch package 1 x M.2 Q-Latch package for M.2 backplate 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Installation Media 1 x Support DVD Documentation 1 x User manual

part Number

90MB19G0-M0AAY0
