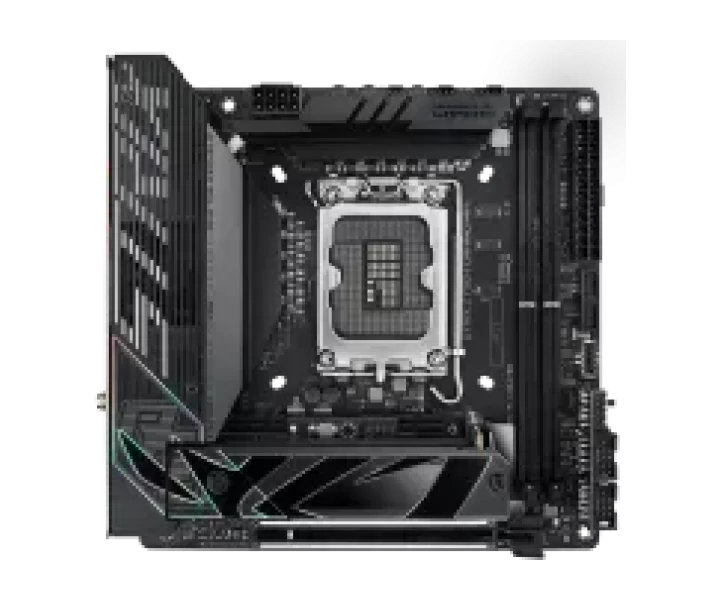

ROG STRIX Z790-I GAMING WIFI özellikleri ve fiyatları

ROG STRIX Z790-I GAMING WIFI teknik özellikleri

Model kodu

ROG STRIX Z790-I GAMING WIFI

İşlemci soketi

LGA1700

Anakart yonga seti

Intel Z790 Chipset

Anakart biçimi

Mini-ITX

RAM türü

DDR5

Uyumlu işlemciler

Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**; * Refer to www.asus.com for CPU support list.; ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Desteklenen bellek yapılandırmaları

2 x DIMM, Max. 96GB, DDR5; 7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/; 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile; (XMP); OptiMem II; * We recommend active airflow to ensure beter memory performance; * Supported memory types, data rate(Speed),; and number of DRAM modules vary depending on the CPU and memory configuration,; for more information refer to www.asus.com for memory support list.; * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

96 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

Intel 14th & 13th & 12th Gen Processors*; 1 x PCIe 5.0 x16 slot (supportsx16 or x8/x8 mode); * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.; A resolution support depends on processors'; or graphic cards' resolution.

PCIe şerit paylaşımı ve işlemci koşulları

Intel 14th & 13th & 12th Gen Processors*; 1 x PCIe 5.0 x16 slot (supportsx16 or x8/x8 mode); * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.; A resolution support depends on processors'; or graphic cards' resolution.

M.2 uyumluluğu ve şerit paylaşımı

Total supports 2 x M.2 slots and 2 x SATA; 6Gb/s ports; Intel 14th & 13th & 12th Gen Processors; M.2_1 slot (Key M), type 2280 (supports; PCIe 5.0 x4 mode// PCIe 4.0 x4 mode)***; M.2_2 slot (Key M), type 2242/2260/2280; (supports PCIe 4.0 x4 mode); 2 x SATA 6Gb/s ports****; *** M.2_1 comes from Intel Z790 Chipset; when switched to PCIe 4.0 x4 mode; **** Install ROG FPS-II Card to support 2 x; SATA 6Gb/s ports.; 2 x SATA 6Gb/s ports****; *AMD RAIDXpert2 Technology supports both; NVMe RAID 0/1 and SATA RAID 0/1.; **** Install ROG FPS-II Card to support 2 x; SATA 6Gb/s ports

RAID desteği

*AMD RAIDXpert2 Technology supports both; NVMe RAID 0/1 and SATA RAID 0/1.

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

2

USB bağlantısı

Rear USB (Total 9 ports); 2 x Thunderbolt 4 port(s) (2 x USB; Type-C); 1 x USB 3.2 Gen 2x2 port(s) (1 x USB; Type-C); 3 x USB 3.2 Gen 2 port(s) (3 x Type-A); 1 x USB 3.2 Gen 1 port(s) (1 x Type-A); 2 x USB 2.0 port(s) (2 x Type-A); Front USB (Total 3 ports); 1 x USB 3.2 Gen 2x2 connector supports 1; USB Type-C; 1 x USB 3.2 Gen 1 header(s) support(s) 2; additional USB 3.2 Gen 1 ports; ROG STRIX HIVE (Total 2 ports); 1 x USB 3.2 Gen 2 port ( 1 x USB Type-C); 1 x USB 2.0 port(s) (1 x Type-A); ROG FPS-II Card (Total 3 ports); 2 x USB 2.0 header(s) additional 3 USB 2.0; ports**

Kablolu ağ bağlantısı

1 x Intel 2.5Gb Ethernet; ASUS LANGuard

Wi-Fi

Wi-Fi 6E; 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax); Supports 2.4/5/6GHz frequency band*; Bluetooth v5.3; * WiFi 6E 6GHz regulatory may vary between; countries, and function will be ready in Windows 11 or later.

Ses çıkışı

ROG High Definition Audio CODEC ALC4050; - Supports: Jack-detection; - High quality 118 dB SNR stereo playback output and 94 dB SNR recording input; - Supports up to 32-Bit/384 kHz playback; Audio Features; - ROG Hyper-Grounding Technology; - ESS SABRE9260Q DAC; - Silver-plated audio jacks; - Optical S/PDIF out port & USB Type-C port with indepent power solution; *** All audio functions on ROG STRIX Z790-I GAMING WIFI are supported through the ROG STRIX HIVE.

Ses yongası

ROG High Definition Audio CODEC ALC4050

Arka panel bağlantıları

2 x Thunderbolt 4 USB Type-C port(s); 1 x USB 3.2 Gen 2x2 port(s) (1 x USB; Type-C); 3 x USB 3.2 Gen 2 port(s) (3 x Type-A); (supports ROG STRIX HIVE); 1 x USB 3.2 Gen 1 port(s) (1 x Type-A); 2 x USB 2.0 port(s) (2 x Type-A); 1 x HDMI port; 1 x Wi-Fi Module; 1 x Intel 2.5Gb Ethernet port; 1 x Clear CMOS button

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling related; 1 x 4-pin CPU Fan header(s); 1 x 4-pin AIO Pump header(s); 1 x 4-pin Chassis Fan header(s); Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 2 x M.2 slots (Key M); USB; 1 x USB 3.2 Gen 2x2 connector (support(s); USB Type-C ); 1 x USB 3.2 Gen 1 header(s) support(s) 2; additional USB 3.2 Gen 1 ports; Miscellaneous; 1 x Addressable Gen 2 header(s); 1 x Aura RGB header(s); 1 x Thermal Sensor header; 2 x USB Type-C connectors to Install ROG; FPS-II card; ROG FPS-II card; 2 x SATA 6Gb/s ports; 1 x CPU Over Voltage jumper; 1 x Thermal Sensor header; 1 x Front Panel header; 1 x Alternative PCIe Mode switch; 2 x USB 2.0 header(s) support(s) additional; 3 USB 2.0 ports

Fan ve pompa bağlantıları

Fan and Cooling related; 1 x 4-pin CPU Fan header(s); 1 x 4-pin AIO Pump header(s); 1 x 4-pin Chassis Fan header(s)

Güç bağlantıları

1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector

Görüntü çıkışları ve kullanım koşulları

1 x HDMI port***; 2 x Intel Thunderbolt 4 ports (USB; Type-C) support DisplayPort and Thunderbolt video outputs****; * Graphics specifications may vary between; CPU types. Please refer to www.intel.com for any updates.; *** Supports 4K@60Hz as specified in HDMI; 2.1.; **** VGA resolution support depends on; processors' or graphic cards' resolution.

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

Extreme Engine Digi+; - 5K Black Metallic Capacitors; ASUS Q-Design; - M.2 Q-Latch; - Q-DIMM; - Q-Slot; ASUS Thermal Solution; - M.2 heatsink backplate; - M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - Clear CMOS button; - CPU Socket lever protector; - ProCool II; - Pre-mounted I/O shield; - SafeSlot; - SafeDIMM; Aura Sync; - Aura RGB header(s); - Addressable Gen 2 header(s); ROG STRIX HIVE; 1 x USB Type-C connects to Motherboard; 1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C); 1 x USB 2.0 port(s) (1 x Type-A with BIOS; FlashBack); 1 x Headphone jack with Mic in; 1 x Mic in jack with Optical S/PDIF out; 1 x AI OC button; 1 x FlexKey button; 1 x BIOS FlashBack button; 1 x Volume Control Knob with Mute Button; Q-LED (CPU [red], DRAM [yellow], VGA; [white], Boot Device [yellow green])

Boyutlar

Mini-ITX Form Factor; 6.7 inch x 6.7 inch( 17cm x 17cm)

Kutu içeriği

Cables; 2 x SATA 6Gb/s cables; 1 x ROG USB2.0 splitter cable; 1 x Panel Cable; ROG FPS-II Card; 1 x ROG FPS-II Card; ROG STRIX HIVE; 1 x ROG STRIX HIVE; 1 x USB Type-C power connection cable; Additional Cooling Kit; 1 x Thermal pad for M.2; Miscellaneous; 1 x ASUS Wi-Fi moving antennas; 1 x Cable ties pack; 1 x Rubber Package(s) for M.2; 1 x Q-Latch package(s) for M.2; 1 x ROG key chain; 1 x ROG Strix stickers; 1 x ROG Strix thank you card; Installation Media; 1 x User guide

Üreticinin ayrıntılı teknik bilgileri

Model: ROG STRIX Z790-I GAMING WIFI, CPU: Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types., Chipset: Intel Z790 Chipset, Memory: 2 x DIMM, Max. 96GB, DDR5 7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II * We recommend active airflow to ensure beter memory performance * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function, Graphics: 1 x HDMI port*** 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs**** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. *** Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphic cards' resolution., Expansion Slots: Intel 14th & 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot (supportsx16 or x8/x8 mode) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. A resolution support depends on processors' or graphic cards' resolution., Storage: Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports Intel 14th & 13th & 12th Gen Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode// PCIe 4.0 x4 mode)*** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 2 x SATA 6Gb/s ports**** *** M.2_1 comes from Intel Z790 Chipset when switched to PCIe 4.0 x4 mode **** Install ROG FPS-II Card to support 2 x SATA 6Gb/s ports. 2 x SATA 6Gb/s ports**** *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1 and SATA RAID 0/1. **** Install ROG FPS-II Card to support 2 x SATA 6Gb/s ports, Ethernet: 1 x Intel 2.5Gb Ethernet ASUS LANGuard, Wireless & Bluetooth: Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.3 * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later., USB: Rear USB (Total 9 ports) 2 x Thunderbolt 4 port(s) (2 x USB Type-C) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 3 x USB 3.2 Gen 2 port(s) (3 x Type-A) 1 x USB 3.2 Gen 1 port(s) (1 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) Front USB (Total 3 ports) 1 x USB 3.2 Gen 2x2 connector supports 1 USB Type-C 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports ROG STRIX HIVE (Total 2 ports) 1 x USB 3.2 Gen 2 port ( 1 x USB Type-C) 1 x USB 2.0 port(s) (1 x Type-A) ROG FPS-II Card (Total 3 ports) 2 x USB 2.0 header(s) additional 3 USB 2.0 ports**, Audio: ROG High Definition Audio CODEC ALC4050 - Supports: Jack-detection - High quality 118 dB SNR stereo playback output and 94 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - ROG Hyper-Grounding Technology - ESS SABRE9260Q DAC - Silver-plated audio jacks - Optical S/PDIF out port & USB Type-C port with indepent power solution *** All audio functions on ROG STRIX Z790-I GAMING WIFI are supported through the ROG STRIX HIVE., Back Panel I/O Ports: 2 x Thunderbolt 4 USB Type-C port(s) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 3 x USB 3.2 Gen 2 port(s) (3 x Type-A) (supports ROG STRIX HIVE) 1 x USB 3.2 Gen 1 port(s) (1 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 1 x Clear CMOS button, Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin AIO Pump header(s) 1 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) USB 1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C ) 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports Miscellaneous 1 x Addressable Gen 2 header(s) 1 x Aura RGB header(s) 1 x Thermal Sensor header 2 x USB Type-C connectors to Install ROG FPS-II card ROG FPS-II card 2 x SATA 6Gb/s ports 1 x CPU Over Voltage jumper 1 x Thermal Sensor header 1 x Front Panel header 1 x Alternative PCIe Mode switch 2 x USB 2.0 header(s) support(s) additional 3 USB 2.0 ports, Special Features: Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Aura RGB header(s) - Addressable Gen 2 header(s) ROG STRIX HIVE 1 x USB Type-C connects to Motherboard 1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C) 1 x USB 2.0 port(s) (1 x Type-A with BIOS FlashBack) 1 x Headphone jack with Mic in 1 x Mic in jack with Optical S/PDIF out 1 x AI OC button 1 x FlexKey button 1 x BIOS FlashBack button 1 x Volume Control Knob with Mute Button Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Software Features: ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS Sound Unbound ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - Easy Optimization with AI Overclocking - TPU - DIGI+ VRM - Turbo app - PC Cleaner MyAsus Norton 360 for Gamers WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 2 x SATA 6Gb/s cables 1 x ROG USB2.0 splitter cable 1 x Panel Cable ROG FPS-II Card 1 x ROG FPS-II Card ROG STRIX HIVE 1 x ROG STRIX HIVE 1 x USB Type-C power connection cable Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x Rubber Package(s) for M.2 1 x Q-Latch package(s) for M.2 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Installation Media 1 x User guide, Operating System: Windows 11, Windows 10 64-bit, Form Factor: Mini-ITX Form Factor 6.7 inch x 6.7 inch( 17cm x 17cm)

part Number

90MB1CM0-M0AAY0
