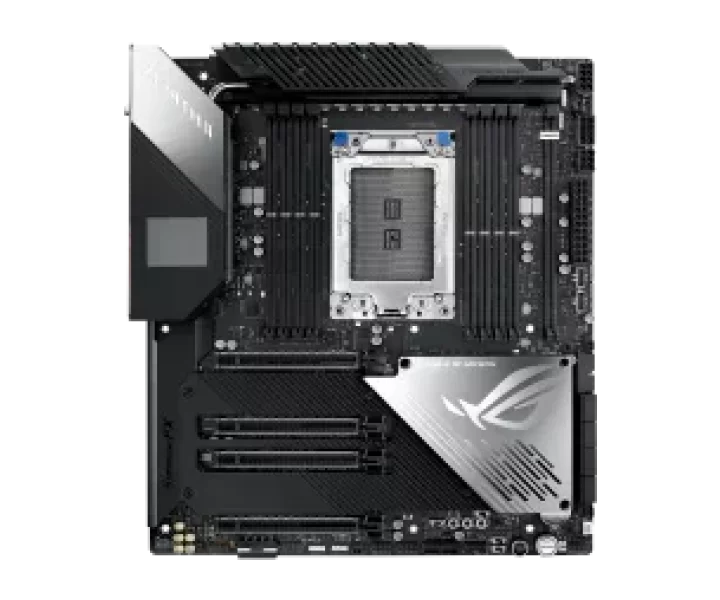

ROG Zenith II Extreme Alpha özellikleri ve fiyatları

ROG Zenith II Extreme Alpha teknik özellikleri

Model kodu

ROG Zenith II Extreme Alpha

İşlemci soketi

STRX4

Anakart yonga seti

AMD TRX40

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Supports CPU up to 64 cores; Build in AMD Socket sTRX4 for 3rd Gen AMD Ryzen Threadripper Series Desktop Processors; * Refer to www.asus.com for CPU support list

Desteklenen bellek yapılandırmaları

8 x DIMM, Max. 256GB, DDR4 4733(O.C)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3400(O.C.)/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory; AMD Ryzen Threadripper Processors; Quad Channel Memory Architecture; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

RAM yuvası sayısı

8

Desteklenen en yüksek RAM

256 GB

PCIe yuvaları

3rd Gen AMD Ryzen Threadripper Series Desktop processors; 4 x PCIe 4.0 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8)

PCIe şerit paylaşımı ve işlemci koşulları

3rd Gen AMD Ryzen Threadripper Series Desktop processors; 4 x PCIe 4.0 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8)

M.2 uyumluluğu ve şerit paylaşımı

3rd Gen AMD Ryzen Threadripper Series Desktop processors :; 1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode); 2 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4 mode)*1; 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4/x2 mode)*2; AMD TRX40 chipset :; ASMedia SATA 6Gb/s controller :; Support Raid 0, 1, 10; 4 x SATA 6Gb/s port(s),

RAID desteği

Support Raid 0, 1, 10

Ses çıkışı

- High quality120dBSNR stereo playback output108dBSNR recording input; - ESS ESS9018Q2C; - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking; - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.; ROG SupremeFX8-Channel High Definition Audio CODEC S1220; - Impedance sense for front and rear headphone outputs; Audio Feature :; - SupremeFX Shielding Technology; - Sonic Studio III + Sonic Studio Virtual Mixer; - DTS Sound Unbound; - Sonic Radar III

Ses yongası

ROG SupremeFX8-Channel High Definition Audio CODEC S1220

BIOS özellikleri

2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 7.1

Diğer anakart özellikleri

- BIOS FlashBack Button; - Ai Charger+; LiveDash OLED 1.77”; - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED); MemOK! II; ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :; - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App; Gamer´s Guardian:; - DRAM Overcurrent Protection; - Digi+ VRM; - SafeSlot; - ESD Guards on LAN, Audio,and USB ports; AURA :; - Aura Lighting Control; - Aura RGB Strip Headers; - Addressable Gen 2 Header; ASUS Exclusive Features :; - AI Suite 3; - Pre-mounted I/O Shield; - ASUS EZ Flash 3; - ASUS C.P.R.(CPU Parameter Recall); - Clear CMOS Button; ASUS Q-Design :; - ASUS Q-Code; - ASUS Q-Slot; - ASUS Q-DIMM; - ASUS Q-Connector; Digi+VRM; Armoury Crate

Boyutlar

12.2 inch x 10.9 inch ( 31 cm x 27.7 cm ); Extended ATX Form Factor

Kutu içeriği

1 x Wi-Fi moving antenna; 1 x ROG Multi-Bit screwdriver; 6 x SATA 6Gb/s cable(s); 1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header); 1 x Fan Extension Card II power cable; 1 x Fan Extension Card II NODE connector cable; 1 x Fan Extension Card II screw package; 1 x ROG DIMM.2 with heatsink; 1 x M.2 Pad for ROG DIMM.2; User´s manual; 1 x ROG logo plate sticker; 1 x ROG big sticker; 1 x Thermistor cable(s); 1 x ROG coaster(s); 2 x ROG weave SATA 6G cable; 1 x ROG Thank you card

Üreticinin ayrıntılı teknik bilgileri

Model: ROG Zenith II Extreme Alpha, CPU: Supports CPU up to 64 cores Build in AMD Socket sTRX4 for 3rd Gen AMD Ryzen Threadripper Series Desktop Processors * Refer to www.asus.com for CPU support list, Chipset: AMD TRX40, Memory: 8 x DIMM, Max. 256GB, DDR4 4733(O.C)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3400(O.C.)/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory AMD Ryzen Threadripper Processors Quad Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., Multi-GPU Support: Supports NVIDIA 3-Way SLI Technology Supports AMD 3-Way CrossFireX Technology, Expansion Slots: 3rd Gen AMD Ryzen Threadripper Series Desktop processors 4 x PCIe 4.0 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8), Storage: 3rd Gen AMD Ryzen Threadripper Series Desktop processors : 1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 2 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4 mode)*1 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4/x2 mode)*2 AMD TRX40 chipset : ASMedia SATA 6Gb/s controller : Support Raid 0, 1, 10 4 x SATA 6Gb/s port(s),, LAN: Aquantia AQC-107 10G Intel I211-AT, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard ROG GameFirst V Technology, Wireless Data Network: Supports up to 2.4Gbps max data rate Wi-Fi 802.11 ax, Bluetooth 5.0 Supports 2x2 MU-MIMO Intel Wi-Fi 6 AX200 Supports dual band frequency 2.4/5 GHz, Bluetooth: Bluetooth 5.0, Audio: - High quality120dBSNR stereo playback output108dBSNR recording input - ESS ESS9018Q2C - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. ROG SupremeFX8-Channel High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs Audio Feature : - SupremeFX Shielding Technology - Sonic Studio III + Sonic Studio Virtual Mixer - DTS Sound Unbound - Sonic Radar III, USB Ports: 3rd Gen AMD Ryzen Threadripper Processors : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red) AMD TRX40 chipset : 2 x USB 3.2 Gen 2 front panel connector port(s) 3 x USB 3.2 Gen 2 port(s) (3 at back panel, red, 2 x Type-A+1 x Type-C) 3 x USB 2.0 port(s) 8 x USB 3.2 Gen 1 port(s) (4 at back panel, blue) ASMedia USB 3.2 Gen2x2 controller : 1 x USB 3.2 Gen 2x2 (up to 20Gbps) port(s) (1 at back panel, , Type-C) ASMedia USB 3.2 Gen 1 controller :, ROG Exclusive Features: USB BIOS FlashBack - Infineon TDA21472 Power Stage - FlexKey Button Clear CMOS button ProbeIt ROG DIMM.2 module with heatsink ROG Aluminum heatsink cover ROG CPU-Z ROG Aura Extreme Engine Digi+ : - 10K Black Metallic Capacitors ROG Extreme OC kit : - OptiMem III - Safe Boot button - Slow Mode - LN2 Mode UEFI BIOS features : - ROG SSD Secure Erase - Graphic Card Information Preview ROG Patented Pre-mounted I/O Shield ROG Exclusive Software - Mem Tweakit - RAMCache III - GameFirst V, Special Features: - BIOS FlashBack Button - Ai Charger+ LiveDash OLED 1.77” - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED) MemOK! II ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App Gamer´s Guardian: - DRAM Overcurrent Protection - Digi+ VRM - SafeSlot - ESD Guards on LAN, Audio,and USB ports AURA : - Aura Lighting Control - Aura RGB Strip Headers - Addressable Gen 2 Header ASUS Exclusive Features : - AI Suite 3 - Pre-mounted I/O Shield - ASUS EZ Flash 3 - ASUS C.P.R.(CPU Parameter Recall) - Clear CMOS Button ASUS Q-Design : - ASUS Q-Code - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Digi+VRM Armoury Crate, Back I/O Ports: 4 x USB 3.2 Gen 1 blue 5 x USB 3.2 Gen 2 (red) (3 x Type-A+1 x Type-C) 1 x USB BIOS FlashBack Button(s) 1 x USB 3.2 Gen 2x2 (up to 20Gbps) ports (Type-C) 5 x LED-illuminated audio jacks 1 x Aquantia AQC-107 10G LAN port 1 x LAN (RJ45) port(s) 1 x Optical S/PDIF out 1 x Clear CMOS button(s), Internal I/O Ports: 1 x M.2_3 cold storage Switch 1 x Chipset Fan Header 1 x VRM_HS_FAN Header 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices(support PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices(support PCIe 4.0 x4/x2 mode) 2 x USB 3.2 Gen 2 front panel connector 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 1 x FlexKey button 1 x FS Mode switch 1 x M.2 socket pre-installed with a Wi-Fi/Bluetooth module 2 x W_PUMP+ connector 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s) 2 x Aura RGB Strip Header 1 x WB_SENSOR 1 x 6-pin EATX 12V Power connector 2 x 8-pin EATX 12V Power connectors 1 x 4-pin EZ_PLUG Power connector(s) 7 x ProbeIt Measurement Points 1 x BIOS Switch button(s) 1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110) 1 x RSVD Switch 2 x Addressable Gen 2 header(s) 1 x TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x H_AMP fan connector 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Node Connector(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Speaker connector 1 x Start button, Accessories: 1 x Wi-Fi moving antenna 1 x ROG Multi-Bit screwdriver 6 x SATA 6Gb/s cable(s) 1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header) 1 x Fan Extension Card II power cable 1 x Fan Extension Card II NODE connector cable 1 x Fan Extension Card II screw package 1 x ROG DIMM.2 with heatsink 1 x M.2 Pad for ROG DIMM.2 User´s manual 1 x ROG logo plate sticker 1 x ROG big sticker 1 x Thermistor cable(s) 1 x ROG coaster(s) 2 x ROG weave SATA 6G cable 1 x ROG Thank you card, BIOS: 2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 7.1, Manageability: WOL , PXE, Operating System: Windows 10 64-bit, Form Factor: 12.2 inch x 10.9 inch ( 31 cm x 27.7 cm ) Extended ATX Form Factor, Note: * When the M.2_2 on board is operating in PCIe mode,PCIE x16_4 will running at x4 mode ** When the M.2_3 on board is operating in PCIe x4 mode, SATA6G_E1-E4 will be disabled *** Supports PCIE RAID configurations via onboard M.2 storages.

part Number

90MB14K0-M0AAY0
