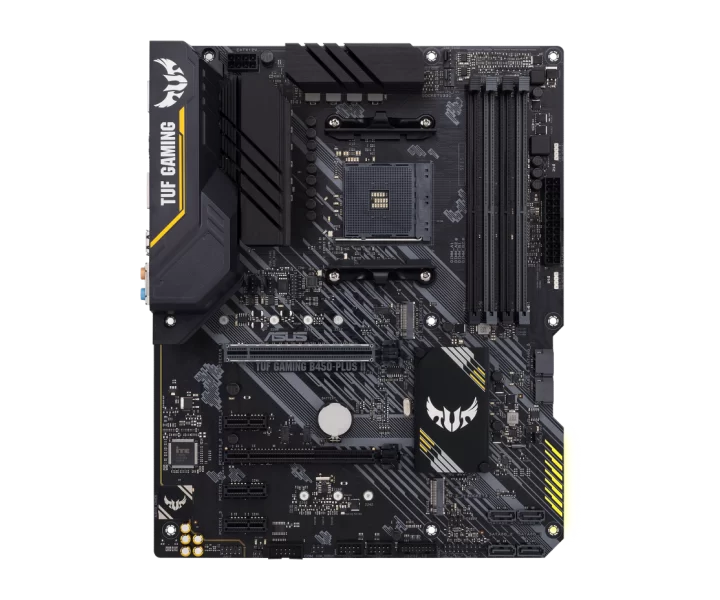

TUF GAMING B450-PLUS II özellikleri ve fiyatları

TUF GAMING B450-PLUS II teknik özellikleri

Model kodu

TUF GAMING B450-PLUS II

İşlemci soketi

AM4

Anakart yonga seti

AMD B450

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics Processors; * Refer to www.asus.com for CPU support list.

Desteklenen bellek yapılandırmaları

3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors; 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3533(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory; Dual Channel Memory Architecture; ECC Memory (ECC mode) support varies by CPU.; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).; * The maximum memory frequency supported varies by processor.

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

3rd/2nd/1st Gen AMD Ryzen Processors; 1 x PCIe 3.0/2.0 x16 (x16 mode); 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors; 1 x PCIe 3.0/2.0 x16 (x8 mode); AMD Athlon with Radeon Vega Graphics Processors; 1 x PCIe 3.0/2.0 x16 (x4 mode); AMD B450 chipset; 1 x PCIe 2.0 x16 (max at x4 mode) * 1; 3 x PCIe 2.0 x1

PCIe şerit paylaşımı ve işlemci koşulları

3rd/2nd/1st Gen AMD Ryzen Processors; 1 x PCIe 3.0/2.0 x16 (x16 mode); 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors; 1 x PCIe 3.0/2.0 x16 (x8 mode); AMD Athlon with Radeon Vega Graphics Processors; 1 x PCIe 3.0/2.0 x16 (x4 mode); AMD B450 chipset; 1 x PCIe 2.0 x16 (max at x4 mode) * 1; 3 x PCIe 2.0 x1

M.2 uyumluluğu ve şerit paylaşımı

3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics :; 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)* 2; AMD Athlon with Radeon Vega Graphics Processors :; 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)* 2; 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors :; 2 x SATA 6Gb/s port(s); Support Raid 0, 1, 10; AMD B450 chipset :; 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE 2.0 x4)* 3; 4 x SATA 6Gb/s port(s); Support Raid 0, 1, 10

RAID desteği

Support Raid 0, 1, 10; Support Raid 0, 1, 10

Ses çıkışı

Realtek ALC S1200A 8-Channel High Definition Audio CODEC * 4; Audio Feature :; - Exclusive DTS Custom for GAMING Headsets.; - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference; - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals; - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity; - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.

Ses yongası

Realtek ALC S1200A 8-Channel High Definition Audio CODEC * 4

Ses kanalı yapılandırması

8 kanal

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

ASUS TUF PROTECTION; - ASUS SafeSlot: Protect your graphics card Investment; - ASUS Overvoltage Protection: World-class circuit-protecting power design; - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!; - ASUS DIGI+ VRM: Precision control for stable power; - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!; AURA :; - Aura Lighting Control; - Aura RGB Strip Headers; ASUS Exclusive Features :; - AI Suite 3; - Ai Charger; - Turbo LAN; - PC Cleaner; - Armoury Crate; - BIOS FlashBack Button; ASUS Quiet Thermal Solution :; - Stylish Fanless Design Heat-sink solution & MOS Heatsink; - ASUS Fan Xpert 4 Core; ASUS EZ DIY :; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS USB BIOS FlashBack; - ASUS UEFI BIOS EZ Mode; ASUS Q-Design :; - ASUS Q-Slot; - ASUS Q-DIMM; Armoury Crate

Boyutlar

ATX Form Factor; 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Kutu içeriği

User´s manual; I/O Shield; 2 x SATA 6Gb/s cable(s); 1 x M.2 Screw Package; 1 x Supporting DVD; 1 x TUF GAMING Sticker; 1 x TUF Certification card(s)

Üreticinin ayrıntılı teknik bilgileri

Model: TUF GAMING B450-PLUS II, CPU: AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics Processors * Refer to www.asus.com for CPU support list., Chipset: AMD B450, Memory: 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3533(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor., Graphic: Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors 1 x DisplayPort 1.2 1 x HDMI port *Graphics specifications may vary between CPU types., Multi-GPU Support: Supports AMD CrossFireX Technology, Expansion Slots: 3rd/2nd/1st Gen AMD Ryzen Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD Athlon with Radeon Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x4 mode) AMD B450 chipset 1 x PCIe 2.0 x16 (max at x4 mode) * 1 3 x PCIe 2.0 x1, Storage: 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)* 2 AMD Athlon with Radeon Vega Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)* 2 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors : 2 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 AMD B450 chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE 2.0 x4)* 3 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 10, LAN: Realtek L8200A TUF LANGuard, Audio: Realtek ALC S1200A 8-Channel High Definition Audio CODEC * 4 Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality., USB Ports: Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x USB Type-C )(1 x Type-A +0 x ) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s), Special Features: ASUS TUF PROTECTION - ASUS SafeSlot: Protect your graphics card Investment - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: Precision control for stable power - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! AURA : - Aura Lighting Control - Aura RGB Strip Headers ASUS Exclusive Features : - AI Suite 3 - Ai Charger - Turbo LAN - PC Cleaner - Armoury Crate - BIOS FlashBack Button ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert 4 Core ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS USB BIOS FlashBack - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM Armoury Crate, Software Features: ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - AI Noise-Canceling Microphone AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 4 core - EZ update - PC Cleaner TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode, ASUS Special Features: ASUS TUF PROTECTION - ASUS DIGI+ VRM - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - TUF LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED AURA Sync - AURA RGB headers, Back I/O Ports: 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (1 x USB Type-C +1 x Type-A) 4 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 5 x Audio jack(s) 1 x BIOS FlashBack Button(s), Internal I/O Ports: 1 x CPU Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 2 x Aura RGB Strip Header 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 2.0 x 4 mode) 1 x SPI TPM header 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header, Accessories: User´s manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x TUF GAMING Sticker 1 x TUF Certification card(s), BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Operating System: Windows 10 64-bit Windows 7 64-bit * 5, Form Factor: ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ), Note: *1 PCIE x16_2 will be unavailable when installing M.2 PCIE SSD in M.2_2 socket. PCIe x16_2 will run x2 when installing devices in PCIe x1_1 or PCIe x1_2 slots. PCIE x16_2 will run x4 when no devices installing in PCIE x1_1 and PCIE x1_2 slots. *2 The M.2 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed. *3 PCIe x16_2, PCIe x1_1, and PCIe x1_2 slots will be unavailable when installing M.2 PCIe SSD in M.2_2 socket. *4 Use a chassis with HD audio module in the front panel to support an 8-channel audio output. *5 Install an AMD Ryzen 2nd Generatione or Ryzen 1st Generation Processors to support Windows 7 64-bit operating system.
