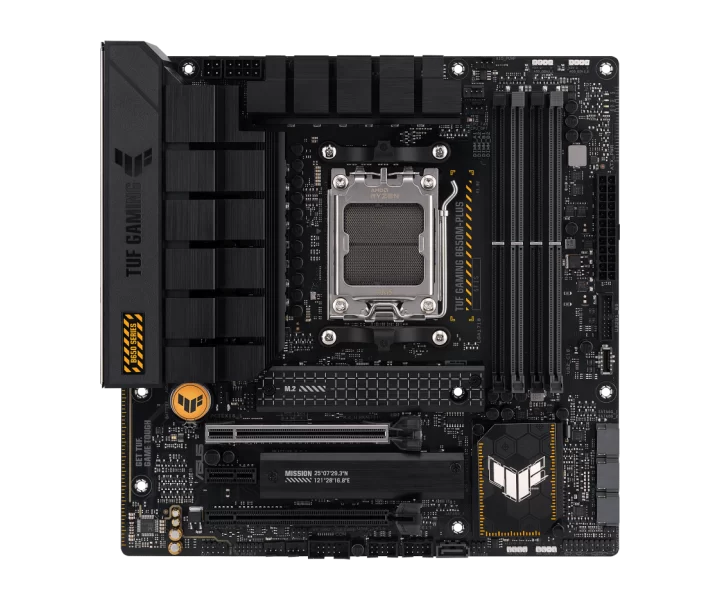

TUF GAMING B650M-PLUS özellikleri ve fiyatları

TUF GAMING B650M-PLUS teknik özellikleri

Model kodu

TUF GAMING B650M-PLUS

İşlemci soketi

AM5

Anakart yonga seti

AMD B650

Anakart biçimi

micro-ATX

RAM türü

DDR5

Uyumlu işlemciler

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*; * Refer to www.asus.com for CPU support list.

Desteklenen bellek yapılandırmaları

4 x DIMM, Max. 256GB, DDR5; 7600+OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports AMD EXTended Profiles for Overclocking (EXPO); OptiMem II; * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.; ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

256 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

AMD Ryzen 9000 & 7000 Series Desktop Processors*; 1 x PCIe 4.0 x16 slot; AMD Ryzen 8000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**; AMD B650 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x1 slot; * Please check PCIe bifurcation table in support site ( https://www.asus.com/support/FAQ/1037507/ ).; ** Specifications vary by CPU types.; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

PCIe şerit paylaşımı ve işlemci koşulları

AMD Ryzen 9000 & 7000 Series Desktop Processors*; 1 x PCIe 4.0 x16 slot; AMD Ryzen 8000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**; AMD B650 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x1 slot; * Please check PCIe bifurcation table in support site ( https://www.asus.com/support/FAQ/1037507/ ).; ** Specifications vary by CPU types.; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

M.2 uyumluluğu ve şerit paylaşımı

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*; AMD Ryzen 9000 & 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); AMD Ryzen 8000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**; AMD B650 Chipset; 4 x SATA 6Gb/s ports; *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.; ** Specifications vary by CPU types.

RAID desteği

*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

4

USB bağlantısı

Rear USB (Total 8 ports); 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C ); 2 x USB 3.2 Gen 2 ports (2 x Type-A); 1 x USB 3.2 Gen 1 port (1 x Type-A); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 7 ports); 1 x USB 3.2 Gen 1 connector (supports USB Type-C ); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Kablolu ağ bağlantısı

1 x Realtek 2.5Gb Ethernet; TUF LANGuard

Ses çıkışı

Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers

Ses yongası

Realtek 7.1 Surround Sound High Definition Audio CODEC

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C ); 2 x USB 3.2 Gen 2 ports (2 x Type-A); 1 x USB 3.2 Gen 1 port (1 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x DisplayPort; 1 x HDMI port; 1 x Realtek 2.5Gb Ethernet port; 5 x Audio jacks; 1 x BIOS FlashBack button

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; Storage related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB Gen 1 connector (supports USB Type-C ); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Thunderbolt (USB4 ) header

Fan ve pompa bağlantıları

Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers

Güç bağlantıları

1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector

Görüntü çıkışları ve kullanım koşulları

1 x DisplayPort*; 1 x HDMI port**; * Supports max. 8K@60Hz as specified in DisplayPort 1.4.; ** Supports 4K@60Hz as specified in HDMI 2.1.; *** VGA resolution support depends on processors' or graphic cards' resolution.

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

ASUS TUF PROTECTION; - DIGI+ VRM (- Digital power design with DrMOS); - Enhanced DRAM Overcurrent Protection; - ESD Guards; - TUF LANGuard; - Overvoltage Protection; - SafeSlot Core+; - Stainless-Steel Back I/O; ASUS Q-Design; - M.2 Q-Latch; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack button; - BIOS FlashBack LED; - ProCool; - Pre-mounted I/O shield; - SafeDIMM; Aura Sync; - Aura RGB header; - Addressable Gen 2 headers

Boyutlar

micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Üreticinin ayrıntılı teknik bilgileri

Model: TUF GAMING B650M-PLUS, News & Updates: Socket AM5, CPU: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list., Chipset: AMD B650, Memory: 4 x DIMM, Max. 256GB, DDR5 7600+OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function, Graphics: 1 x DisplayPort* 1 x HDMI port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution., Expansion Slots: AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot * Please check PCIe bifurcation table in support site ( https://www.asus.com/support/FAQ/1037507/ ). ** Specifications vary by CPU types. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals., Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. ** Specifications vary by CPU types., Ethernet: 1 x Realtek 2.5Gb Ethernet TUF LANGuard, USB: Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C ) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers, Back Panel I/O Ports: 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C ) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button, Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB Gen 1 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4 ) header, Special Features: ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers, Software Features: ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 -TurboV EVO -DIGI+ VRM -PC Cleaner TUF GAMING CPU-Z DTS Audio Processing Norton Anti-virus software (Free Trialversion) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, Operating System: Windows 11, Windows 10 64-bit, Form Factor: micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
