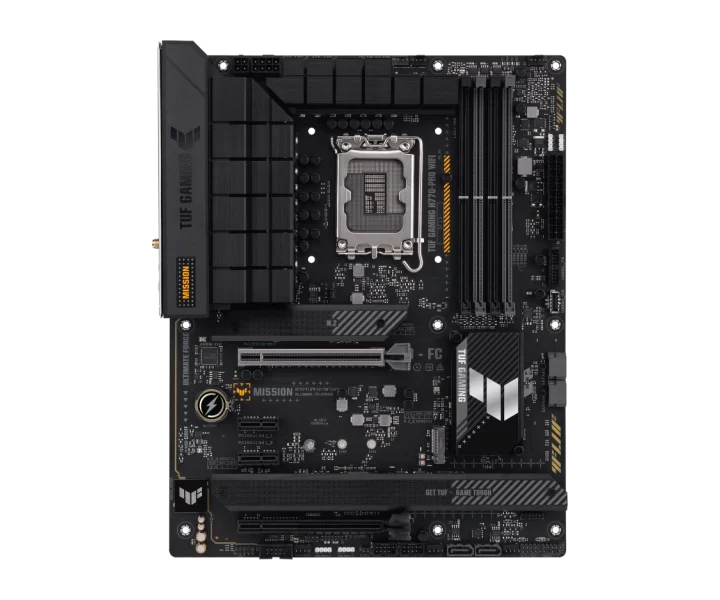

TUF GAMING H770-PRO WIFI özellikleri ve fiyatları

TUF GAMING H770-PRO WIFI teknik özellikleri

Model kodu

TUF GAMING H770-PRO WIFI

İşlemci soketi

LGA1700

Anakart yonga seti

Intel H770 Chipset

Anakart biçimi

ATX

RAM türü

DDR5

Uyumlu işlemciler

Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors*; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**; * Refer to www.asus.com for CPU support list.; ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Desteklenen bellek yapılandırmaları

4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II; * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/; * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

192 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

Intel Core Processors (14th & 13th & 12th Gen)*; 1 x PCIe 5.0 x16 slot; Intel H770 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 2 x PCIe 3.0 x1 slots; * Please check the PCIe bifurcation table at the support site ( https://www.asus.com/support/FAQ/1037507/ ).; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

PCIe şerit paylaşımı ve işlemci koşulları

Intel Core Processors (14th & 13th & 12th Gen)*; 1 x PCIe 5.0 x16 slot; Intel H770 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 2 x PCIe 3.0 x1 slots; * Please check the PCIe bifurcation table at the support site ( https://www.asus.com/support/FAQ/1037507/ ).; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

M.2 uyumluluğu ve şerit paylaşımı

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel Core Processors (14th & 13th & 12th Gen); M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4); Intel H770 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes); 4 x SATA 6Gb/s ports; * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.; Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel Core Processors (14th & 13th & 12th Gen); M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4); Intel H770 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes); 4 x SATA 6Gb/s ports; * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

RAID desteği

* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.; * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

Depolama için M.2 yuvası sayısı

4

SATA bağlantı sayısı

4

USB bağlantısı

Rear USB (Total 7 ports); 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C ); 2 x USB 3.2 Gen 2 ports (2 x Type-A); 4 x USB 3.2 Gen 1 ports (4 x Type-A); Front USB (Total 7 ports); 1 x USB 3.2 Gen 1 connector (supports USB Type-C ); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Kablolu ağ bağlantısı

1 x Intel 2.5Gb Ethernet; TUF LANGuard

Wi-Fi

Wi-Fi 6; 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax); Supports 2.4/5GHz frequency band; Bluetooth v5.2*; *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Ses çıkışı

Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Rear optical S/PDIF out port; - Premium audio capacitors; - Dedicated audio PCB layers; - Audio Cover

Ses yongası

Realtek 7.1 Surround Sound High Definition Audio CODEC

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C ); 2 x USB 3.2 Gen 2 ports (2 x Type-A); 4 x USB 3.2 Gen 1 ports (4 x Type-A); 1 x DisplayPort; 1 x HDMI port; 1 x Wi-Fi Module; 1 x Intel 2.5Gb Ethernet port; 5 x Audio jacks; 1 x Optical S/PDIF out port

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; Storage related; 4 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 1 connector (supports USB Type-C ); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Thunderbolt (USB4 ) header

Fan ve pompa bağlantıları

Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers

Güç bağlantıları

1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector

Görüntü çıkışları ve kullanım koşulları

1 x DisplayPort**; 1 x HDMI port***; * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.; ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.; *** Supports 4K@60Hz as specified in HDMI 2.1.

BIOS özellikleri

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

ASUS TUF PROTECTION; - DIGI+ VRM (- Digital power design with DrMOS); - ESD Guards; - TUF LANGuard; - Overvoltage Protection; - Safeslot Core+; - Stainless-Steel Back I/O; ASUS Q-Design; - M.2 Q-Latch; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - CPU Socket lever protector; - ProCool; - Pre-mounted I/O shield; - SafeSlot Core+; - SafeDIMM; AURA Sync; - Aura RGB header; - Addressable Gen 2 headers

Boyutlar

ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Kutu içeriği

Cables; 2 x SATA 6Gb/s cables; Miscellaneous; 1 x ASUS Wi-Fi moving antenna; 1 x TUF GAMING sticker; 2 x M.2 Rubber Packages; 2 x Screw package for M.2 SSD; Documentation; 1 x TUF Certification card; 1 x User guide

Üreticinin ayrıntılı teknik bilgileri

Model: TUF GAMING H770-PRO WIFI, News & Updates:, CPU: Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types., Chipset: Intel H770 Chipset, Memory: 4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function., Graphics: 1 x DisplayPort** 1 x HDMI port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1., Expansion Slots: Intel Core Processors (14th & 13th & 12th Gen)* 1 x PCIe 5.0 x16 slot Intel H770 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots * Please check the PCIe bifurcation table at the support site ( https://www.asus.com/support/FAQ/1037507/ ). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals., Storage: Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) Intel H770 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) Intel H770 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10., Ethernet: 1 x Intel 2.5Gb Ethernet TUF LANGuard, Wireless & Bluetooth: Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2* *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications., USB: Rear USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C ) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio Cover, Back Panel I/O Ports: 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C ) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port, Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4 ) header, Special Features: ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot Core+ - SafeDIMM AURA Sync - Aura RGB header - Addressable Gen 2 headers, Software Features: ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode, BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x TUF GAMING sticker 2 x M.2 Rubber Packages 2 x Screw package for M.2 SSD Documentation 1 x TUF Certification card 1 x User guide, Operating System: Windows 11, Windows 10 64-bit, Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
