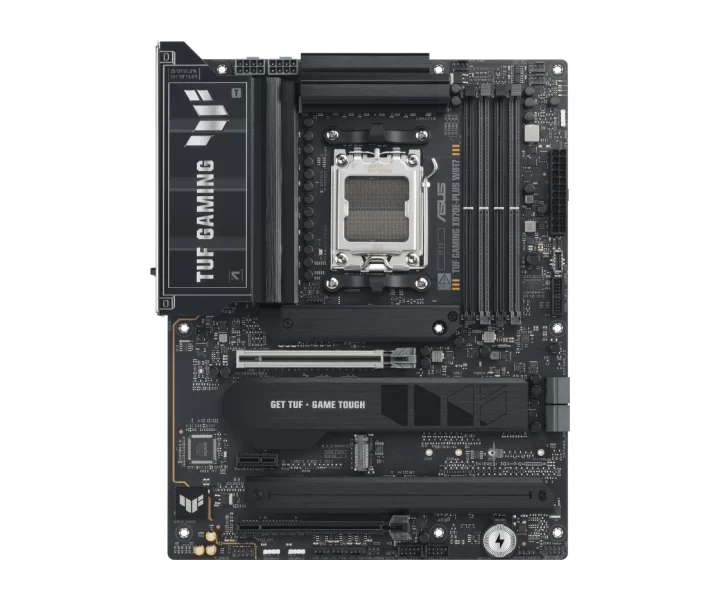

TUF GAMING X870E-PLUS WIFI7 özellikleri ve fiyatları

TUF GAMING X870E-PLUS WIFI7 teknik özellikleri

Model kodu

TUF GAMING X870E-PLUS WIFI7

İşlemci soketi

AM5

Anakart yonga seti

AMD X870E Chipset

Anakart biçimi

ATX

RAM türü

DDR5

Uyumlu işlemciler

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*; * Refer to https://www.asus.com/support/download-center/ for CPU support list.

Desteklenen bellek yapılandırmaları

4 x DIMM slots, max. 256GB, DDR5; Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*"; Dual channel memory architecture; DIMM Fit; Supports AMD Extended Profiles for Overclocking (EXPO); ASUS Enhanced Memory Profile (AEMP); * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.; * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

256 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

AMD Ryzen 9000 & 7000 Series Desktop Processors*; 1 x PCIe 5.0 x16 slot**; AMD Ryzen 8000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode); AMD X870E Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 3.0 x1 Slot; * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).; ** Specifications vary by CPU types.; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

PCIe şerit paylaşımı ve işlemci koşulları

AMD Ryzen 9000 & 7000 Series Desktop Processors*; 1 x PCIe 5.0 x16 slot**; AMD Ryzen 8000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode); AMD X870E Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 3.0 x1 Slot; * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).; ** Specifications vary by CPU types.; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

M.2 uyumluluğu ve şerit paylaşımı

Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports; AMD Ryzen 9000 & 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)*; M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**; AMD Ryzen 8000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_2 slot is not supported; AMD X870 Chipset; M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports; AMD RAIDXpert2 Technology; Ryzen 9000 Series Processors: RAID 0/1/5/10; Ryzen 8000 Series Processors: RAID 0/1; Ryzen 7000 Series Processors: RAID 0/1/10; * Specifications vary by CPU types.; ** M.2_2 slot shares bandwidth with PCIex16(G5)_1 When M.2_2 runs at PCIe x4 mode, PCIex16(G5)_1 will run x8.

RAID desteği

AMD RAIDXpert2 Technology; Ryzen 9000 Series Processors: RAID 0/1/5/10; Ryzen 8000 Series Processors: RAID 0/1; Ryzen 7000 Series Processors: RAID 0/1/10

Depolama için M.2 yuvası sayısı

4

SATA bağlantı sayısı

4

USB bağlantısı

Rear USB (Total 13 ports); 2 x USB4 (40Gbps) ports (2 x USB Type-C)*; 3 x USB 10Gbps ports (3 x Type-A); 4 x USB 5Gbps ports (4 x Type-A); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 7 ports); 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge)**; 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; * USB Type-C power delivery output: max. 5V/3A; ** USB Type-C power delivery output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A.

Kablolu ağ bağlantısı

1 x Realtek 2.5Gb Ethernet; TUF LANGuard

Wi-Fi

Wi-Fi 7*; 2x2 Wi-Fi 7 (802.11be); Supports 2.4/5/6GHz frequency band**; Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate; Bluetooth v5.4***; * Wi-Fi features may vary depending on the operating system.; For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.; ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.; *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Ses çıkışı

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC; - Impedance sense for front and rear headphone outputs; - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in); - Supports up to 32-Bit/192 kHz playback*"; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; - Audio cover; - Unique de-pop circuit; * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Ses yongası

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

2 x USB4 (40Gbps) ports (2 x USB Type-C); 3 x USB 10Gbps ports (3 x Type-A); 4 x USB 5Gbps ports (4 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x HDMI port; 1 x Wi-Fi module; 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks; 1 x BIOS FlashBack button

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V CPU Power connectors; Storage Related; 4 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Clear CMOS header; 1 x Chassis Intrusion header; 1 x Front Panel Audio header (F_AUDIO); 1 x 10-1 pin Front System Panel header; 1 x Thermal Sensor header

Fan ve pompa bağlantıları

Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers

Güç bağlantıları

1 x 24-pin Main Power connector; 2 x 8-pin +12V CPU Power connectors

Görüntü çıkışları ve kullanım koşulları

1 x HDMI port**; 2 x USB4 (40Gbps) ports support USB Type-C display outputs***; * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.; ** Supports 4K@60Hz as specified in HDMI 2.1.; *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.; *** VGA resolution support depends on processors' or graphic cards' resolution.

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

ASUS TUF PROTECTION; - DIGI+ VRM (- Digital power design with SPS); - ESD Guards; - TUF LANGuard; - Overvoltage protection; - SafeSlot; - Stainless-steel back I/O; ASUS Q-Design; - M.2 Q-Latch; - Q-Release Slim (with PCIe SafeSlot); - Q-Antenna; - Q-Dashboard; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsinks; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack button; - BIOS FlashBack LED; - ProCool; - Pre-mounted I/O shield; - SafeDIMM; Aura Sync; - Addressable Gen 2 headers; Front Panel USB 20Gbps with PD Fast Charge Support; - Support: up to 30W fast charging and USB Wattage Watcher; - Output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A; - Compatible with PD3.0

Boyutlar

ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Kutu içeriği

Cables; 2 x SATA 6Gb/s cables; Miscellaneous; 1 x ASUS WiFi Q-Antenna; 2 x M.2 rubber packages; 1 x Screw package for M.2 SSD; 1 x TUF GAMING sticker; Documentation; 1 x Quick start guide

Üreticinin ayrıntılı teknik bilgileri

Model: TUF GAMING X870E-PLUS WIFI7, News & Updates: Socket AM5, Please visit our GLOBAL website to check and download the latest updates., CPU: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list., Chipset: AMD X870E Chipset, Memory: 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*" Dual channel memory architecture DIMM Fit Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function., Graphics: 1 x HDMI port** 2 x USB4 (40Gbps) ports support USB Type-C display outputs*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a. *** VGA resolution support depends on processors' or graphic cards' resolution., Expansion Slots: AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot** AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD X870E Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 Slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** Specifications vary by CPU types. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals., Storage: Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)* M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)** AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot is not supported AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 * Specifications vary by CPU types. ** M.2_2 slot shares bandwidth with PCIex16(G5)_1 When M.2_2 runs at PCIe x4 mode, PCIex16(G5)_1 will run x8., Ethernet: 1 x Realtek 2.5Gb Ethernet TUF LANGuard, Wireless & Bluetooth: Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate Bluetooth v5.4*** * Wi-Fi features may vary depending on the operating system. For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications., USB: Rear USB (Total 13 ports) 2 x USB4 (40Gbps) ports (2 x USB Type-C)* 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge)** 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A ** USB Type-C power delivery output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A., Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio., Back Panel I/O Ports: 2 x USB4 (40Gbps) ports (2 x USB Type-C) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button, Internal I/O Connectors: Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header, Special Features: ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with SPS) - ESD Guards - TUF LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Addressable Gen 2 headers Front Panel USB 20Gbps with PD Fast Charge Support - Support: up to 30W fast charging and USB Wattage Watcher - Output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A - Compatible with PD3.0, Software Features: ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) ASUS AI Advisor ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 2 x M.2 rubber packages 1 x Screw package for M.2 SSD 1 x TUF GAMING sticker Documentation 1 x Quick start guide, Operating System: Windows 11, Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
