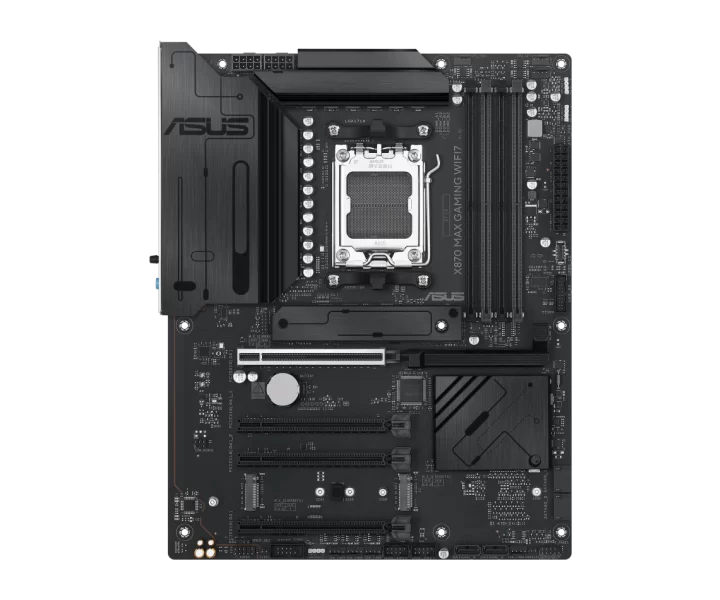

X870 MAX GAMING WIFI7 özellikleri ve fiyatları

X870 MAX GAMING WIFI7 teknik özellikleri

Model kodu

X870 MAX GAMING WIFI7

İşlemci soketi

AM5

Anakart yonga seti

AMD X870 Chipset

Anakart biçimi

ATX

RAM türü

DDR5

Uyumlu işlemciler

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*; * Refer to https://www.asus.com/support/download-center/ for CPU support list.

Desteklenen bellek yapılandırmaları

4 x DIMM slots, max. 256GB, DDR5; Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors; ECC and Non-ECC, Un-buffered DIMM*; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO ); ASUS Enhanced Memory Profile (AEMP); * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/ . Adjustments will be made based on the specifications of mass-produced memory products available on the market.; * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

256 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

AMD Ryzen 9000 & 7000 Series Desktop Processors*; 1 x PCIe 5.0 x16 slot (supports x16 mode); AMD Ryzen 8000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**; AMD X870 Chipset; 2 x PCIe 4.0 x16 slots (support x1 mode); 1 x PCIe 3.0 x16 slot (supports x1 mode)***; * Please check the PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ).; ** Specifications vary by CPU types.; *** PCIEX16(G3) slot shares bandwidth with SATA6G_3 and SATA6G_4 ports. Both SATA ports will be disabled when PCIEX16(G3) slot is running. You can enter the BIOS to adjust the default Settings as required.; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

PCIe şerit paylaşımı ve işlemci koşulları

AMD Ryzen 9000 & 7000 Series Desktop Processors*; 1 x PCIe 5.0 x16 slot (supports x16 mode); AMD Ryzen 8000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**; AMD X870 Chipset; 2 x PCIe 4.0 x16 slots (support x1 mode); 1 x PCIe 3.0 x16 slot (supports x1 mode)***; * Please check the PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ).; ** Specifications vary by CPU types.; *** PCIEX16(G3) slot shares bandwidth with SATA6G_3 and SATA6G_4 ports. Both SATA ports will be disabled when PCIEX16(G3) slot is running. You can enter the BIOS to adjust the default Settings as required.; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

M.2 uyumluluğu ve şerit paylaşımı

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*; AMD Ryzen 9000 & 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); AMD Ryzen 8000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**; AMD X870 Chipset; M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports; * 2 x USB4 (40Gbps) ports share bandwidth with M.2_2 slot. The M.2_2 slot will be disabled when either of the two USB4 (40Gbps) ports is running. You can enter the BIOS to adjust the default Settings as required.; * The PCIEX16(G3) slot shares bandwidth with the SATA6G_3 and SATA6G_4 ports. Both SATA ports will be disabled when the PCIEX16(G3) slot is running. You can enter the BIOS to adjust the default Settings as required.; ** Specifications vary by CPU types.

Depolama için M.2 yuvası sayısı

3

SATA bağlantı sayısı

4

USB bağlantısı

Rear USB (Total 10 ports); 2 x USB4 (40Gbps) ports (2 x USB Type-C ); 1 x USB 10Gbps port (1 x Type-A); 3 x USB 5Gbps ports (3 x Type-A); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 7 ports); 1 x USB 20Gbps connector (supports USB Type-C ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; * USB Type-C power delivery output: max. 5V/3A

Kablolu ağ bağlantısı

1 x Realtek 2.5Gb Ethernet; ASUS LANGuard

Wi-Fi

Wi-Fi 7*; 2x2 Wi-Fi 7 (802.11be); Supports 2.4/5/6GHz frequency band**; Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.; Bluetooth v5.4***; * Wi-Fi features may vary depending on the operating system.; For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.; For Windows 10, only Wi-Fi 6 is supported.; ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.; *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Ses çıkışı

Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Ses yongası

Realtek 7.1 Surround Sound High Definition Audio CODEC*

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

2 x USB4 (40Gbps) ports (2 x USB Type-C ); 1 x USB 10Gbps port (1 x Type-A); 3 x USB 5Gbps ports (3 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x HDMI port; 1 x Wi-Fi module; 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks; 1 x BIOS FlashBack button

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V CPU Power connectors; Storage Related; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 20Gbps connector (supports USB Type-C ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable RGB Gen 2 headers; 1 x Clear CMOS header; 1 x Chassis Intrusion header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1 pin); 1 x 10-1 pin System Panel header

Fan ve pompa bağlantıları

Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers

Güç bağlantıları

1 x 24-pin Main Power connector; 2 x 8-pin +12V CPU Power connectors

Görüntü çıkışları ve kullanım koşulları

1 x HDMI port**; 2 x USB4 (40Gbps) ports support USB Type-C display outputs***; * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.; ** Supports 4K@60Hz as specified in HDMI 2.1.; *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.; *** VGA resolution support depends on processors' or graphic cards' resolution.

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

ASUS 5X PROTECTION III; - DIGI+ VRM (- Digital power design with DrMOS); - LANGuard; - Overvoltage protection; - SafeSlot; - Stainless-steel back I/O; ASUS Q-Design; - PCIe Slot Q-Release; - Q-Antenna; - Q-Dashboard; - Q-DIMM; - Q-LED Core; - Q-Slot; ASUS Thermal Solution; - Flexible M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack button; - BIOS FlashBack LED; - ProCool; - Pre-mounted I/O shield; - SafeSlot; Aura Sync; - Addressable RGB Gen 2 headers

Boyutlar

ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Kutu içeriği

Cables; 2 x SATA 6Gb/s cables; Miscellaneous; 1 x ASUS WiFi Q-Antenna; 1 x M.2 rubber package; 1 x Screw package for M.2 SSD; Documentation; 1 x Quick start guide

Üreticinin ayrıntılı teknik bilgileri

Model: X870 MAX GAMING WIFI7, News & Updates: Socket AM5, Please visit our GLOBAL website to check and download the latest updates., CPU: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list., Chipset: AMD X870 Chipset, Memory: 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO ) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/ . Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function., Graphics: 1 x HDMI port** 2 x USB4 (40Gbps) ports support USB Type-C display outputs*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a. *** VGA resolution support depends on processors' or graphic cards' resolution., Expansion Slots: AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD X870 Chipset 2 x PCIe 4.0 x16 slots (support x1 mode) 1 x PCIe 3.0 x16 slot (supports x1 mode)*** * Please check the PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ). ** Specifications vary by CPU types. *** PCIEX16(G3) slot shares bandwidth with SATA6G_3 and SATA6G_4 ports. Both SATA ports will be disabled when PCIEX16(G3) slot is running. You can enter the BIOS to adjust the default Settings as required. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals., Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)** AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * 2 x USB4 (40Gbps) ports share bandwidth with M.2_2 slot. The M.2_2 slot will be disabled when either of the two USB4 (40Gbps) ports is running. You can enter the BIOS to adjust the default Settings as required. * The PCIEX16(G3) slot shares bandwidth with the SATA6G_3 and SATA6G_4 ports. Both SATA ports will be disabled when the PCIEX16(G3) slot is running. You can enter the BIOS to adjust the default Settings as required. ** Specifications vary by CPU types., RAID Support: AMD RAIDXpert2 Technology* Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 * Specifications vary by CPU types., Ethernet: 1 x Realtek 2.5Gb Ethernet ASUS LANGuard, Wireless & Bluetooth: Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4*** * Wi-Fi features may vary depending on the operating system. For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications., USB: Rear USB (Total 10 ports) 2 x USB4 (40Gbps) ports (2 x USB Type-C ) 1 x USB 10Gbps port (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A, Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output., Back Panel I/O Ports: 2 x USB4 (40Gbps) ports (2 x USB Type-C ) 1 x USB 10Gbps port (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button, Internal I/O Connectors: Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header, Special Features: ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeSlot Aura Sync - Addressable RGB Gen 2 headers, Software Features: ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 with AI Cooling II ASUS AI Advisor ASUS DriverHub ASUS GlideX TurboV Core ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x M.2 rubber package 1 x Screw package for M.2 SSD Documentation 1 x Quick start guide, Operating System: Windows 11, Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
