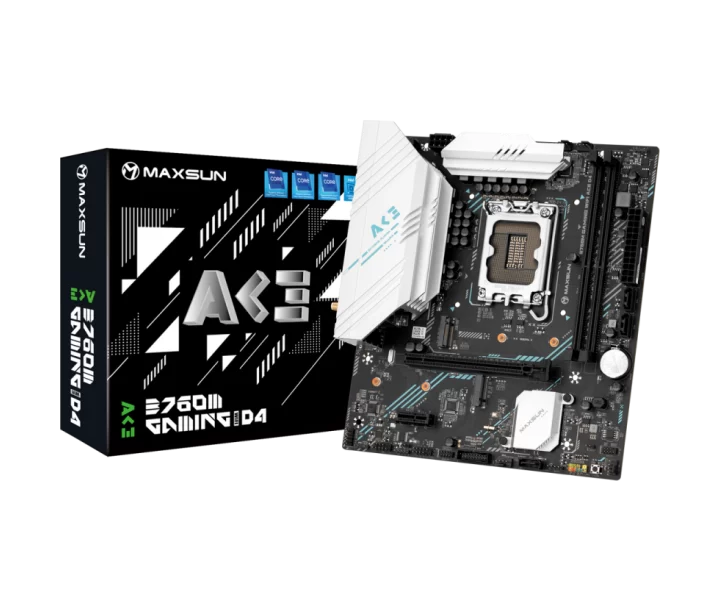

MS-B760M GAMING WIFI ACE D4 özellikleri ve fiyatları

MS-B760M GAMING WIFI ACE D4 teknik özellikleri

Model kodu

MS-B760M GAMING WIFI ACE D4

İşlemci soketi

LGA1700

Uyumlu işlemciler

Support for LGA1700 slots The 12th/13th/4th Gen processors TDP: 150W(8+1+1)

Anakart yonga seti

INTEL B760 High-speed chipset

Anakart biçimi

Micro-ATX

RAM türü

DDR4

Desteklenen bellek yapılandırmaları

2x DIMM DDR4 memory slots Maximum support in total is 64GB Support to 3200 MHz/OC + memory frequency

Bellek hızı ve uyumluluk koşulları

2x DIMM DDR4 memory slots Maximum support in total is 64GB Support to 3200 MHz/OC + memory frequency

RAM yuvası sayısı

2

PCIe yuvaları

1x PCIE X16 4.0 slot 1x PCIE X1 slot Support for AMD and NVIDIA and INTEL graphics cards Support for PCIE resizable bar technology

PCIe şerit paylaşımı ve işlemci koşulları

1x PCIE X16 4.0 slot 1x PCIE X1 slot Support for AMD and NVIDIA and INTEL graphics cards Support for PCIE resizable bar technology

storage Interfaces

2x M.2 4.0 slots (only support 2242 / 2280 PCIE X4 / X2 channel SSD supported only) 3x SATA 3.0 ports

M.2 uyumluluğu ve şerit paylaşımı

2x M.2 4.0 slots (only support 2242 / 2280 PCIE X4 / X2 channel SSD supported only) 3x SATA 3.0 ports

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

3

Kablolu ağ bağlantısı

Integrated REALTEK 8111 chip (10 / 100 / 1000Mbit) 1x onboard R]45 port Support network wakeup Support PXE no disk, UEFI no disk guide

USB bağlantısı

*On-board rear port: 4x USB 3.2 GEN 1 ports, On-board pins:1X set(2)USB2.0 pins,1X set(2) USB3.2 GEN 1 pins

Ses çıkışı

Integrated REALTEK ALC 897 sound chip

Üreticinin ayrıntılı teknik bilgileri

CHIPSET: INTEL B760 High-speed chipset, CPU: Support for LGA1700 slots The 12th/13th/4th Gen processors TDP: 150W(8+1+1), MEMORY: 2x DIMM DDR4 memory slots Maximum support in total is 64GB Support to 3200 MHz/OC + memory frequency, EXPANSION SLOT: 1x PCIE X16 4.0 slot 1x PCIE X1 slot Support for AMD and NVIDIA and INTEL graphics cards Support for PCIE resizable bar technology, STORAGE: 2x M.2 4.0 slots (only support 2242 / 2280 PCIE X4 / X2 channel SSD supported only) 3x SATA 3.0 ports, USB: *On-board rear port: 4x USB 3.2 GEN 1 ports, On-board pins:1X set(2)USB2.0 pins,1X set(2) USB3.2 GEN 1 pins, NETWORK: Integrated REALTEK 8111 chip (10 / 100 / 1000Mbit) 1x onboard R]45 port Support network wakeup Support PXE no disk, UEFI no disk guide, AUDIO: Integrated REALTEK ALC 897 sound chip, INSIDE BOARD SOCKET: 1x 24-PIN motherboard ATX power supply 1x 8-PIN motherboard ATX 12V power supply port, 12V input, 2x sets of system fan pins and 1x group of CPU fan pins、 1x group of PUMP fan pinslx group chassis front control panel pin (F PANEL), OPERATING SYSTEM: Support for Windows 10 64bit, Windows 11 64bit Support for Ubuntu 64bit, FORM FACTOR: Micro ATX 230mm x 205mm
