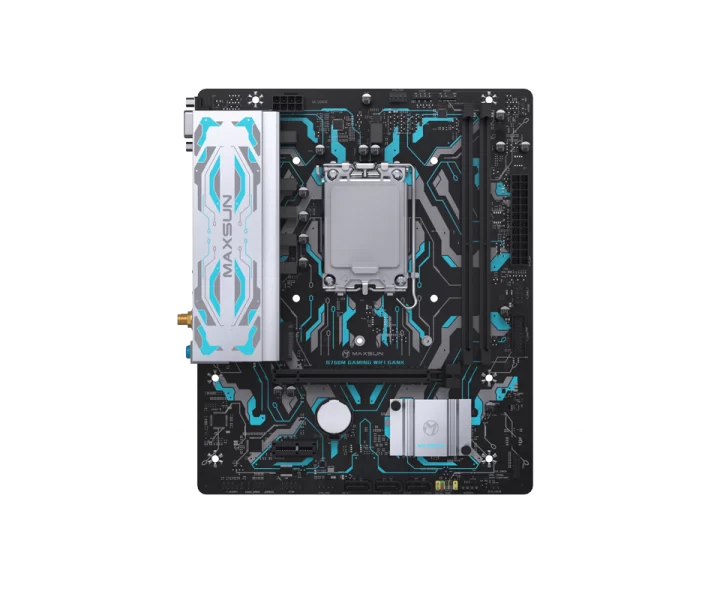

MS-B760M GAMING WIFI GANK V2 özellikleri ve fiyatları

MS-B760M GAMING WIFI GANK V2 teknik özellikleri

Model kodu

MS-B760M GAMING WIFI GANK V2

İşlemci soketi

LGA1700

Uyumlu işlemciler

Support for LGA1700 slots The 12th ,13th and14t generation processors TDP: 75W

Anakart yonga seti

INTEL B760 High-speed chipset

Anakart biçimi

Micro-ATX

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

2x DIMM DDR5 memory slots Maximum support in total is 96GB Support for dual-channel memory technology Support for 4800/5200/5600/OC + memory frequency Supports Intel®XMP Technology

Bellek hızı ve uyumluluk koşulları

2x DIMM DDR5 memory slots Maximum support in total is 96GB Support for dual-channel memory technology Support for 4800/5200/5600/OC + memory frequency Supports Intel®XMP Technology

RAM yuvası sayısı

2

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

1x PCIE X16 4.0 slot 3.0 sl Support for AMD and NVIDIA and INTEL graphics cards Support for PCIE resizable bar technology(Requires CPU and GPU to support synchronous compatibility)

PCIe şerit paylaşımı ve işlemci koşulları

1x PCIE X16 4.0 slot 3.0 sl Support for AMD and NVIDIA and INTEL graphics cards Support for PCIE resizable bar technology(Requires CPU and GPU to support synchronous compatibility)

storage Interfaces

1x M.2 slots (2242 / 2280 PCIE X4 / X2 channel SSD supported only) 3x SATA 3.0 ports

M.2 uyumluluğu ve şerit paylaşımı

1x M.2 slots (2242 / 2280 PCIE X4 / X2 channel SSD supported only) 3x SATA 3.0 ports

Depolama için M.2 yuvası sayısı

1

SATA bağlantı sayısı

3

Kablolu ağ bağlantısı

Integrated REALTEK 8111H card chip (10 / 100 / 1000 / 2500Mbit) 1x onboard R]45 port Support network arousal Support PXE no disk, UEFI no disk guide Support for Bluetooth 5.2

USB bağlantısı

*On-board rear port: 2x USB 3.2 GEN 2 ports, 6x USB2.0 ports Plate insert: 1x group (2 double rows) U SB2.0 pins, 1x group (single row) USB2.0 pin, 1xgroup (2 rows) USB 3.2 GEN 1 pin, 1x TYPE C(USB 3.2 GEN 2X2) ports

Görüntü çıkışları ve kullanım koşulları

HDMI 1.4: 4096x2160 @30Hz (HDCP2.2) VGA: 1920x1080 @60Hz

Ses çıkışı

Integrated REALTEK ALC 897 sound chip

Üreticinin ayrıntılı teknik bilgileri

CHIPSET: INTEL B760 High-speed chipset, CPU: Support for LGA1700 slots The 12th ,13th and14t generation processors TDP: 75W, MEMORY: 2x DIMM DDR5 memory slots Maximum support in total is 96GB Support for dual-channel memory technology Support for 4800/5200/5600/OC + memory frequency Supports Intel®XMP Technology, EXPANSION SLOT: 1x PCIE X16 4.0 slot 3.0 sl Support for AMD and NVIDIA and INTEL graphics cards Support for PCIE resizable bar technology(Requires CPU and GPU to support synchronous compatibility), STORAGE: 1x M.2 slots (2242 / 2280 PCIE X4 / X2 channel SSD supported only) 3x SATA 3.0 ports, DISPLAY: HDMI 1.4: 4096x2160 @30Hz (HDCP2.2) VGA: 1920x1080 @60Hz, USB: *On-board rear port: 2x USB 3.2 GEN 2 ports, 6x USB2.0 ports Plate insert: 1x group (2 double rows) U SB2.0 pins, 1x group (single row) USB2.0 pin, 1xgroup (2 rows) USB 3.2 GEN 1 pin, 1x TYPE C(USB 3.2 GEN 2X2) ports, NETWORK: Integrated REALTEK 8111H card chip (10 / 100 / 1000 / 2500Mbit) 1x onboard R]45 port Support network arousal Support PXE no disk, UEFI no disk guide Support for Bluetooth 5.2, AUDIO: Integrated REALTEK ALC 897 sound chip, INSIDE BOARD SOCKET: 1x 24-PIN motherboard ATX power supply 1x 8-PIN motherboard ATX 12V power supply port, 12V input, 1x sets of system fan pins and 1x group of CPU fan pins、 1x group of PUMP fan pinslx group chassis front control panel pin (F PANEL) One 12V NRGB pin and two 5V ARGB pins, OPERATING SYSTEM: Support for Windows 10 64bit, Windows 11 64bit Support for Ubuntu 64bit, FORM FACTOR: Micro ATX 225mm x 195mm
