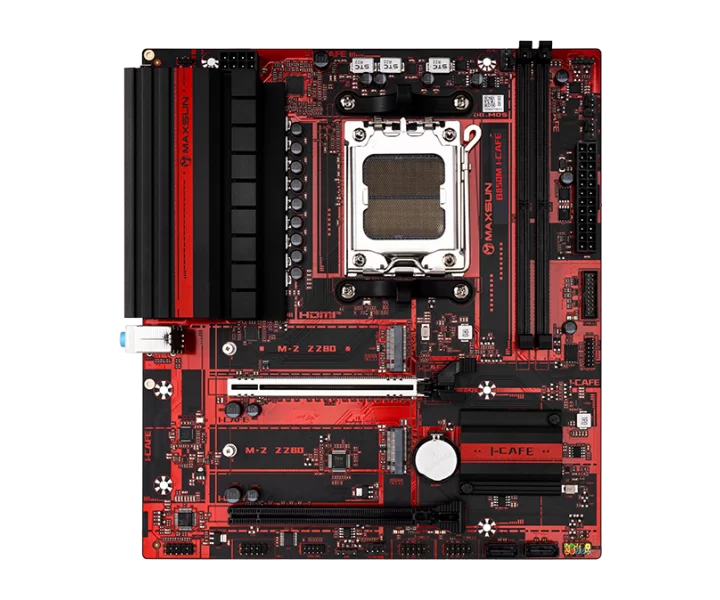

MS-B850M I-CAFE özellikleri ve fiyatları

MS-B850M I-CAFE teknik özellikleri

Model kodu

MS-B850M I-CAFE

İşlemci soketi

AM5

Uyumlu işlemciler

AMD® AM5 socket for AMD® Ryzen™ 7000, 8000 and 9000 Series processors

Anakart yonga seti

AMD® B850 high-speed chipset

Anakart biçimi

Micro-ATX

Boyutlar

Micro-ATX (245 × 210 mm)

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

2 × DDR5 DIMM slots, up to 128 GB Dual-channel memory architecture Supports memory overclocking Supported speeds: 4800 / 5200 / 5600 (OC) / 6000 (OC) / 6400 (OC) / 6800 (OC) / 7000 (OC) / 7200 (OC) / 7600 (OC) / 7800 (OC) / 8000 (OC) MHz

Bellek hızı ve uyumluluk koşulları

2 × DDR5 DIMM slots, up to 128 GB Dual-channel memory architecture Supports memory overclocking Supported speeds: 4800 / 5200 / 5600 (OC) / 6000 (OC) / 6400 (OC) / 6800 (OC) / 7000 (OC) / 7200 (OC) / 7600 (OC) / 7800 (OC) / 8000 (OC) MHz

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

1 × PCIe x16 slot, supports PCIe 5.0 x16 1 × PCIe x16 slot, supports PCIe 4.0 x4

PCIe şerit paylaşımı ve işlemci koşulları

1 × PCIe x16 slot, supports PCIe 5.0 x16 1 × PCIe x16 slot, supports PCIe 4.0 x4

storage Interfaces

1 × M.2 slot, supports PCIe 5.0 x4/x2 and 2280 devices 1 × M.2 slot, supports PCIe 4.0 x4/x2 and 2280 devices 2 × SATA 6Gb/s ports

M.2 uyumluluğu ve şerit paylaşımı

1 × M.2 slot, supports PCIe 5.0 x4/x2 and 2280 devices 1 × M.2 slot, supports PCIe 4.0 x4/x2 and 2280 devices 2 × SATA 6Gb/s ports

SATA bağlantı sayısı

2

Kablolu ağ bağlantısı

1 × Realtek® RTL8125D 2.5Gb Ethernet

USB bağlantısı

Front/internal (6 ports total): 1 × USB 5Gbps 19-pin header for 2 additional USB 5Gbps ports 2 × USB 2.0 9-pin headers for 4 additional USB 2.0 ports Rear (6 ports total): 4 × USB 5Gbps Type-A 2 × USB 2.0 Type-A

Güç bağlantıları

1 × 24-pin ATX power connector 1 × 8-pin +12V CPU power connector

Görüntü çıkışları ve kullanım koşulları

1 × HDMI™ 1.4, up to 4K at 30 Hz

Ses çıkışı

Realtek® ALC897 audio codec

Ses yongası

ALC897

Diğer anakart özellikleri

Distributed Debug LEDs MAXSUN Sync lighting control | CLR_CMOS button 1 × TPM header 1 × COM header

Üreticinin ayrıntılı teknik bilgileri

Model: MS-B850M I-CAFE, Form Factor: Micro-ATX (245 × 210 mm), CPU Support: AMD® AM5 socket for AMD® Ryzen™ 7000, 8000 and 9000 Series processors, Chipset: AMD® B850 high-speed chipset, Memory: 2 × DDR5 DIMM slots, up to 128 GB Dual-channel memory architecture Supports memory overclocking Supported speeds: 4800 / 5200 / 5600 (OC) / 6000 (OC) / 6400 (OC) / 6800 (OC) / 7000 (OC) / 7200 (OC) / 7600 (OC) / 7800 (OC) / 8000 (OC) MHz, Integrated Graphics: 1 × HDMI™ 1.4, up to 4K at 30 Hz, Expansion Slots: 1 × PCIe x16 slot, supports PCIe 5.0 x16 1 × PCIe x16 slot, supports PCIe 4.0 x4, Audio: Realtek® ALC897 audio codec, Networking: 1 × Realtek® RTL8125D 2.5Gb Ethernet, Storage: 1 × M.2 slot, supports PCIe 5.0 x4/x2 and 2280 devices 1 × M.2 slot, supports PCIe 4.0 x4/x2 and 2280 devices 2 × SATA 6Gb/s ports, USB: Front/internal (6 ports total): 1 × USB 5Gbps 19-pin header for 2 additional USB 5Gbps ports 2 × USB 2.0 9-pin headers for 4 additional USB 2.0 ports Rear (6 ports total): 4 × USB 5Gbps Type-A 2 × USB 2.0 Type-A, Power Connectors: 1 × 24-pin ATX power connector 1 × 8-pin +12V CPU power connector, Operating System: Windows® 11 Windows® 10 64-bit, Special Features: Distributed Debug LEDs MAXSUN Sync lighting control, Other: CLR_CMOS button 1 × TPM header 1 × COM header
