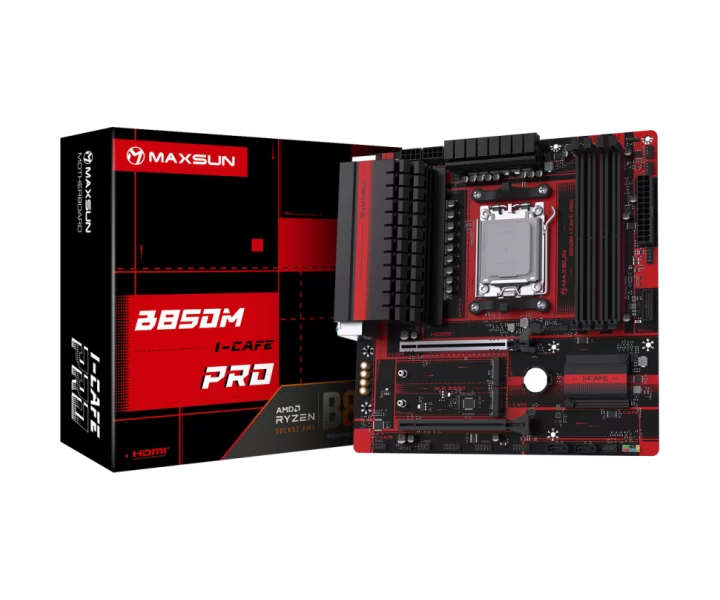

MS-B850M I-CAFE PRO özellikleri ve fiyatları

MS-B850M I-CAFE PRO teknik özellikleri

Model kodu

MS-B850M I-CAFE PRO

İşlemci soketi

AM5

Uyumlu işlemciler

AMD® AM5 socket Compatible with AMD® Ryzen™ 7000 / 8000 / 9000 Series processors

Anakart yonga seti

AMD® B850 chipset

Anakart biçimi

Micro-ATX

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

4 × DDR5 DIMM slots, up to 192GB Dual-channel memory architecture Supports memory overclocking Supported speeds: 4800 / 5200 / 5600(OC) / 6000(OC) / 6400(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7600(OC) / 7800(OC) / 8000(OC) MHz

Bellek hızı ve uyumluluk koşulları

4 × DDR5 DIMM slots, up to 192GB Dual-channel memory architecture Supports memory overclocking Supported speeds: 4800 / 5200 / 5600(OC) / 6000(OC) / 6400(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7600(OC) / 7800(OC) / 8000(OC) MHz

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

192 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

1 × PCIe x16 slot (PCIe 5.0 x16) 1 × PCIe x16 slot (PCIe 4.0 x4)

PCIe şerit paylaşımı ve işlemci koşulları

1 × PCIe x16 slot (PCIe 5.0 x16) 1 × PCIe x16 slot (PCIe 4.0 x4)

storage Interfaces

M.2_A (Key M): PCIe 5.0 x4/x2, supports 2280 M.2_B (Key M): PCIe 5.0 x4/x2, supports 2280 2 × SATA 6Gb/s ports

M.2 uyumluluğu ve şerit paylaşımı

M.2_A (Key M): PCIe 5.0 x4/x2, supports 2280 M.2_B (Key M): PCIe 5.0 x4/x2, supports 2280 2 × SATA 6Gb/s ports

SATA bağlantı sayısı

2

Kablolu ağ bağlantısı

1 × Realtek RTL8125D 2.5Gb Ethernet

USB bağlantısı

Onboard USB headers (Total: 6 ports): 1 × USB 3.2 Gen1 19-Pin header (supports 2 × USB 5Gbps) 2 × USB 2.0 9-Pin headers (each supports 2 × USB 2.0) Rear I/O (Total: 8 ports): 4 × USB 3.2 Gen1 Type-A (5Gbps) 4 × USB 2.0 Type-A

Dahili bağlantılar ve ön panel başlıkları

1 × 24-Pin ATX power 2 × 8-Pin +12V CPU power 1 × 4-Pin CPU_FAN header 1 × 4-Pin PUMP header 2 × 4-Pin SYS_FAN headers 1 × COM port header 1 × TPM header

Güç bağlantıları

1 × 24-Pin ATX power 2 × 8-Pin +12V CPU power 1 × 4-Pin CPU_FAN header 1 × 4-Pin PUMP header 2 × 4-Pin SYS_FAN headers 1 × COM port header 1 × TPM header

Görüntü çıkışları ve kullanım koşulları

Display function depends on CPU with integrated graphics (shared memory) 1 × HDMI™ 1.4 (up to 4K @ 30Hz) 1 × DisplayPort (up to 4K @ 60Hz)

Ses çıkışı

Realtek ALC897 HD Audio Codec

Ses yongası

Realtek ALC897

Diğer anakart özellikleri

CLR_CMOS quick button 2 × 5V 3-Pin ARGB headers

Üreticinin ayrıntılı teknik bilgileri

Form Factor: M-ATX (Micro-ATX) Size: 245mm × 245mm, CPU Support: AMD® AM5 socket Compatible with AMD® Ryzen™ 7000 / 8000 / 9000 Series processors, Chipset: AMD® B850 chipset, Memory: 4 × DDR5 DIMM slots, up to 192GB Dual-channel memory architecture Supports memory overclocking Supported speeds: 4800 / 5200 / 5600(OC) / 6000(OC) / 6400(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7600(OC) / 7800(OC) / 8000(OC) MHz, Graphics Output: Display function depends on CPU with integrated graphics (shared memory) 1 × HDMI™ 1.4 (up to 4K @ 30Hz) 1 × DisplayPort (up to 4K @ 60Hz), Expansion Slots: 1 × PCIe x16 slot (PCIe 5.0 x16) 1 × PCIe x16 slot (PCIe 4.0 x4), Storage Interfaces: M.2_A (Key M): PCIe 5.0 x4/x2, supports 2280 M.2_B (Key M): PCIe 5.0 x4/x2, supports 2280 2 × SATA 6Gb/s ports, Networking: 1 × Realtek RTL8125D 2.5Gb Ethernet, USB Ports: Onboard USB headers (Total: 6 ports): 1 × USB 3.2 Gen1 19-Pin header (supports 2 × USB 5Gbps) 2 × USB 2.0 9-Pin headers (each supports 2 × USB 2.0) Rear I/O (Total: 8 ports): 4 × USB 3.2 Gen1 Type-A (5Gbps) 4 × USB 2.0 Type-A, Audio: Realtek ALC897 HD Audio Codec, Internal Connectors: 1 × 24-Pin ATX power 2 × 8-Pin +12V CPU power 1 × 4-Pin CPU_FAN header 1 × 4-Pin PUMP header 2 × 4-Pin SYS_FAN headers 1 × COM port header 1 × TPM header, Operating System Support: Windows® 11 64-bit Windows® 10 64-bit, Special Features: CLR_CMOS quick button 2 × 5V 3-Pin ARGB headers

Güncel mağaza teklifleri

Son 48 saat içinde doğrulanmış, stokta mağaza teklifi yok. Eski fiyatlar güncel teklif olarak gösterilmez.
