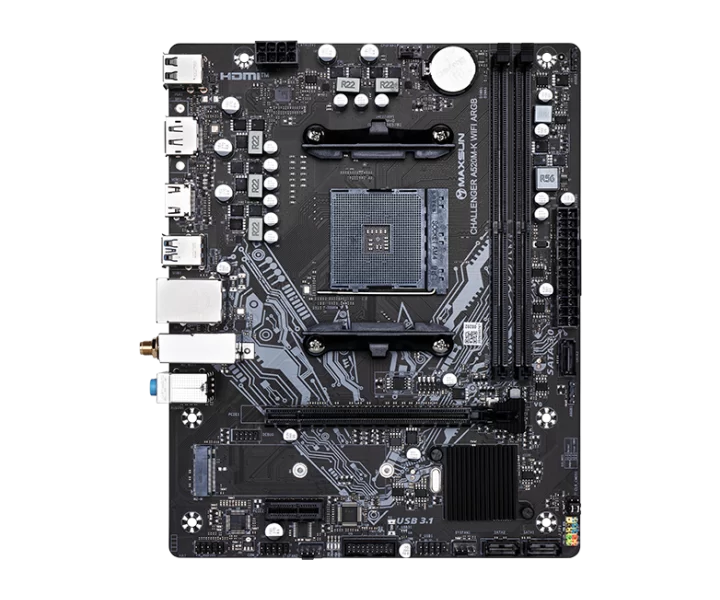

MS-Challenger A520M-K WIFI ARGB özellikleri ve fiyatları

MS-Challenger A520M-K WIFI ARGB teknik özellikleri

Model kodu

MS-Challenger A520M-K WIFI ARGB

İşlemci soketi

AM4

Uyumlu işlemciler

AMD® AM4 socket for AMD Ryzen™ 1000-5000 Series CPUs and APUs CPU support may require a specific BIOS version

Anakart yonga seti

AMD® A520 chipset

Anakart biçimi

Micro-ATX

Boyutlar

Micro-ATX (225 × 180 mm)

RAM türü

DDR4

Desteklenen bellek yapılandırmaları

2 × DDR4 DIMM slots, up to 64 GB Dual-channel memory architecture Supported speeds: 2133 / 2400 / 2666 / 2933 (OC) / 3200 (OC) / OC+ MHz

Bellek hızı ve uyumluluk koşulları

2 × DDR4 DIMM slots, up to 64 GB Dual-channel memory architecture Supported speeds: 2133 / 2400 / 2666 / 2933 (OC) / 3200 (OC) / OC+ MHz

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

64 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

From AMD Ryzen™ processor: 1 × PCIe x16 slot, supports PCIe 3.0 x16 From AMD A520 chipset: 1 × PCIe x1 slot, supports PCIe 3.0 x1

PCIe şerit paylaşımı ve işlemci koşulları

From AMD Ryzen™ processor: 1 × PCIe x16 slot, supports PCIe 3.0 x16 From AMD A520 chipset: 1 × PCIe x1 slot, supports PCIe 3.0 x1

storage Interfaces

1 × M.2 Key M slot, supports PCIe 3.0 x4/x2 and 2242/2280 devices 3 × SATA 6Gb/s ports

M.2 uyumluluğu ve şerit paylaşımı

1 × M.2 Key M slot, supports PCIe 3.0 x4/x2 and 2242/2280 devices 3 × SATA 6Gb/s ports

Depolama için M.2 yuvası sayısı

1

SATA bağlantı sayısı

3

Kablolu ağ bağlantısı

1 × Realtek® RTL8111M Gigabit Ethernet

Wi-Fi

Realtek® RTL8821CE wireless module Wi-Fi 5 Bluetooth® 4.2

Bluetooth sürümü

4.2

USB bağlantısı

Front/internal (4 ports total): 1 × USB 3.2 Gen 1 5Gbps header for 2 additional USB 3.2 Gen 1 ports 1 × USB 2.0 header for 2 additional USB 2.0 ports Rear (6 ports total): 2 × USB 3.2 Gen 1 5Gbps Type-A 4 × USB 2.0 Type-A

Dahili bağlantılar ve ön panel başlıkları

1 × front-panel COM header 1 × front-panel audio header 1 × 10-1-pin system panel header 1 × buzzer header

Güç bağlantıları

1 × 24-pin ATX power connector 1 × 8-pin +12V CPU power connector

Görüntü çıkışları ve kullanım koşulları

Available when using an APU with integrated graphics 1 × HDMI™ 1.4, up to 3840 × 2160 at 30 Hz 1 × DisplayPort 1.2, up to 3840 × 2160 at 60 Hz

Ses çıkışı

Realtek® ALC897 high-definition audio codec 3 × rear audio jacks

Ses yongası

ALC897

vrm

3+2-phase power design

Fan ve pompa bağlantıları

1 × 4-pin CPU fan header 2 × 4-pin system fan headers

Diğer anakart özellikleri

CPU / DDR / VGA / BOOT status indicators

Kutu içeriği

1 × SATA 6Gb/s data cable 1 × M.2 SSD screw kit 2 × Wi-Fi antennas 1 × product warranty card

Üreticinin ayrıntılı teknik bilgileri

Model: MS-Challenger A520M-K WIFI ARGB, Form Factor: Micro-ATX (225 × 180 mm), CPU Support: AMD® AM4 socket for AMD Ryzen™ 1000-5000 Series CPUs and APUs CPU support may require a specific BIOS version, Chipset: AMD® A520 chipset, Memory: 2 × DDR4 DIMM slots, up to 64 GB Dual-channel memory architecture Supported speeds: 2133 / 2400 / 2666 / 2933 (OC) / 3200 (OC) / OC+ MHz, Integrated Graphics: Available when using an APU with integrated graphics 1 × HDMI™ 1.4, up to 3840 × 2160 at 30 Hz 1 × DisplayPort 1.2, up to 3840 × 2160 at 60 Hz, Expansion Slots: From AMD Ryzen™ processor: 1 × PCIe x16 slot, supports PCIe 3.0 x16 From AMD A520 chipset: 1 × PCIe x1 slot, supports PCIe 3.0 x1, Storage: 1 × M.2 Key M slot, supports PCIe 3.0 x4/x2 and 2242/2280 devices 3 × SATA 6Gb/s ports, Networking: 1 × Realtek® RTL8111M Gigabit Ethernet, Wireless: Realtek® RTL8821CE wireless module Wi-Fi 5 Bluetooth® 4.2, USB: Front/internal (4 ports total): 1 × USB 3.2 Gen 1 5Gbps header for 2 additional USB 3.2 Gen 1 ports 1 × USB 2.0 header for 2 additional USB 2.0 ports Rear (6 ports total): 2 × USB 3.2 Gen 1 5Gbps Type-A 4 × USB 2.0 Type-A, Audio: Realtek® ALC897 high-definition audio codec 3 × rear audio jacks, Power Connectors: 1 × 24-pin ATX power connector 1 × 8-pin +12V CPU power connector, Fan Headers: 1 × 4-pin CPU fan header 2 × 4-pin system fan headers, Internal Connectors: 1 × front-panel COM header 1 × front-panel audio header 1 × 10-1-pin system panel header 1 × buzzer header, Operating System: Windows® 11 Windows® 10 64-bit, Power Design: 3+2-phase power design, Debug LEDs: CPU / DDR / VGA / BOOT status indicators, Package Contents: 1 × SATA 6Gb/s data cable 1 × M.2 SSD screw kit 2 × Wi-Fi antennas 1 × product warranty card
