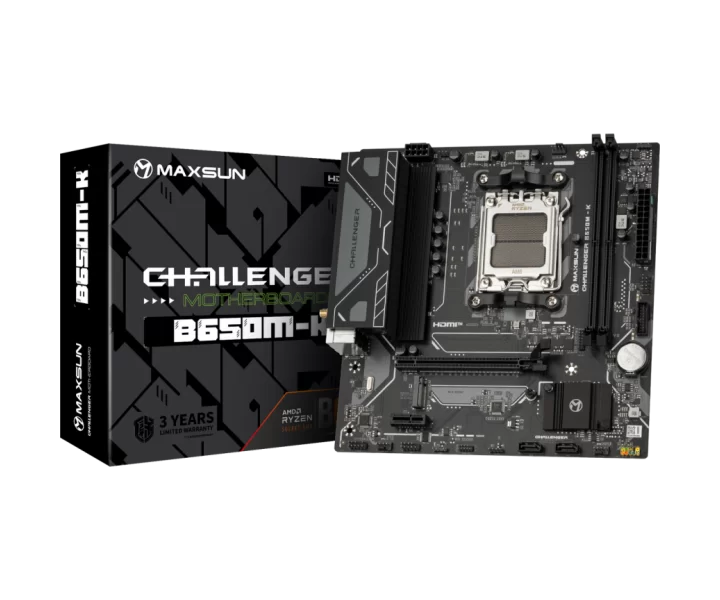

MS-Challenger B650M-K özellikleri ve fiyatları

MS-Challenger B650M-K teknik özellikleri

Model kodu

MS-Challenger B650M-K

İşlemci soketi

AM5

Uyumlu işlemciler

AMD® AM5 socket Compatible with AMD Ryzen™ 7000 / 8000 / 9000 Series processors

Anakart yonga seti

AMD® B650 chipset

Anakart biçimi

Micro-ATX

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

2 × DDR5 DIMM slots, up to 96GB Dual-channel memory architecture Supports AMD® EXPO memory overclocking Supported speeds: 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5200 / 4800 MHz Note: Maximum achievable memory speed depends on CPU & DRAM quality.

Bellek hızı ve uyumluluk koşulları

2 × DDR5 DIMM slots, up to 96GB Dual-channel memory architecture Supports AMD® EXPO memory overclocking Supported speeds: 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5200 / 4800 MHz Note: Maximum achievable memory speed depends on CPU & DRAM quality.

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

96 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

From AMD Ryzen™ processor: 1 × PCIe x16 slot (PCIe 5.0 x16) From AMD B650 chipset: 1 × PCIe x1 slot (PCIe 3.0 x1)

PCIe şerit paylaşımı ve işlemci koşulları

From AMD Ryzen™ processor: 1 × PCIe x16 slot (PCIe 5.0 x16) From AMD B650 chipset: 1 × PCIe x1 slot (PCIe 3.0 x1)

storage Interfaces

1 × M.2 slot (PCIe 4.0 x4, supports 2280) 2 × SATA 6Gb/s ports

M.2 uyumluluğu ve şerit paylaşımı

1 × M.2 slot (PCIe 4.0 x4, supports 2280) 2 × SATA 6Gb/s ports

Depolama için M.2 yuvası sayısı

1

SATA bağlantı sayısı

2

Kablolu ağ bağlantısı

1 × Realtek RTL8111M Gigabit Ethernet (1000Mbps) 1 × M.2 E-Key slot for Wi-Fi modules (supports PCIe & USB interfaces)

Wi-Fi

1 × Realtek RTL8111M Gigabit Ethernet (1000Mbps) 1 × M.2 E-Key slot for Wi-Fi modules (supports PCIe & USB interfaces)

USB bağlantısı

Onboard USB headers: 1 × USB 3.2 Gen1 header (supports 2 × USB 5Gbps) 1 × USB 2.0 header (supports 2 × USB 2.0) Rear I/O: 4 × USB 3.2 Gen1 Type-A (5Gbps) 2 × USB 2.0 Type-A

Arka panel bağlantıları

1 × HDMI™ 1.4 4 × USB 3.2 Gen1 Type-A (5Gbps) 2 × USB 2.0 Type-A 1 × Realtek 1Gb Ethernet port 3 × audio jacks CLR_CMOS button

Dahili bağlantılar ve ön panel başlıkları

1 × 24-Pin ATX power 1 × 8-Pin +12V CPU power 1 × 4-Pin CPU_FAN 2 × 4-Pin SYS_FAN 1 × M.2 slot (Key M) 2 × SATA 6Gb/s 1 × USB 3.2 Gen1 header 1 × USB 2.0 header 1 × COM port header 1 × Front panel audio header 1 × 10-1 Pin system panel header 1 × TPM header 2 × 5V 3-Pin ARGB headers

Güç bağlantıları

1 × 24-Pin ATX power 1 × 8-Pin +12V CPU power 1 × 4-Pin CPU_FAN 2 × 4-Pin SYS_FAN 1 × M.2 slot (Key M) 2 × SATA 6Gb/s 1 × USB 3.2 Gen1 header 1 × USB 2.0 header 1 × COM port header 1 × Front panel audio header 1 × 10-1 Pin system panel header 1 × TPM header 2 × 5V 3-Pin ARGB headers

Görüntü çıkışları ve kullanım koşulları

1 × HDMI™ 1.4 port Supports up to 4K @ 30Hz Graphics capability depends on CPU (see www.amd.com)

Ses çıkışı

Realtek ALC897 HD Audio Codec 3 × rear audio jacks

Ses yongası

Realtek ALC897

Diğer anakart özellikleri

Onboard Debug LEDs CLR_CMOS quick button Maxsun Sync RGB Lighting Control

Üreticinin ayrıntılı teknik bilgileri

Form Factor: M-ATX (Micro-ATX) Size: 225mm × 220mm, CPU Support: AMD® AM5 socket Compatible with AMD Ryzen™ 7000 / 8000 / 9000 Series processors, Chipset: AMD® B650 chipset, Memory: 2 × DDR5 DIMM slots, up to 96GB Dual-channel memory architecture Supports AMD® EXPO memory overclocking Supported speeds: 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5200 / 4800 MHz Note: Maximum achievable memory speed depends on CPU & DRAM quality., Graphics Output: 1 × HDMI™ 1.4 port Supports up to 4K @ 30Hz Graphics capability depends on CPU (see www.amd.com), Expansion Slots: From AMD Ryzen™ processor: 1 × PCIe x16 slot (PCIe 5.0 x16) From AMD B650 chipset: 1 × PCIe x1 slot (PCIe 3.0 x1), Storage Interfaces: 1 × M.2 slot (PCIe 4.0 x4, supports 2280) 2 × SATA 6Gb/s ports, Networking: 1 × Realtek RTL8111M Gigabit Ethernet (1000Mbps) 1 × M.2 E-Key slot for Wi-Fi modules (supports PCIe & USB interfaces), USB Ports: Onboard USB headers: 1 × USB 3.2 Gen1 header (supports 2 × USB 5Gbps) 1 × USB 2.0 header (supports 2 × USB 2.0) Rear I/O: 4 × USB 3.2 Gen1 Type-A (5Gbps) 2 × USB 2.0 Type-A, Audio: Realtek ALC897 HD Audio Codec 3 × rear audio jacks, Rear I/O Ports: 1 × HDMI™ 1.4 4 × USB 3.2 Gen1 Type-A (5Gbps) 2 × USB 2.0 Type-A 1 × Realtek 1Gb Ethernet port 3 × audio jacks CLR_CMOS button, Internal Connectors: 1 × 24-Pin ATX power 1 × 8-Pin +12V CPU power 1 × 4-Pin CPU_FAN 2 × 4-Pin SYS_FAN 1 × M.2 slot (Key M) 2 × SATA 6Gb/s 1 × USB 3.2 Gen1 header 1 × USB 2.0 header 1 × COM port header 1 × Front panel audio header 1 × 10-1 Pin system panel header 1 × TPM header 2 × 5V 3-Pin ARGB headers, Operating System Support: Windows® 11 64-bit Windows® 10 64-bit, Special Features: Onboard Debug LEDs CLR_CMOS quick button Maxsun Sync RGB Lighting Control
