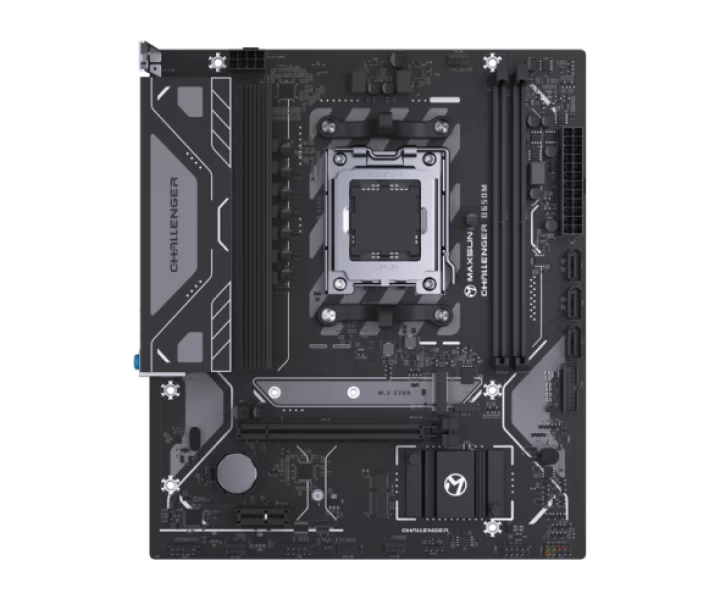

MS-Challenger B650M V2 özellikleri ve fiyatları

MS-Challenger B650M V2 teknik özellikleri

Model kodu

MS-Challenger B650M V2

İşlemci soketi

LGA1718

Uyumlu işlemciler

Supports LGA1718 slot AMD RYZEN7000 Series TDP: 155W (6+2+1 items)

Anakart yonga seti

AMD® B650 Chipset

Anakart biçimi

Micro-ATX

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

2* DIMM DDR5 memory slots Supports dual-channel memory technology Support 4800MHZ/5200MHZ/OC Memeroy Frequency

Bellek hızı ve uyumluluk koşulları

2* DIMM DDR5 memory slots Supports dual-channel memory technology Support 4800MHZ/5200MHZ/OC Memeroy Frequency

RAM yuvası sayısı

2

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

1x PCIe 4.0 x16 slot 1x PCIe 3.0 x4 slot 1x PCIe 3.0 x1 slot

PCIe şerit paylaşımı ve işlemci koşulları

1x PCIe 4.0 x16 slot 1x PCIe 3.0 x4 slot 1x PCIe 3.0 x1 slot

storage Interfaces

M.2 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode) 4x SATA 6Gb/s ports | 1* M.2 4.0 slot (supports 2242/2280 PCIE X4/X2 channel SSD only) 3* SATA3.0 ports

M.2 uyumluluğu ve şerit paylaşımı

M.2 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode) 4x SATA 6Gb/s ports | 1* M.2 4.0 slot (supports 2242/2280 PCIE X4/X2 channel SSD only) 3* SATA3.0 ports

Depolama için M.2 yuvası sayısı

1

SATA bağlantı sayısı

4

Kablolu ağ bağlantısı

Realtek® RTL8111HNIC Chip

USB bağlantısı

Onboard rear ports: 4* USB3.2 GEN1 ports, 2* USB2.0 ports On-board pins: 1* set (2 pcs) of USB2.0 pins, 1* set (2 pcs) of USB3.2 GEN1 pins

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin Power Connector(ATX_PWR) 1x 8-pin Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 1x PS/2 interface 1x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x 4-Pin SPEAKER 1x Front Audio 1x COM_A Port 1x 9-Pin DEBUG_CON 1x CLR CMOS

Güç bağlantıları

1x 24-pin Power Connector(ATX_PWR) 1x 8-pin Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 1x PS/2 interface 1x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x 4-Pin SPEAKER 1x Front Audio 1x COM_A Port 1x 9-Pin DEBUG_CON 1x CLR CMOS

Görüntü çıkışları ve kullanım koşulları

1x VGA *Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1x HDMI™port *HDMI™ port supports up to 4K@30Hz *Graphics specifications may vary between CPU types.

Ses çıkışı

Realtek® ALC897 Codec 5.1-Channel High Definition Audio

Ses yongası

ALC897

Ses kanalı yapılandırması

5.1 kanal

Üreticinin ayrıntılı teknik bilgileri

CHIPSET: AMD® B650 Chipset, CPU (Max Support): Supports LGA1718 slot AMD RYZEN7000 Series TDP: 155W (6+2+1 items), MEMORY: 2* DIMM DDR5 memory slots Supports dual-channel memory technology Support 4800MHZ/5200MHZ/OC Memeroy Frequency, ONBOARD GRAPHICS: 1x VGA *Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1x HDMI™port *HDMI™ port supports up to 4K@30Hz *Graphics specifications may vary between CPU types., EXPANSION SLOT: 1x PCIe 4.0 x16 slot 1x PCIe 3.0 x4 slot 1x PCIe 3.0 x1 slot, STORAGE: M.2 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode) 4x SATA 6Gb/s ports, USB: Onboard rear ports: 4* USB3.2 GEN1 ports, 2* USB2.0 ports On-board pins: 1* set (2 pcs) of USB2.0 pins, 1* set (2 pcs) of USB3.2 GEN1 pins, LAN: Realtek® RTL8111HNIC Chip, AUDIO: Realtek® ALC897 Codec 5.1-Channel High Definition Audio, INTERNAL I/O: 1x 24-pin Power Connector(ATX_PWR) 1x 8-pin Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 1x PS/2 interface 1x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x 4-Pin SPEAKER 1x Front Audio 1x COM_A Port 1x 9-Pin DEBUG_CON 1x CLR CMOS, SSD: 1* M.2 4.0 slot (supports 2242/2280 PCIE X4/X2 channel SSD only) 3* SATA3.0 ports, OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit, FORM FACTOR: M-ATX 245mm x 210mm
