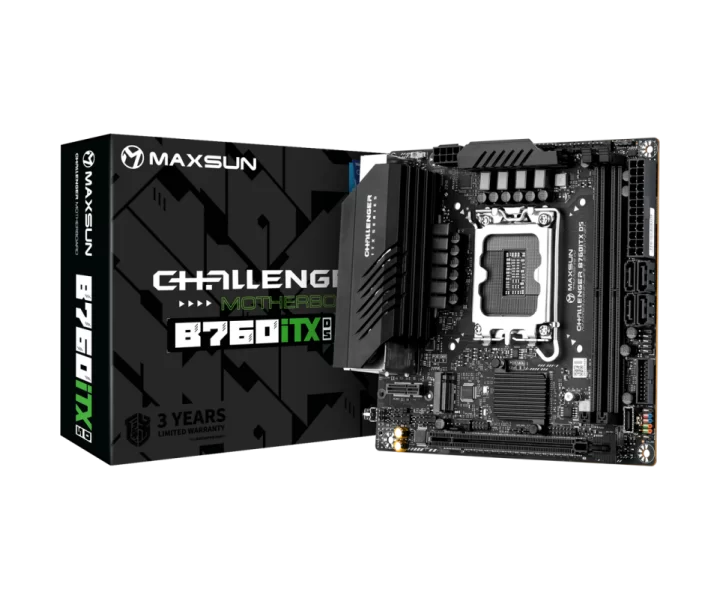

MS-Challenger B760ITX D5 özellikleri ve fiyatları

MS-Challenger B760ITX D5 teknik özellikleri

Model kodu

MS-Challenger B760ITX D5

İşlemci soketi

LGA1700

Uyumlu işlemciler

Supports 12th/13th/14th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700

Anakart yonga seti

INTEL B760 High Speed Chipset

Anakart biçimi

Mini-ITX

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

2x DDR5, Maximum Memory Capacity 96GB Support 4800 MHz /XMP/OC/memory frequencies Supports Intel® XMP 2.0 OC Supports Dual-Controller Dual-Channel mode

Bellek hızı ve uyumluluk koşulları

2x DDR5, Maximum Memory Capacity 96GB Support 4800 MHz /XMP/OC/memory frequencies Supports Intel® XMP 2.0 OC Supports Dual-Controller Dual-Channel mode

RAM yuvası sayısı

2

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

1x PCIe 5.0 x16 slot

PCIe şerit paylaşımı ve işlemci koşulları

1x PCIe 5.0 x16 slot

storage Interfaces

1x M.2_SSD_A Front Socket M.2 slot with Gen4 x4 support 1x M.2_SSD_B backside slot M.2 slot with Gen4 x4 support 4x SATA 3.0 ports

M.2 uyumluluğu ve şerit paylaşımı

1x M.2_SSD_A Front Socket M.2 slot with Gen4 x4 support 1x M.2_SSD_B backside slot M.2 slot with Gen4 x4 support 4x SATA 3.0 ports

SATA bağlantı sayısı

4

Kablolu ağ bağlantısı

2.5Gb+1Gb dual LAN ports

USB bağlantısı

Onboard USB pins (5 ports total) Rear USB ports

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin Power Connector(ATX_PWR) 1x 8-pin Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 1x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x CLR_CMOS 1x 4-Pin BUZZER 1x Front Audio 1x COM Port

Güç bağlantıları

1x 24-pin Power Connector(ATX_PWR) 1x 8-pin Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 1x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x CLR_CMOS 1x 4-Pin BUZZER 1x Front Audio 1x COM Port

Görüntü çıkışları ve kullanım koşulları

2* DP1.4 display ports supporting up to 4096x2160@60Hz resolution 1*HDMl 2.0 display interface, support up to 4096x2160@60Hz resolution 1* HDMl 1.4 display interface, support up to 4096x2160@30Hz resolution

Ses çıkışı

Realtek® ALC897 Codec

Ses yongası

ALC897

Üreticinin ayrıntılı teknik bilgileri

CHIPSET: INTEL B760 High Speed Chipset, CPU: Supports 12th/13th/14th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700, MEMORY: 2x DDR5, Maximum Memory Capacity 96GB Support 4800 MHz /XMP/OC/memory frequencies Supports Intel® XMP 2.0 OC Supports Dual-Controller Dual-Channel mode, ONBOARD GRAPHICS: 2* DP1.4 display ports supporting up to 4096x2160@60Hz resolution 1*HDMl 2.0 display interface, support up to 4096x2160@60Hz resolution 1* HDMl 1.4 display interface, support up to 4096x2160@30Hz resolution, EXPANSION SLOT: 1x PCIe 5.0 x16 slot, SSD: 1x M.2_SSD_A Front Socket M.2 slot with Gen4 x4 support 1x M.2_SSD_B backside slot M.2 slot with Gen4 x4 support 4x SATA 3.0 ports, USB: Onboard USB pins (5 ports total) Rear USB ports, LAN: 2.5Gb+1Gb dual LAN ports, AUDIO: Realtek® ALC897 Codec, INTERNAL I/O: 1x 24-pin Power Connector(ATX_PWR) 1x 8-pin Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 1x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x CLR_CMOS 1x 4-Pin BUZZER 1x Front Audio 1x COM Port, OPERATING SYSTEM: Support for Windows® 10 64-bit, Windows® 11 64-bit, FORM FACTOR: ITX 170mm x 170mm
