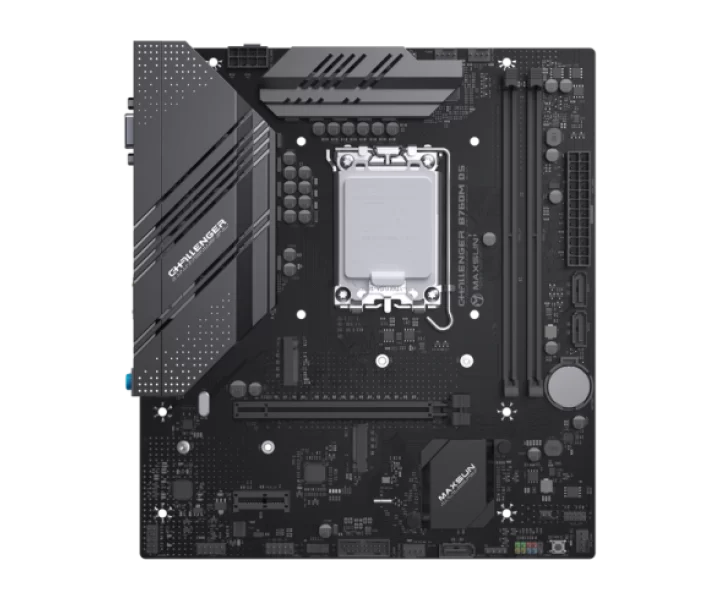

MS-Challenger B760M D5 özellikleri ve fiyatları

MS-Challenger B760M D5 teknik özellikleri

Model kodu

MS-Challenger B760M D5

İşlemci soketi

LGA1700

Uyumlu işlemciler

Support for LGA1700 slots The 12th ,13th and14t generation processors TDP: 125W(8+1+1)

Anakart yonga seti

INTEL B760 High-speed chipset

Anakart biçimi

Micro-ATX

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

2x DIMM DDR5 memory slots (second and fourth slots) Maximum support in total is 96GB Support for dual-channel memory technology Support 4800/5600/6400MHz/OC+memory frequency

Bellek hızı ve uyumluluk koşulları

2x DIMM DDR5 memory slots (second and fourth slots) Maximum support in total is 96GB Support for dual-channel memory technology Support 4800/5600/6400MHz/OC+memory frequency

RAM yuvası sayısı

2

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

1x PCIE 4.0X16,1x PCIE X1 3.0 slot Support for AMD and NVIDIA and INTEL discrete graphics cards

PCIe şerit paylaşımı ve işlemci koşulları

1x PCIE 4.0X16,1x PCIE X1 3.0 slot Support for AMD and NVIDIA and INTEL discrete graphics cards

storage Interfaces

2x M.2 4.0 slots (2242 / 2280 PCIE X4 / X2 channel SSD supported only) 3x SATA 3.0 ports

M.2 uyumluluğu ve şerit paylaşımı

2x M.2 4.0 slots (2242 / 2280 PCIE X4 / X2 channel SSD supported only) 3x SATA 3.0 ports

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

3

Kablolu ağ bağlantısı

Integrated REALTEK 8111NIC chip (10 / 100 / 1000 Mbit) 1x onboard R]45 port Support network arousal Support PXE no disk, UEFI no disk guide

USB bağlantısı

*On-board rear port: 4x USB 3.2 GEN 1 ports, 2x USB2.0 ports

Ses çıkışı

Integrated REALTEK ALC 897 sound chip

Üreticinin ayrıntılı teknik bilgileri

CHIPSET: INTEL B760 High-speed chipset, CPU: Support for LGA1700 slots The 12th ,13th and14t generation processors TDP: 125W(8+1+1), MEMORY: 2x DIMM DDR5 memory slots (second and fourth slots) Maximum support in total is 96GB Support for dual-channel memory technology Support 4800/5600/6400MHz/OC+memory frequency, EXPANSION SLOT: 1x PCIE 4.0X16,1x PCIE X1 3.0 slot Support for AMD and NVIDIA and INTEL discrete graphics cards, STORAGE: 2x M.2 4.0 slots (2242 / 2280 PCIE X4 / X2 channel SSD supported only) 3x SATA 3.0 ports, USB: *On-board rear port: 4x USB 3.2 GEN 1 ports, 2x USB2.0 ports, NETWORK: Integrated REALTEK 8111NIC chip (10 / 100 / 1000 Mbit) 1x onboard R]45 port Support network arousal Support PXE no disk, UEFI no disk guide, AUDIO: Integrated REALTEK ALC 897 sound chip, INSIDE BOARD SOCKET: 1x 24-PIN motherboard ATX power supply port 1x 8+4-PIN motherboard A TX 12V power supply port, 12V input, 2x sets of system fan pins and 1x group of CPU fan pins、 1x group of PUMP fan pinslx group chassis front control panel pin (F PANEL), OPERATING SYSTEM: Support for Windows 10 64bit, Windows 11 64bit Support for Ubuntu 64bit, FORM FACTOR: Micro ATX 230mm x 205mm
