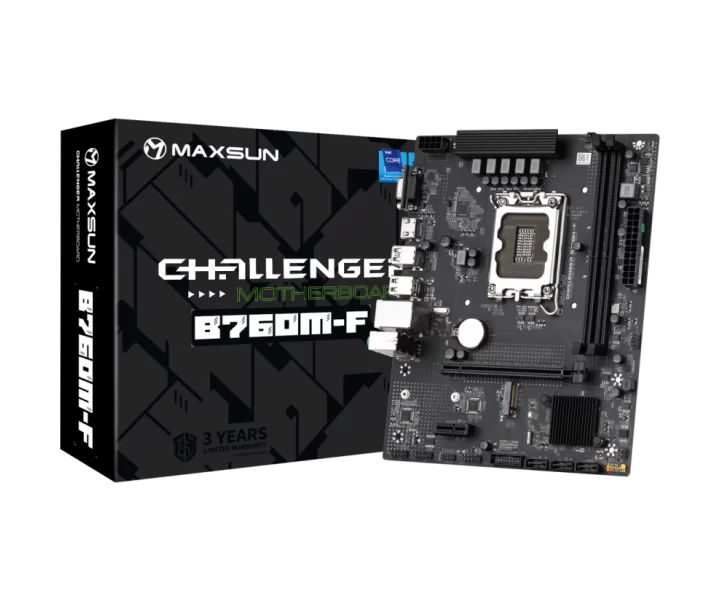

MS-Challenger B760M-F özellikleri ve fiyatları

MS-Challenger B760M-F teknik özellikleri

Model kodu

MS-Challenger B760M-F

İşlemci soketi

LGA1700

Uyumlu işlemciler

Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700

Anakart yonga seti

INTEL B760

Anakart biçimi

Micro-ATX

RAM türü

DDR4

Desteklenen bellek yapılandırmaları

2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz Supports Intel® XMP 2.0 OC Supports Dual-Controller Dual-Channel mode

Bellek hızı ve uyumluluk koşulları

2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz Supports Intel® XMP 2.0 OC Supports Dual-Controller Dual-Channel mode

RAM yuvası sayısı

2

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

1x PCIe 4.0 x16 slot 1x PCIe 3.0 x1 slot

PCIe şerit paylaşımı ve işlemci koşulları

1x PCIe 4.0 x16 slot 1x PCIe 3.0 x1 slot

storage Interfaces

M.2 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode) 3 x SATA 6Gb/s ports

M.2 uyumluluğu ve şerit paylaşımı

M.2 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode) 3 x SATA 6Gb/s ports

SATA bağlantı sayısı

3

Kablolu ağ bağlantısı

Realtek® RTL8111H 1G LAN

USB bağlantısı

*Front USB (Total 4 ports) 2x USB 3.2 Gen1 Type A 2x USB 2.0 *Rear USB (Total 6 ports) 2x USB 3.2 Gen1 Type A 4x USB 2.0

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin Power Connector(ATX_PWR) 1x 8-pin Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 1 x M.2 slots (Key-M) 3x SATA 6Gb/s ports 1x 2-Pin CLR_CMOS 1x 4-Pin BUZZER 1x Front Audio 1x COM_A Port 1x 9-Pin DEBUG_CON 1x 2-Pin ME_PROTECT

Güç bağlantıları

1x 24-pin Power Connector(ATX_PWR) 1x 8-pin Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 1 x M.2 slots (Key-M) 3x SATA 6Gb/s ports 1x 2-Pin CLR_CMOS 1x 4-Pin BUZZER 1x Front Audio 1x COM_A Port 1x 9-Pin DEBUG_CON 1x 2-Pin ME_PROTECT

Görüntü çıkışları ve kullanım koşulları

1x VGA *Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1x HDMI™port *HDMI™ port supports up to 4K@30Hz *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

Ses çıkışı

Realtek® ALC897 Codec 5.1-Channel High Definition Audio

Ses yongası

ALC897

Ses kanalı yapılandırması

5.1 kanal

Üreticinin ayrıntılı teknik bilgileri

CHIPSET: INTEL B760, CPU: Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700, MEMORY: 2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz Supports Intel® XMP 2.0 OC Supports Dual-Controller Dual-Channel mode, ONBOARD GRAPHICS: 1x VGA *Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1x HDMI™port *HDMI™ port supports up to 4K@30Hz *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates., EXPANSION SLOT: 1x PCIe 4.0 x16 slot 1x PCIe 3.0 x1 slot, STORAGE: M.2 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode) 3 x SATA 6Gb/s ports, RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, USB: *Front USB (Total 4 ports) 2x USB 3.2 Gen1 Type A 2x USB 2.0 *Rear USB (Total 6 ports) 2x USB 3.2 Gen1 Type A 4x USB 2.0, LAN: Realtek® RTL8111H 1G LAN, AUDIO: Realtek® ALC897 Codec 5.1-Channel High Definition Audio, INTERNAL I/O: 1x 24-pin Power Connector(ATX_PWR) 1x 8-pin Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 1 x M.2 slots (Key-M) 3x SATA 6Gb/s ports 1x 2-Pin CLR_CMOS 1x 4-Pin BUZZER 1x Front Audio 1x COM_A Port 1x 9-Pin DEBUG_CON 1x 2-Pin ME_PROTECT, OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit, FORM FACTOR: M-ATX 225mm x 179mm
