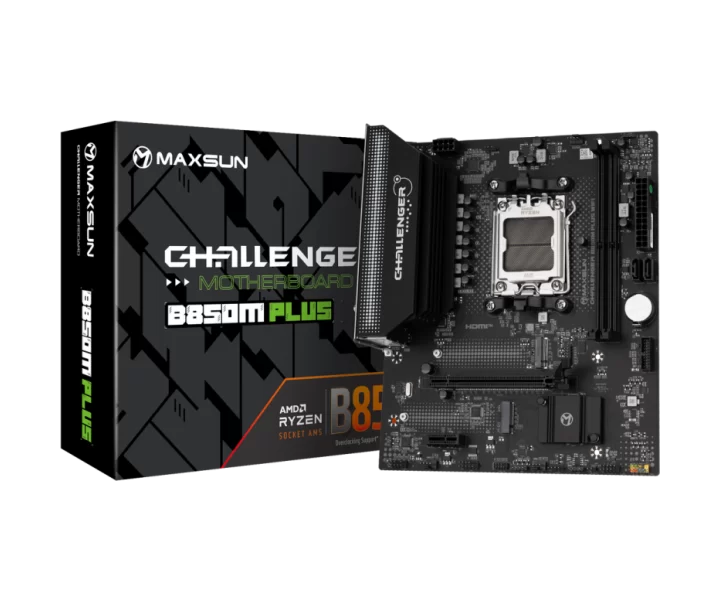

MS-Challenger B850M PLUS WIFI özellikleri ve fiyatları

MS-Challenger B850M PLUS WIFI teknik özellikleri

Model kodu

MS-Challenger B850M PLUS WIFI

İşlemci soketi

AM5

Uyumlu işlemciler

AMD® AM5 Socket Supports Ryzen 7000 / 8000 / 9000 Series TDP: 105–180W (based on default BIOS mode)

Anakart yonga seti

AMD® B850 High-Speed Chipset

Anakart biçimi

Micro-ATX

Boyutlar

M-ATX (245 × 210 mm)

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

2 × DIMM DDR5 slots, up to 96GB total capacity Supports dual-channel memory technology Supported frequencies: 4800 / 5200 / 5600(OC) / 6000(OC) / 6400(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7600(OC) / 7800(OC) / 8000(OC) MHz

Bellek hızı ve uyumluluk koşulları

2 × DIMM DDR5 slots, up to 96GB total capacity Supports dual-channel memory technology Supported frequencies: 4800 / 5200 / 5600(OC) / 6000(OC) / 6400(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7600(OC) / 7800(OC) / 8000(OC) MHz

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

96 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

1 × PCIe x16 5.0 slot 1 × PCIe x1 3.0 slot

PCIe şerit paylaşımı ve işlemci koşulları

1 × PCIe x16 5.0 slot 1 × PCIe x1 3.0 slot

storage Interfaces

M.2 Slot (Key M): PCIe 5.0 x4 / x2 (2280 length supported) M.2 Slot (Key M): PCIe 4.0 x4 / x2 (2280 length supported) 2 × SATA 6Gb/s interfaces

M.2 uyumluluğu ve şerit paylaşımı

M.2 Slot (Key M): PCIe 5.0 x4 / x2 (2280 length supported) M.2 Slot (Key M): PCIe 4.0 x4 / x2 (2280 length supported) 2 × SATA 6Gb/s interfaces

SATA bağlantı sayısı

2

Kablolu ağ bağlantısı

1 × Realtek RTL8111H/M (1000Mbps Ethernet) 1 × Realtek® RTL8852BE Wi-Fi 6 and Bluetooth® v5.2 wireless network card

Wi-Fi

1 × Realtek RTL8111H/M (1000Mbps Ethernet) 1 × Realtek® RTL8852BE Wi-Fi 6 and Bluetooth® v5.2 wireless network card

Bluetooth sürümü

5.2

USB bağlantısı

Onboard USB (total 4 interfaces): 1 × USB 5Gbps header 2 × additional USB 5Gbps interfaces 1 × USB 2.0 header 2 × additional USB 2.0 interfaces Rear USB (total 6 interfaces): 4 × USB 5Gbps Type-A 2 × USB 2.0 Type-A

Görüntü çıkışları ve kullanım koşulları

1 × HDMI 1.4 (up to 4K@30Hz) 1 × DisplayPort (up to 4K@60Hz)

Ses çıkışı

Integrated Realtek ALC897 sound card

Ses yongası

Realtek ALC897

Diğer anakart özellikleri

1 × 24-pin motherboard ATX power connector 1 × 8-pin motherboard ATX 12V power connector (12V input) 2 × system fan headers 1 × CPU fan header 1 × IPM header 1 × rear CLR CMOS button 2 × 5V ARGB headers 1 × 12V RGB header Supports Maxsun SYNC

Üreticinin ayrıntılı teknik bilgileri

Model: MS-Challenger B850M PLUS WIFI, Form Factor: M-ATX (245 × 210 mm), CPU Support: AMD® AM5 Socket Supports Ryzen 7000 / 8000 / 9000 Series TDP: 105–180W (based on default BIOS mode), Chipset: AMD® B850 High-Speed Chipset, Memory: 2 × DIMM DDR5 slots, up to 96GB total capacity Supports dual-channel memory technology Supported frequencies: 4800 / 5200 / 5600(OC) / 6000(OC) / 6400(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7600(OC) / 7800(OC) / 8000(OC) MHz, Display: 1 × HDMI 1.4 (up to 4K@30Hz) 1 × DisplayPort (up to 4K@60Hz), Expansion Slots: 1 × PCIe x16 5.0 slot 1 × PCIe x1 3.0 slot, Audio: Integrated Realtek ALC897 sound card, Network: 1 × Realtek RTL8111H/M (1000Mbps Ethernet) 1 × Realtek® RTL8852BE Wi-Fi 6 and Bluetooth® v5.2 wireless network card, Storage: M.2 Slot (Key M): PCIe 5.0 x4 / x2 (2280 length supported) M.2 Slot (Key M): PCIe 4.0 x4 / x2 (2280 length supported) 2 × SATA 6Gb/s interfaces, USB: Onboard USB (total 4 interfaces): 1 × USB 5Gbps header 2 × additional USB 5Gbps interfaces 1 × USB 2.0 header 2 × additional USB 2.0 interfaces Rear USB (total 6 interfaces): 4 × USB 5Gbps Type-A 2 × USB 2.0 Type-A, Other: 1 × 24-pin motherboard ATX power connector 1 × 8-pin motherboard ATX 12V power connector (12V input) 2 × system fan headers 1 × CPU fan header 1 × IPM header 1 × rear CLR CMOS button 2 × 5V ARGB headers 1 × 12V RGB header Supports Maxsun SYNC
