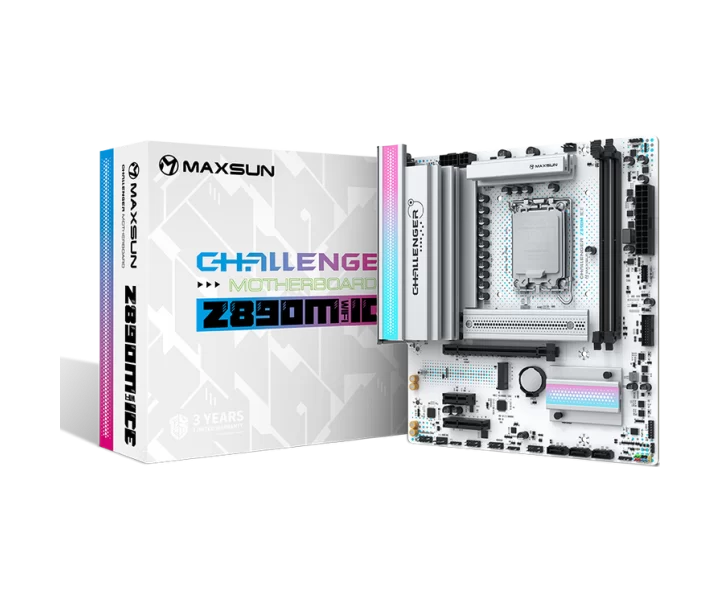

MS-Challenger Z890M WIFI ICE özellikleri ve fiyatları

MS-Challenger Z890M WIFI ICE teknik özellikleri

Model kodu

MS-Challenger Z890M WIFI ICE

İşlemci soketi

LGA1851

Uyumlu işlemciler

Intel® LGA1851, compatible with Intel® Core™ Ultra processors

Anakart yonga seti

Intel® Z890

Anakart biçimi

Micro-ATX

Boyutlar

M-ATX (245 x 225 mm)

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

2 × DIMM DDR5 slots, supporting dual-channel up to 128GB Memory speeds: XMP 4800/5000/5200/5400/5600/5800/6000/6200(OC)/6400(OC)/6600(OC)/6800(OC)/7000(OC)/7200(OC) MHz

Bellek hızı ve uyumluluk koşulları

2 × DIMM DDR5 slots, supporting dual-channel up to 128GB Memory speeds: XMP 4800/5000/5200/5400/5600/5800/6000/6200(OC)/6400(OC)/6600(OC)/6800(OC)/7000(OC)/7200(OC) MHz

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

1 × PCIe 5.0 x16 slot (supports PCIe 5.0 x16 mode) 1 × PCIe 4.0 x4 slot (supports PCIe 4.0 x4 mode) 1 × PCIe 3.0 x1 slot (supports PCIe 3.0 x1 mode)

PCIe şerit paylaşımı ve işlemci koşulları

1 × PCIe 5.0 x16 slot (supports PCIe 5.0 x16 mode) 1 × PCIe 4.0 x4 slot (supports PCIe 4.0 x4 mode) 1 × PCIe 3.0 x1 slot (supports PCIe 3.0 x1 mode)

storage Interfaces

1 × M.2 slot (PCIe 5.0 x4/x2, supports 2242/2280/22110 lengths) 1 × M.2 slot (PCIe 4.0 x4/x2, supports 2242/2280/22110 lengths) 3 × SATA 6Gb/s ports

M.2 uyumluluğu ve şerit paylaşımı

1 × M.2 slot (PCIe 5.0 x4/x2, supports 2242/2280/22110 lengths) 1 × M.2 slot (PCIe 4.0 x4/x2, supports 2242/2280/22110 lengths) 3 × SATA 6Gb/s ports

SATA bağlantı sayısı

3

Kablolu ağ bağlantısı

Realtek RTL8125BG/D Ethernet LAN (2.5G) Intel® AX101 Wireless supporting Wi-Fi 6 and Bluetooth 5.2

Wi-Fi

Realtek RTL8125BG/D Ethernet LAN (2.5G) Intel® AX101 Wireless supporting Wi-Fi 6 and Bluetooth 5.2

Bluetooth sürümü

5.2

USB bağlantısı

Onboard: 1 × USB 10G Type-C® front header 1 × USB 5G 19Pin header, supports 2 additional USB 5G ports 1 × USB 2.0 9-pin header, supports 2 additional USB 2.0 ports Rear Panel: 1 × USB 40G Type-C® (up to 10W output) 4 × USB 5G Type-A ports 2 × USB 2.0 Type-A ports

Görüntü çıkışları ve kullanım koşulları

1 × HDMI™ 2.0 (up to 4K @60Hz) 1 × DisplayPort 1.2 (up to 4K @60Hz)

Ses çıkışı

Integrated Realtek ALC897 Audio Codec

Ses yongası

Realtek ALC897

Diğer anakart özellikleri

Power Connectors: 1 × 24-Pin ATX, 1 × 8+4 Pin +12V RGB Headers: 2 × 3-Pin ARGB, 1 × 4-Pin NRGB Other Headers: 1 × COM port header, CLR CMOS button, 1 × 4-Pin CPU FAN header, 1 × 4-Pin PUMP header, 2 × 4-Pin chassis fan headers

Üreticinin ayrıntılı teknik bilgileri

Model: MS-Challenger Z890M WIFI ICE, Form Factor: M-ATX (245 x 225 mm), CPU Socket: Intel® LGA1851, compatible with Intel® Core™ Ultra processors, Chipset: Intel® Z890, Memory: 2 × DIMM DDR5 slots, supporting dual-channel up to 128GB Memory speeds: XMP 4800/5000/5200/5400/5600/5800/6000/6200(OC)/6400(OC)/6600(OC)/6800(OC)/7000(OC)/7200(OC) MHz, Graphics Support: 1 × HDMI™ 2.0 (up to 4K @60Hz) 1 × DisplayPort 1.2 (up to 4K @60Hz), Expansion Slots: 1 × PCIe 5.0 x16 slot (supports PCIe 5.0 x16 mode) 1 × PCIe 4.0 x4 slot (supports PCIe 4.0 x4 mode) 1 × PCIe 3.0 x1 slot (supports PCIe 3.0 x1 mode), Audio: Integrated Realtek ALC897 Audio Codec, Networking: Realtek RTL8125BG/D Ethernet LAN (2.5G) Intel® AX101 Wireless supporting Wi-Fi 6 and Bluetooth 5.2, Storage: 1 × M.2 slot (PCIe 5.0 x4/x2, supports 2242/2280/22110 lengths) 1 × M.2 slot (PCIe 4.0 x4/x2, supports 2242/2280/22110 lengths) 3 × SATA 6Gb/s ports, USB Ports: Onboard: 1 × USB 10G Type-C® front header 1 × USB 5G 19Pin header, supports 2 additional USB 5G ports 1 × USB 2.0 9-pin header, supports 2 additional USB 2.0 ports Rear Panel: 1 × USB 40G Type-C® (up to 10W output) 4 × USB 5G Type-A ports 2 × USB 2.0 Type-A ports, Additional Features: Power Connectors: 1 × 24-Pin ATX, 1 × 8+4 Pin +12V RGB Headers: 2 × 3-Pin ARGB, 1 × 4-Pin NRGB Other Headers: 1 × COM port header, CLR CMOS button, 1 × 4-Pin CPU FAN header, 1 × 4-Pin PUMP header, 2 × 4-Pin chassis fan headers

Güncel mağaza teklifleri

Son 48 saat içinde doğrulanmış, stokta mağaza teklifi yok. Eski fiyatlar güncel teklif olarak gösterilmez.
