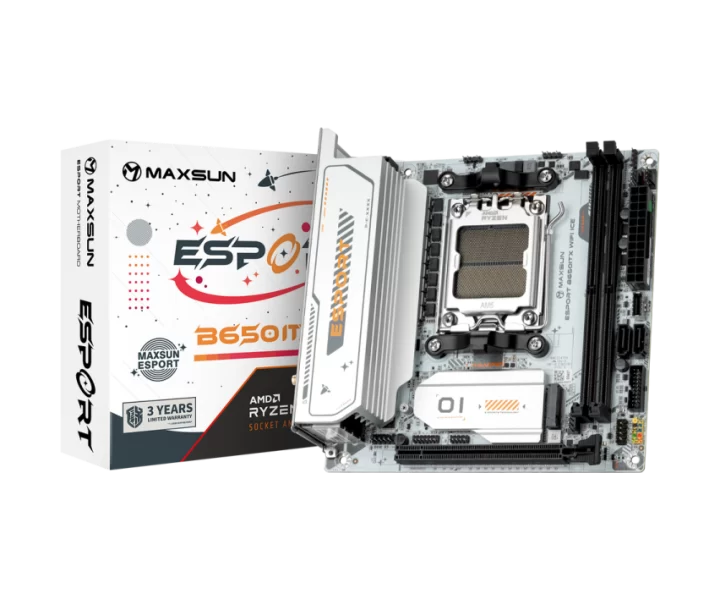

MS-eSport B650ITX WIFI ICE özellikleri ve fiyatları

MS-eSport B650ITX WIFI ICE teknik özellikleri

Model kodu

MS-eSport B650ITX WIFI ICE

İşlemci soketi

AM5

Uyumlu işlemciler

AM5, compatible with Ryzen 7000/8000/9000 series processors TDP: 105-180W

Anakart yonga seti

AMD® B650 high-speed chipset

Anakart biçimi

Mini-ITX

Boyutlar

ITX (170 x 170 mm)

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

2 DIMM DDR5 slots, supporting up to 96GB Dual-channel support Frequency Support: 4800/5200/5600(OC)/6000(OC)/6200(OC)/6400(OC)/6600(OC)/6800(OC)/7000(OC)/7200(OC)/7400(OC)/7600(OC)/7800(OC)/8000(OC) MHz

Bellek hızı ve uyumluluk koşulları

2 DIMM DDR5 slots, supporting up to 96GB Dual-channel support Frequency Support: 4800/5200/5600(OC)/6000(OC)/6200(OC)/6400(OC)/6600(OC)/6800(OC)/7000(OC)/7200(OC)/7400(OC)/7600(OC)/7800(OC)/8000(OC) MHz

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

96 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

1 x PCIe 4.0 x16 slot

PCIe şerit paylaşımı ve işlemci koşulları

1 x PCIe 4.0 x16 slot

storage Interfaces

2 x M.2 slots (supporting 2242/2280 PCIe 4.0 x4/x2 SSDs) 2 x SATA 3.0 ports

M.2 uyumluluğu ve şerit paylaşımı

2 x M.2 slots (supporting 2242/2280 PCIe 4.0 x4/x2 SSDs) 2 x SATA 3.0 ports

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

2

Kablolu ağ bağlantısı

Integrated Realtek 8125BG/D LAN chip Onboard Realtek 8852BE WiFi 6 with Bluetooth 5.2 1 x onboard M.2 E-Key PCI-E 2230 slot for WiFi

Wi-Fi

Integrated Realtek 8125BG/D LAN chip Onboard Realtek 8852BE WiFi 6 with Bluetooth 5.2 1 x onboard M.2 E-Key PCI-E 2230 slot for WiFi

Bluetooth sürümü

5.2

USB bağlantısı

Rear I/O: 2 x USB 3.2 Gen 1, 4 x USB 2.0 Internal Headers: 1 x USB 2.0 header (supports 2 ports), 1 x USB 3.2 Gen 1 header (supports 2 ports), 1 x USB Type-C 10G port

Görüntü çıkışları ve kullanım koşulları

1 x HDMI 1.4 (up to 4096 x 2160 @ 30Hz) 1 x DisplayPort (up to 4096 x 2160 @ 60Hz)

Ses çıkışı

Integrated Realtek ALC897 audio chip

Ses yongası

Realtek ALC897

Diğer anakart özellikleri

1 x 24-PIN ATX power connector RGB Headers: 2 x 5V ARGB headers, 1 x 12V RGB header with MAXSUN Sync support 1 x 8-PIN ATX12V power connector (12V input) Fan Headers: 2 system fan headers, 1 CPU fan header 1 x COM A header 1 x Rear CLR_CMOS button 1 x TPM header

Üreticinin ayrıntılı teknik bilgileri

Model: MS-eSport B650ITX WIFI ICE, Motherboard Size: ITX (170 x 170 mm), CPU Socket: AM5, compatible with Ryzen 7000/8000/9000 series processors TDP: 105-180W, Chipset: AMD® B650 high-speed chipset, Memory: 2 DIMM DDR5 slots, supporting up to 96GB Dual-channel support Frequency Support: 4800/5200/5600(OC)/6000(OC)/6200(OC)/6400(OC)/6600(OC)/6800(OC)/7000(OC)/7200(OC)/7400(OC)/7600(OC)/7800(OC)/8000(OC) MHz, Display: 1 x HDMI 1.4 (up to 4096 x 2160 @ 30Hz) 1 x DisplayPort (up to 4096 x 2160 @ 60Hz), Expansion Slot: 1 x PCIe 4.0 x16 slot, Audio: Integrated Realtek ALC897 audio chip, Network: Integrated Realtek 8125BG/D LAN chip Onboard Realtek 8852BE WiFi 6 with Bluetooth 5.2 1 x onboard M.2 E-Key PCI-E 2230 slot for WiFi, Storage: 2 x M.2 slots (supporting 2242/2280 PCIe 4.0 x4/x2 SSDs) 2 x SATA 3.0 ports, USB: Rear I/O: 2 x USB 3.2 Gen 1, 4 x USB 2.0 Internal Headers: 1 x USB 2.0 header (supports 2 ports), 1 x USB 3.2 Gen 1 header (supports 2 ports), 1 x USB Type-C 10G port, Additional Features: 1 x 24-PIN ATX power connector RGB Headers: 2 x 5V ARGB headers, 1 x 12V RGB header with MAXSUN Sync support 1 x 8-PIN ATX12V power connector (12V input) Fan Headers: 2 system fan headers, 1 CPU fan header 1 x COM A header 1 x Rear CLR_CMOS button 1 x TPM header

Güncel mağaza teklifleri

Son 48 saat içinde doğrulanmış, stokta mağaza teklifi yok. Eski fiyatlar güncel teklif olarak gösterilmez.
