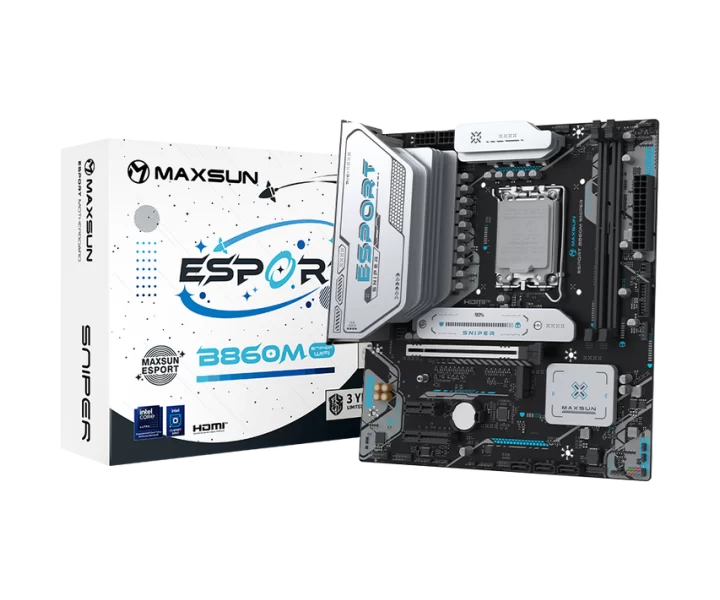

MS-eSport B860M SNIPER WIFI özellikleri ve fiyatları

MS-eSport B860M SNIPER WIFI teknik özellikleri

Model kodu

MS-eSport B860M SNIPER WIFI

İşlemci soketi

LGA1851

Uyumlu işlemciler

Intel® LGA1851 socket, compatible with Intel® Core™ Ultra processors

Anakart yonga seti

Intel® B860 Chipset

Anakart biçimi

Micro-ATX

Boyutlar

M-ATX (245x225mm)

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

2 DIMM DDR5 memory slots, supporting up to 96GB Supports dual-channel memory technology Memory frequency support: XMP 4800/5000/5200/5400/5800/6000/6200/6400/6600(OC)/6800(OC)/7000(OC)/7200(OC)/7600(OC)/8000(OC)/8200(OC)/8400(OC)/8600(OC) MHz

Bellek hızı ve uyumluluk koşulları

2 DIMM DDR5 memory slots, supporting up to 96GB Supports dual-channel memory technology Memory frequency support: XMP 4800/5000/5200/5400/5800/6000/6200/6400/6600(OC)/6800(OC)/7000(OC)/7200(OC)/7600(OC)/8000(OC)/8200(OC)/8400(OC)/8600(OC) MHz

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

96 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

1 x PCIe x16 slot (supports PCIe 5.0 x16 mode) 1 x PCIe x4 slot (supports PCIe 4.0 x4 mode) 1 x PCIe x1 slot (supports PCIe 4.0 x1 mode)

PCIe şerit paylaşımı ve işlemci koşulları

1 x PCIe x16 slot (supports PCIe 5.0 x16 mode) 1 x PCIe x4 slot (supports PCIe 4.0 x4 mode) 1 x PCIe x1 slot (supports PCIe 4.0 x1 mode)

storage Interfaces

1 x M.2 slot, supports PCIe 5.0 x4/x2 modes, 2280 length 1 x M.2 slot, supports PCIe 4.0 x4/x2 modes, 2280 length 3 x SATA 6Gb/s connectors

M.2 uyumluluğu ve şerit paylaşımı

1 x M.2 slot, supports PCIe 5.0 x4/x2 modes, 2280 length 1 x M.2 slot, supports PCIe 4.0 x4/x2 modes, 2280 length 3 x SATA 6Gb/s connectors

SATA bağlantı sayısı

3

Kablolu ağ bağlantısı

Integrated Realtek RTL8125BG/D Ethernet chip Onboard Intel® AX101 Wi-Fi 6 and Bluetooth 5.2 wireless network card

Wi-Fi

Integrated Realtek RTL8125BG/D Ethernet chip Onboard Intel® AX101 Wi-Fi 6 and Bluetooth 5.2 wireless network card

Bluetooth sürümü

5.2

USB bağlantısı

1 x 24-pin ATX power connector 1 x 8+8-pin +12V power connector 2 x 3-pin ARGB connectors 1 x 4-pin NRGB connector 1 x COM port header CLR_CMOS reset button 1 x 4-pin CPU fan header 1 x 4-pin PUMP water pump header 2 x 4-pin chassis fan headers

Görüntü çıkışları ve kullanım koşulları

1 x HDMI™ 2.0 port, supports up to 4K @ 60Hz resolution 1 x DP 1.2 port, supports up to 4K @ 60Hz resolution

Ses çıkışı

Integrated Realtek ALC897 audio chip

Ses yongası

Realtek ALC897

Üreticinin ayrıntılı teknik bilgileri

Model: MS-eSport B860M SNIPER WIFI, Motherboard Size: M-ATX (245x225mm), CPU Socket: Intel® LGA1851 socket, compatible with Intel® Core™ Ultra processors, Chipset: Intel® B860 Chipset, Memory: 2 DIMM DDR5 memory slots, supporting up to 96GB Supports dual-channel memory technology Memory frequency support: XMP 4800/5000/5200/5400/5800/6000/6200/6400/6600(OC)/6800(OC)/7000(OC)/7200(OC)/7600(OC)/8000(OC)/8200(OC)/8400(OC)/8600(OC) MHz, Display: 1 x HDMI™ 2.0 port, supports up to 4K @ 60Hz resolution 1 x DP 1.2 port, supports up to 4K @ 60Hz resolution, Expansion Slots: 1 x PCIe x16 slot (supports PCIe 5.0 x16 mode) 1 x PCIe x4 slot (supports PCIe 4.0 x4 mode) 1 x PCIe x1 slot (supports PCIe 4.0 x1 mode), Audio: Integrated Realtek ALC897 audio chip, Network: Integrated Realtek RTL8125BG/D Ethernet chip Onboard Intel® AX101 Wi-Fi 6 and Bluetooth 5.2 wireless network card, Storage: 1 x M.2 slot, supports PCIe 5.0 x4/x2 modes, 2280 length 1 x M.2 slot, supports PCIe 4.0 x4/x2 modes, 2280 length 3 x SATA 6Gb/s connectors, USB and Power Connections: 1 x 24-pin ATX power connector 1 x 8+8-pin +12V power connector 2 x 3-pin ARGB connectors 1 x 4-pin NRGB connector 1 x COM port header CLR_CMOS reset button 1 x 4-pin CPU fan header 1 x 4-pin PUMP water pump header 2 x 4-pin chassis fan headers
