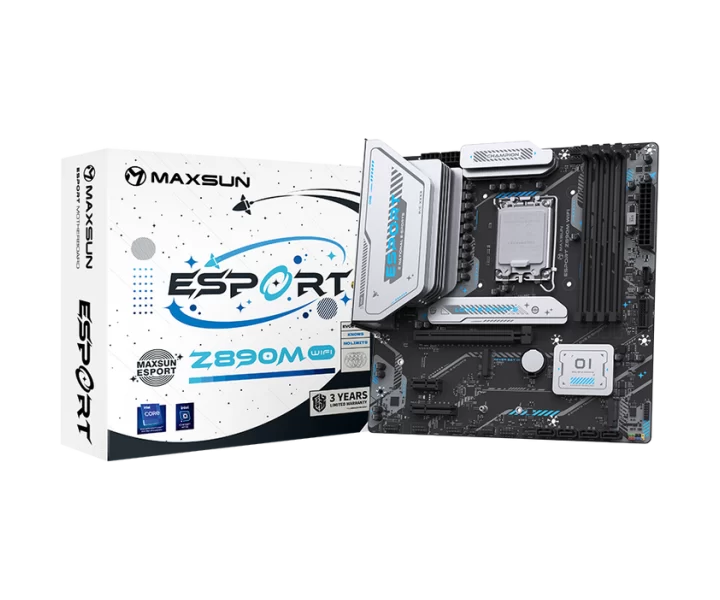

MS-eSport Z890M WIFI özellikleri ve fiyatları

MS-eSport Z890M WIFI teknik özellikleri

Model kodu

MS-eSport Z890M WIFI

İşlemci soketi

LGA1851

Uyumlu işlemciler

Intel® LGA1851, compatible with Intel® Core™ Ultra processors

Anakart yonga seti

Intel® Z890

Anakart biçimi

Micro-ATX

Boyutlar

M-ATX (245 × 245 mm)

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

4 × DIMM DDR5 slots, supporting dual-channel up to 256GB Memory speeds: XMP 4800/5200/5600(OC)/6000(OC)/6400(OC)/6800(OC)/7000(OC)/7200(OC)/7600(OC)/7800(OC)/8000(OC) MHz

Bellek hızı ve uyumluluk koşulları

4 × DIMM DDR5 slots, supporting dual-channel up to 256GB Memory speeds: XMP 4800/5200/5600(OC)/6000(OC)/6400(OC)/6800(OC)/7000(OC)/7200(OC)/7600(OC)/7800(OC)/8000(OC) MHz

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

256 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

1 × PCIe 5.0 x16 slot (supports PCIe 5.0 x16 mode) 1 × PCIe 4.0 x4 slot (supports PCIe 4.0 x4 mode) 1 × PCIe 4.0 x1 slot (supports PCIe 4.0 x1 mode)

PCIe şerit paylaşımı ve işlemci koşulları

1 × PCIe 5.0 x16 slot (supports PCIe 5.0 x16 mode) 1 × PCIe 4.0 x4 slot (supports PCIe 4.0 x4 mode) 1 × PCIe 4.0 x1 slot (supports PCIe 4.0 x1 mode)

storage Interfaces

1 × M.2 slot (PCIe 5.0 x4/x2, supports 2280 length) 1 × M.2 slot (PCIe 4.0 x4/x2, supports 2280 length) 1 × M.2 slot (PCIe 4.0 x4/x2, supports 2280/22110 lengths) 4 × SATA 6Gb/s ports

M.2 uyumluluğu ve şerit paylaşımı

1 × M.2 slot (PCIe 5.0 x4/x2, supports 2280 length) 1 × M.2 slot (PCIe 4.0 x4/x2, supports 2280 length) 1 × M.2 slot (PCIe 4.0 x4/x2, supports 2280/22110 lengths) 4 × SATA 6Gb/s ports

SATA bağlantı sayısı

4

Kablolu ağ bağlantısı

Realtek RTL8125BG/D Ethernet LAN Intel® AX101 Wireless supporting Wi-Fi 6 and Bluetooth 5.2

Wi-Fi

Realtek RTL8125BG/D Ethernet LAN Intel® AX101 Wireless supporting Wi-Fi 6 and Bluetooth 5.2

Bluetooth sürümü

5.2

USB bağlantısı

Onboard: 1 × USB 3.2 Gen2 Type-C (10G) front header 1 × USB 3.2 Gen1 (5G) header, supports 2 additional USB 3.2 Gen1 ports 1 × USB 2.0 9-pin header, supports 2 additional USB 2.0 ports Rear Panel: 4 × USB 3.2 Gen1 Type-A (5G) ports 4 × USB 2.0 Type-A ports 1 × USB 3.2 Gen2 Type-C (10G) port

Görüntü çıkışları ve kullanım koşulları

1 × HDMI™ 2.0 (up to 4K @60Hz) 1 × DisplayPort (up to 4K @60Hz)

Ses çıkışı

Integrated Realtek ALC897 Audio Chip

Ses yongası

Realtek ALC897

Diğer anakart özellikleri

Power Connectors: 1 × 24-Pin ATX, 2 × 8-Pin +12V RGB Headers: 2 × 3-Pin ARGB, 1 × 4-Pin NRGB Other Headers: 1 × COM port header, CLR CMOS button, 1 × 4-Pin CPU FAN header, 1 × 4-Pin PUMP header, 2 × 4-Pin chassis fan headers

Üreticinin ayrıntılı teknik bilgileri

Model: MS-eSport Z890M WIFI, Form Factor: M-ATX (245 × 245 mm), CPU Socket: Intel® LGA1851, compatible with Intel® Core™ Ultra processors, Chipset: Intel® Z890, Memory: 4 × DIMM DDR5 slots, supporting dual-channel up to 256GB Memory speeds: XMP 4800/5200/5600(OC)/6000(OC)/6400(OC)/6800(OC)/7000(OC)/7200(OC)/7600(OC)/7800(OC)/8000(OC) MHz, Graphics Support: 1 × HDMI™ 2.0 (up to 4K @60Hz) 1 × DisplayPort (up to 4K @60Hz), Expansion Slots: 1 × PCIe 5.0 x16 slot (supports PCIe 5.0 x16 mode) 1 × PCIe 4.0 x4 slot (supports PCIe 4.0 x4 mode) 1 × PCIe 4.0 x1 slot (supports PCIe 4.0 x1 mode), Audio: Integrated Realtek ALC897 Audio Chip, Networking: Realtek RTL8125BG/D Ethernet LAN Intel® AX101 Wireless supporting Wi-Fi 6 and Bluetooth 5.2, Storage: 1 × M.2 slot (PCIe 5.0 x4/x2, supports 2280 length) 1 × M.2 slot (PCIe 4.0 x4/x2, supports 2280 length) 1 × M.2 slot (PCIe 4.0 x4/x2, supports 2280/22110 lengths) 4 × SATA 6Gb/s ports, USB Ports: Onboard: 1 × USB 3.2 Gen2 Type-C (10G) front header 1 × USB 3.2 Gen1 (5G) header, supports 2 additional USB 3.2 Gen1 ports 1 × USB 2.0 9-pin header, supports 2 additional USB 2.0 ports Rear Panel: 4 × USB 3.2 Gen1 Type-A (5G) ports 4 × USB 2.0 Type-A ports 1 × USB 3.2 Gen2 Type-C (10G) port, Additional Features: Power Connectors: 1 × 24-Pin ATX, 2 × 8-Pin +12V RGB Headers: 2 × 3-Pin ARGB, 1 × 4-Pin NRGB Other Headers: 1 × COM port header, CLR CMOS button, 1 × 4-Pin CPU FAN header, 1 × 4-Pin PUMP header, 2 × 4-Pin chassis fan headers

Güncel mağaza teklifleri

Son 48 saat içinde doğrulanmış, stokta mağaza teklifi yok. Eski fiyatlar güncel teklif olarak gösterilmez.
