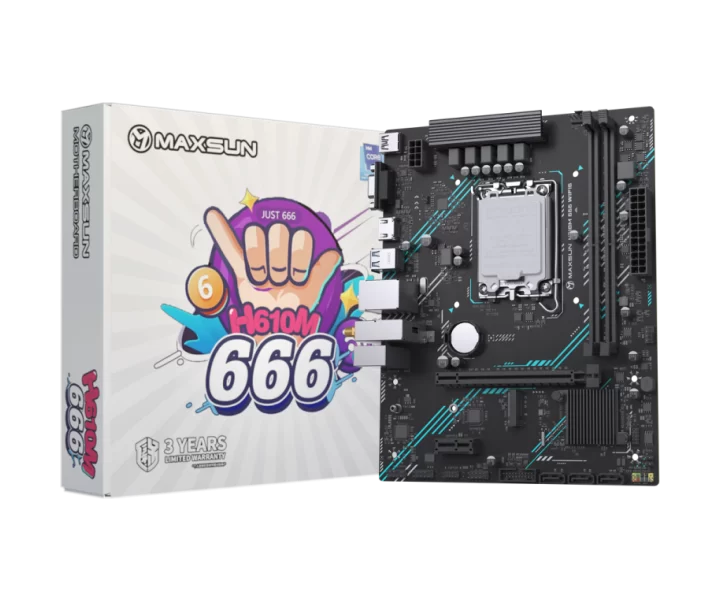

MS-H610M 666 WIFI6 özellikleri ve fiyatları

MS-H610M 666 WIFI6 teknik özellikleri

Model kodu

MS-H610M 666 WIFI6

İşlemci soketi

LGA1700

Uyumlu işlemciler

Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700

Anakart yonga seti

INTEL H610

Anakart biçimi

Micro-ATX

RAM türü

DDR4

Desteklenen bellek yapılandırmaları

2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 3200(OC)/ 2933(OC)/ 2666(OC)/ 2400(OC) MHz Supports Intel® XMP 2.0 OC Supports Dual-Controller Dual-Channel mode

Bellek hızı ve uyumluluk koşulları

2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 3200(OC)/ 2933(OC)/ 2666(OC)/ 2400(OC) MHz Supports Intel® XMP 2.0 OC Supports Dual-Controller Dual-Channel mode

RAM yuvası sayısı

2

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

1x PCIe 4.0 x16 slot 1x PCIe 3.0 x1 slot

PCIe şerit paylaşımı ve işlemci koşulları

1x PCIe 4.0 x16 slot 1x PCIe 3.0 x1 slot

storage Interfaces

M.2 slot (Key M), type 2242/2280 (supports PCIe 3.0 x4 mode) 3x SATA 6Gb/s ports

M.2 uyumluluğu ve şerit paylaşımı

M.2 slot (Key M), type 2242/2280 (supports PCIe 3.0 x4 mode) 3x SATA 6Gb/s ports

SATA bağlantı sayısı

3

Kablolu ağ bağlantısı

Realtek® RTL8111H 1G LAN

USB bağlantısı

*Front USB (Total 4 ports) 2x USB 3.2 Gen1 Type A 2x USB 2.0 *Rear USB (Total 6 ports) 2x USB 3.2 Gen1 Type A 4x USB 2.0

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin Power Connector(ATX_PWR) 1x 8-pin Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 1x M.2 slots (Key-M) 3x SATA 6Gb/s ports 1x 2-Pin CLR_CMOS 1x 4-Pin BUZZER 1x Front Audio 1x COM_A Port 1x 9-Pin DEBUG_CON 1x TPM pin header(Support TPM 2.0)

Güç bağlantıları

1x 24-pin Power Connector(ATX_PWR) 1x 8-pin Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 1x M.2 slots (Key-M) 3x SATA 6Gb/s ports 1x 2-Pin CLR_CMOS 1x 4-Pin BUZZER 1x Front Audio 1x COM_A Port 1x 9-Pin DEBUG_CON 1x TPM pin header(Support TPM 2.0)

Görüntü çıkışları ve kullanım koşulları

1xVGA 1x HDMI™port *HDMI™ port supports up to 4K@30Hz *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

Ses çıkışı

Realtek® ALC897 Codec 5.1-Channel High Definition Audio

Ses yongası

ALC897

Ses kanalı yapılandırması

5.1 kanal

Üreticinin ayrıntılı teknik bilgileri

CHIPSET: INTEL H610, CPU: Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700, MEMORY: 2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 3200(OC)/ 2933(OC)/ 2666(OC)/ 2400(OC) MHz Supports Intel® XMP 2.0 OC Supports Dual-Controller Dual-Channel mode, ONBOARD GRAPHICS: 1xVGA 1x HDMI™port *HDMI™ port supports up to 4K@30Hz *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates., EXPANSION SLOT: 1x PCIe 4.0 x16 slot 1x PCIe 3.0 x1 slot, STORAGE: M.2 slot (Key M), type 2242/2280 (supports PCIe 3.0 x4 mode) 3x SATA 6Gb/s ports, RAID: Not Supports RAID, USB: *Front USB (Total 4 ports) 2x USB 3.2 Gen1 Type A 2x USB 2.0 *Rear USB (Total 6 ports) 2x USB 3.2 Gen1 Type A 4x USB 2.0, LAN: Realtek® RTL8111H 1G LAN, AUDIO: Realtek® ALC897 Codec 5.1-Channel High Definition Audio, INTERNAL I/O: 1x 24-pin Power Connector(ATX_PWR) 1x 8-pin Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 1x M.2 slots (Key-M) 3x SATA 6Gb/s ports 1x 2-Pin CLR_CMOS 1x 4-Pin BUZZER 1x Front Audio 1x COM_A Port 1x 9-Pin DEBUG_CON 1x TPM pin header(Support TPM 2.0), LED FEATURE: 4x Distributed Debug LED, OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit, FORM FACTOR: M-ATX 220mm x 185mm
