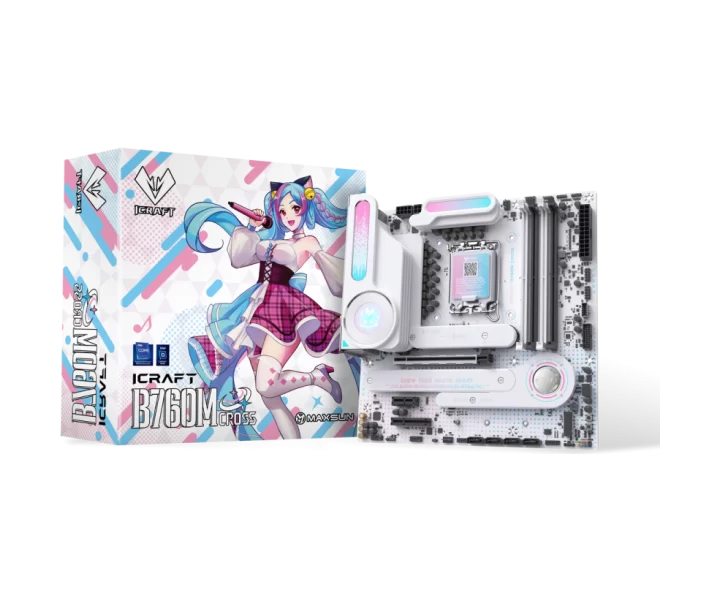

MS-iCraft B760M CROSS özellikleri ve fiyatları

MS-iCraft B760M CROSS teknik özellikleri

Model kodu

MS-iCraft B760M CROSS

İşlemci soketi

LGA1700

Uyumlu işlemciler

Supports 12th/13th/14th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700

Anakart yonga seti

INTEL B760

Anakart biçimi

Micro-ATX

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 7600(OC)/7200(OC)/7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MHz

Bellek hızı ve uyumluluk koşulları

4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 7600(OC)/7200(OC)/7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MHz

RAM yuvası sayısı

4

PCIe yuvaları

1x PCIe 5.0 x16 slot 1x PCIe 3.0 x4 slot 1x PCIe 3.0 x1 slot

PCIe şerit paylaşımı ve işlemci koşulları

1x PCIe 5.0 x16 slot 1x PCIe 3.0 x4 slot 1x PCIe 3.0 x1 slot

storage Interfaces

M.2_1 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports

M.2 uyumluluğu ve şerit paylaşımı

M.2_1 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports

SATA bağlantı sayısı

4

Kablolu ağ bağlantısı

Realtek® RTL8125BG 2.5G LAN

USB bağlantısı

*Front USB (Total 7 ports) 1x USB 3.2 Gen1 Type C (10Gbps) 2x USB 3.2 Gen1 Type A 4x USB 2.0 *Rear USB (Total 9 ports) 1x USB 3.2 Gen2 Type C (20Gbps) 4x USB 3.2 Gen1 Type A 4x USB 2.0

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin Power Connector(ATX_PWR) 1x 8+4-pin Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 3 x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x M.2 slots (Key-E) 1x 4-Pin BUZZER 2x 5V 3-Pin ARGB 1x 12V 4-Pin RGB 1x Clear CMOS 1x Front Audio 1x COM_A Port 1x TPM pin header(Support TPM 2.0) 1x RGB Button 1x POWER Button

Güç bağlantıları

1x 24-pin Power Connector(ATX_PWR) 1x 8+4-pin Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 3 x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x M.2 slots (Key-E) 1x 4-Pin BUZZER 2x 5V 3-Pin ARGB 1x 12V 4-Pin RGB 1x Clear CMOS 1x Front Audio 1x COM_A Port 1x TPM pin header(Support TPM 2.0) 1x RGB Button 1x POWER Button

Görüntü çıkışları ve kullanım koşulları

1x DisplayPort 1.4 1x HDMI™port *HDMI™ port supports up to 4K@30Hz *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

Ses çıkışı

Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output

Ses yongası

ALC897

Ses kanalı yapılandırması

7.1 kanal

Üreticinin ayrıntılı teknik bilgileri

CHIPSET: INTEL B760, CPU: Supports 12th/13th/14th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700, MEMORY: 4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 7600(OC)/7200(OC)/7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MHz, ONBOARD GRAPHICS: 1x DisplayPort 1.4 1x HDMI™port *HDMI™ port supports up to 4K@30Hz *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates., EXPANSION SLOT: 1x PCIe 5.0 x16 slot 1x PCIe 3.0 x4 slot 1x PCIe 3.0 x1 slot, STORAGE: M.2_1 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports, RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, USB: *Front USB (Total 7 ports) 1x USB 3.2 Gen1 Type C (10Gbps) 2x USB 3.2 Gen1 Type A 4x USB 2.0 *Rear USB (Total 9 ports) 1x USB 3.2 Gen2 Type C (20Gbps) 4x USB 3.2 Gen1 Type A 4x USB 2.0, LAN: Realtek® RTL8125BG 2.5G LAN, WIRELESS / BLUETOOTH: Intel® Wi-Fi 6E AX211 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, AUDIO: Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output, INTERNAL I/O: 1x 24-pin Power Connector(ATX_PWR) 1x 8+4-pin Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 3 x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x M.2 slots (Key-E) 1x 4-Pin BUZZER 2x 5V 3-Pin ARGB 1x 12V 4-Pin RGB 1x Clear CMOS 1x Front Audio 1x COM_A Port 1x TPM pin header(Support TPM 2.0) 1x RGB Button 1x POWER Button, LED FEATURE: 4x Distributed Debug LED, OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit, FORM FACTOR: M-ATX 245mm x 245mm
