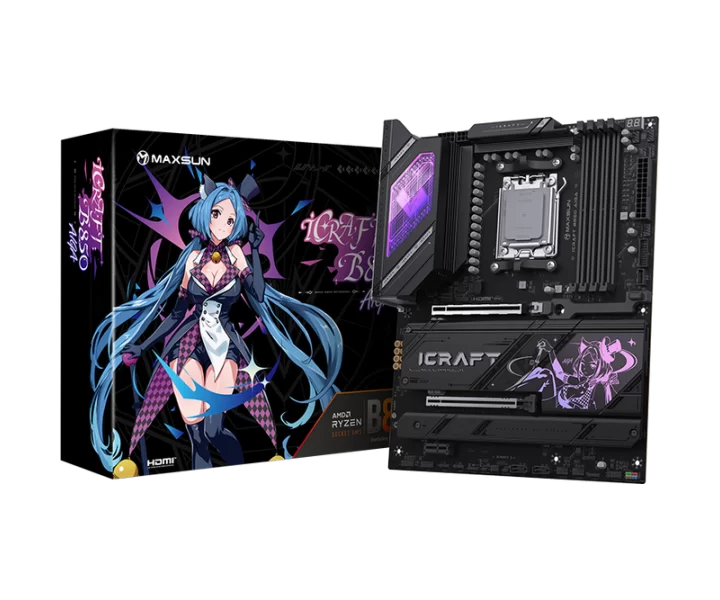

MS-iCraft B850 AIGA özellikleri ve fiyatları

MS-iCraft B850 AIGA teknik özellikleri

Model kodu

MS-iCraft B850 AIGA

İşlemci soketi

AM5

Uyumlu işlemciler

AMD® AM5 socket Compatible with AMD Ryzen™ 7000 / 8000 / 9000 Series processors

Anakart yonga seti

AMD® B850 chipset

Anakart biçimi

ATX

Boyutlar

ATX (305 × 245 mm)

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

4 × DIMM DDR5 slots, up to 256GB Dual-channel architecture Supports AMD® EXPO Supported speeds: 4800 / 5200 / 5600(OC) / 6000(OC) / 6400(OC) / 6600(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7400(OC) / 7600(OC) / 8000(OC) / 8200(OC) / 8400(OC) MHz

Bellek hızı ve uyumluluk koşulları

4 × DIMM DDR5 slots, up to 256GB Dual-channel architecture Supports AMD® EXPO Supported speeds: 4800 / 5200 / 5600(OC) / 6000(OC) / 6400(OC) / 6600(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7400(OC) / 7600(OC) / 8000(OC) / 8200(OC) / 8400(OC) MHz

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

256 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

From AMD Ryzen™ 9000/8000/7000 CPUs: • 1 × PCIe x16 slot (up to PCIe 5.0 x16/x8) • 1 × PCIe x16 slot (up to PCIe 5.0 x8 or x4+x4 when bifurcation enabled; requires PCIeX16_A switch; Ryzen 8000 disables this slot) From AMD B850 chipset: • 1 × PCIe x1 slot (PCIe 3.0 x1 mode)

PCIe şerit paylaşımı ve işlemci koşulları

From AMD Ryzen™ 9000/8000/7000 CPUs: • 1 × PCIe x16 slot (up to PCIe 5.0 x16/x8) • 1 × PCIe x16 slot (up to PCIe 5.0 x8 or x4+x4 when bifurcation enabled; requires PCIeX16_A switch; Ryzen 8000 disables this slot) From AMD B850 chipset: • 1 × PCIe x1 slot (PCIe 3.0 x1 mode)

storage Interfaces

4 × M.2 slots + 2 × SATA 6Gb/s From Ryzen™ 9000/8000/7000 CPUs: M.2_A: PCIe 5.0 x4/x2 (2242/2280) M.2_B: PCIe 5.0 x4/x2 (2242/2280/22110) From B850 chipset: M.2_C: PCIe 4.0 x4/x2 (2242/2280/22110) M.2_D: PCIe 4.0 x4/x2 (2242/2280/22110) 2 × SATA 6Gb/s ports

M.2 uyumluluğu ve şerit paylaşımı

4 × M.2 slots + 2 × SATA 6Gb/s From Ryzen™ 9000/8000/7000 CPUs: M.2_A: PCIe 5.0 x4/x2 (2242/2280) M.2_B: PCIe 5.0 x4/x2 (2242/2280/22110) From B850 chipset: M.2_C: PCIe 4.0 x4/x2 (2242/2280/22110) M.2_D: PCIe 4.0 x4/x2 (2242/2280/22110) 2 × SATA 6Gb/s ports

Depolama için M.2 yuvası sayısı

4

SATA bağlantı sayısı

2

Kablolu ağ bağlantısı

1 × Realtek RTL8126 5Gb Ethernet port 1 × MediaTek MT7925 wireless module (Wi-Fi 7 + Bluetooth® 5.4)

Wi-Fi

1 × Realtek RTL8126 5Gb Ethernet port 1 × MediaTek MT7925 wireless module (Wi-Fi 7 + Bluetooth® 5.4)

Bluetooth sürümü

5.4

USB bağlantısı

Onboard USB: 1 × USB 20G Type-C® header 1 × USB 5G 19-pin header (supports 2 ports) 1 × USB 2.0 9-pin header (supports 2 ports) 1 × USB 2.0 4-pin header (supports 1 port) Rear USB: 1 × USB 10G Type-C® (supports DP 1.4 video output up to 4K@60Hz) 4 × USB 10G Type-A 4 × USB 2.0 Type-A

Dahili bağlantılar ve ön panel başlıkları

1 × COM port header 1 × CLR_CMOS reset header 1 × 4-pin CPU fan header 1 × 4-pin PUMP header (DC control supported) 4 × 4-pin chassis fan headers

Güç bağlantıları

1 × 24-pin ATX Power Connector 2 × 8-pin +12V CPU Power Connectors

Görüntü çıkışları ve kullanım koşulları

1 × HDMI™ 2.0 (up to 4K@60Hz) 1 × DisplayPort 1.4 (up to 4K@60Hz) Graphics output depends on CPU capability (see AMD.com)

Ses çıkışı

Realtek ALC1220 audio codec

Ses yongası

Realtek ALC1220

Üreticinin ayrıntılı teknik bilgileri

Model: MS-iCraft B850 AIGA, Form Factor: ATX (305 × 245 mm), CPU Support: AMD® AM5 socket Compatible with AMD Ryzen™ 7000 / 8000 / 9000 Series processors, Chipset: AMD® B850 chipset, Memory: 4 × DIMM DDR5 slots, up to 256GB Dual-channel architecture Supports AMD® EXPO Supported speeds: 4800 / 5200 / 5600(OC) / 6000(OC) / 6400(OC) / 6600(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7400(OC) / 7600(OC) / 8000(OC) / 8200(OC) / 8400(OC) MHz, Display Outputs: 1 × HDMI™ 2.0 (up to 4K@60Hz) 1 × DisplayPort 1.4 (up to 4K@60Hz) Graphics output depends on CPU capability (see AMD.com), Expansion Slots: From AMD Ryzen™ 9000/8000/7000 CPUs: • 1 × PCIe x16 slot (up to PCIe 5.0 x16/x8) • 1 × PCIe x16 slot (up to PCIe 5.0 x8 or x4+x4 when bifurcation enabled; requires PCIeX16_A switch; Ryzen 8000 disables this slot) From AMD B850 chipset: • 1 × PCIe x1 slot (PCIe 3.0 x1 mode), Audio: Realtek ALC1220 audio codec, Networking: 1 × Realtek RTL8126 5Gb Ethernet port 1 × MediaTek MT7925 wireless module (Wi-Fi 7 + Bluetooth® 5.4), Storage: 4 × M.2 slots + 2 × SATA 6Gb/s From Ryzen™ 9000/8000/7000 CPUs: M.2_A: PCIe 5.0 x4/x2 (2242/2280) M.2_B: PCIe 5.0 x4/x2 (2242/2280/22110) From B850 chipset: M.2_C: PCIe 4.0 x4/x2 (2242/2280/22110) M.2_D: PCIe 4.0 x4/x2 (2242/2280/22110) 2 × SATA 6Gb/s ports, USB: Onboard USB: 1 × USB 20G Type-C® header 1 × USB 5G 19-pin header (supports 2 ports) 1 × USB 2.0 9-pin header (supports 2 ports) 1 × USB 2.0 4-pin header (supports 1 port) Rear USB: 1 × USB 10G Type-C® (supports DP 1.4 video output up to 4K@60Hz) 4 × USB 10G Type-A 4 × USB 2.0 Type-A, Power Connectors: 1 × 24-pin ATX Power Connector 2 × 8-pin +12V CPU Power Connectors, Lighting: 3 × 3-pin ARGB headers 1 × 4-pin NRGB header, Other Connectors: 1 × COM port header 1 × CLR_CMOS reset header 1 × 4-pin CPU fan header 1 × 4-pin PUMP header (DC control supported) 4 × 4-pin chassis fan headers
