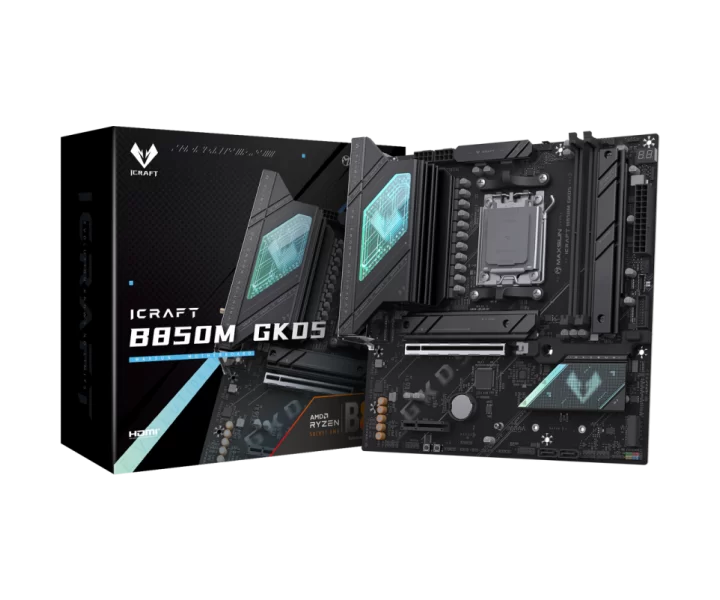

MS-iCraft B850M GKD5 WIFI özellikleri ve fiyatları

MS-iCraft B850M GKD5 WIFI teknik özellikleri

Model kodu

MS-iCraft B850M GKD5 WIFI

İşlemci soketi

AM5

Uyumlu işlemciler

AMD® AM5 socket Supports AMD® Ryzen™ 7000, 8000, and 9000 Series processors

Anakart yonga seti

AMD® B850 Chipset

Anakart biçimi

Micro-ATX

Boyutlar

M-ATX (245 × 245 mm)

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

2 × DIMM DDR5 slots, up to 128GB Dual-channel memory architecture Supports memory overclocking Supported speeds: 4800 / 5600(OC) / 6000(OC) / 6200(OC) / 6400(OC) / 6600(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7400(OC) / 7600(OC) / 7800(OC) / 8000(OC) / 8200(OC) / 8400(OC) / 8600(OC) / 8800(OC) MHz

Bellek hızı ve uyumluluk koşulları

2 × DIMM DDR5 slots, up to 128GB Dual-channel memory architecture Supports memory overclocking Supported speeds: 4800 / 5600(OC) / 6000(OC) / 6200(OC) / 6400(OC) / 6600(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7400(OC) / 7600(OC) / 7800(OC) / 8000(OC) / 8200(OC) / 8400(OC) / 8600(OC) / 8800(OC) MHz

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

From AMD Ryzen™ 9000 / 8000 / 7000 processors: 1 × PCIe x16 slot, supports up to PCIe 5.0 x16 mode When equipped with AMD Ryzen™ 7000 / 9000 Series processors, supports PCIe 5.0 x16 When equipped with AMD Ryzen™ 8000 Series processors, supports PCIe 4.0 x8 / x4 From AMD B850 Chipset: 1 × PCIe x4 slot, supports PCIe 4.0 x4 mode

PCIe şerit paylaşımı ve işlemci koşulları

From AMD Ryzen™ 9000 / 8000 / 7000 processors: 1 × PCIe x16 slot, supports up to PCIe 5.0 x16 mode When equipped with AMD Ryzen™ 7000 / 9000 Series processors, supports PCIe 5.0 x16 When equipped with AMD Ryzen™ 8000 Series processors, supports PCIe 4.0 x8 / x4 From AMD B850 Chipset: 1 × PCIe x4 slot, supports PCIe 4.0 x4 mode

storage Interfaces

Supports 3 × M.2 slots and 2 × SATA 6Gb/s ports From AMD Ryzen™ 9000 / 8000 / 7000 processors: M.2_A slot (Key_M): supports PCIe 5.0 x4 / x2 mode, supports 2242 / 2280 lengths When equipped with AMD Ryzen™ 7000 / 9000 Series processors, supports PCIe 5.0 x4 When equipped with AMD Ryzen™ 8000 Series processors, supports PCIe 4.0 x4 / x2 M.2_B slot (Key_M): supports PCIe 5.0 x4 / x2 mode, supports 2242 / 2280 / 22110 lengths When equipped with AMD Ryzen™ 7000 / 9000 Series processors, supports PCIe 5.0 x4 When equipped with AMD Ryzen™ 8000 Series processors, supports PCIe 4.0 x4 / x2 From AMD B850 Chipset: M.2_C slot (Key_M): supports PCIe 4.0 x4 / x2 mode, supports 2242 / 2280 / 22110 lengths 2 × SATA 6Gb/s ports

M.2 uyumluluğu ve şerit paylaşımı

Supports 3 × M.2 slots and 2 × SATA 6Gb/s ports From AMD Ryzen™ 9000 / 8000 / 7000 processors: M.2_A slot (Key_M): supports PCIe 5.0 x4 / x2 mode, supports 2242 / 2280 lengths When equipped with AMD Ryzen™ 7000 / 9000 Series processors, supports PCIe 5.0 x4 When equipped with AMD Ryzen™ 8000 Series processors, supports PCIe 4.0 x4 / x2 M.2_B slot (Key_M): supports PCIe 5.0 x4 / x2 mode, supports 2242 / 2280 / 22110 lengths When equipped with AMD Ryzen™ 7000 / 9000 Series processors, supports PCIe 5.0 x4 When equipped with AMD Ryzen™ 8000 Series processors, supports PCIe 4.0 x4 / x2 From AMD B850 Chipset: M.2_C slot (Key_M): supports PCIe 4.0 x4 / x2 mode, supports 2242 / 2280 / 22110 lengths 2 × SATA 6Gb/s ports

Depolama için M.2 yuvası sayısı

3

SATA bağlantı sayısı

2

Kablolu ağ bağlantısı

1 × Realtek RTL8126 5Gb Ethernet port 1 × MTK MT7922 wireless network card, supports Wi-Fi 6E and Bluetooth® v5.4

Wi-Fi

1 × Realtek RTL8126 5Gb Ethernet port 1 × MTK MT7922 wireless network card, supports Wi-Fi 6E and Bluetooth® v5.4

Bluetooth sürümü

5.4

USB bağlantısı

Onboard USB headers: 1 × USB 20G Type-C® front panel port 1 × USB 5G 19Pin header, supports 2 additional USB 5G ports 1 × USB 2.0 9Pin header, supports 2 additional USB 2.0 ports 1 × USB 2.0 4Pin header, supports 1 additional USB 2.0 port Rear I/O: 1 × USB 10G Type-C® port, supports DisplayPort 1.4 video output up to 4K @ 60Hz 4 × USB 10G Type-A ports 4 × USB 2.0 Type-A ports

Dahili bağlantılar ve ön panel başlıkları

1 × 24-Pin ATX power connector 2 × 8-Pin +12V power connectors 1 × 4-Pin CPU fan header 1 × 4-Pin PUMP water pump header, supports DC speed control 4 × 4-Pin chassis fan headers

Güç bağlantıları

1 × 24-Pin ATX power connector 2 × 8-Pin +12V power connectors 1 × 4-Pin CPU fan header 1 × 4-Pin PUMP water pump header, supports DC speed control 4 × 4-Pin chassis fan headers

Görüntü çıkışları ve kullanım koşulları

Display functions are supported only by processors with integrated graphics, using shared memory architecture 1 × HDMI™ 2.0 port, up to 4K @ 60Hz 1 × DisplayPort port, up to 4K @ 60Hz

Ses çıkışı

Integrated Realtek ALC1220 audio chip

Ses yongası

Realtek ALC1220

Diğer anakart özellikleri

CLR_CMOS shortcut button 2 × 3-Pin ARGB headers 1 × 4-Pin NRGB header 1 × COM port header 1 × 10-1 Pin system panel header Maxsun Sync lighting control

Üreticinin ayrıntılı teknik bilgileri

Form Factor: M-ATX (245 × 245 mm), CPU Support: AMD® AM5 socket Supports AMD® Ryzen™ 7000, 8000, and 9000 Series processors, Chipset: AMD® B850 Chipset, Memory: 2 × DIMM DDR5 slots, up to 128GB Dual-channel memory architecture Supports memory overclocking Supported speeds: 4800 / 5600(OC) / 6000(OC) / 6200(OC) / 6400(OC) / 6600(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7400(OC) / 7600(OC) / 7800(OC) / 8000(OC) / 8200(OC) / 8400(OC) / 8600(OC) / 8800(OC) MHz, Graphics Output: Display functions are supported only by processors with integrated graphics, using shared memory architecture 1 × HDMI™ 2.0 port, up to 4K @ 60Hz 1 × DisplayPort port, up to 4K @ 60Hz, Expansion Slots: From AMD Ryzen™ 9000 / 8000 / 7000 processors: 1 × PCIe x16 slot, supports up to PCIe 5.0 x16 mode When equipped with AMD Ryzen™ 7000 / 9000 Series processors, supports PCIe 5.0 x16 When equipped with AMD Ryzen™ 8000 Series processors, supports PCIe 4.0 x8 / x4 From AMD B850 Chipset: 1 × PCIe x4 slot, supports PCIe 4.0 x4 mode, Audio: Integrated Realtek ALC1220 audio chip, Networking: 1 × Realtek RTL8126 5Gb Ethernet port 1 × MTK MT7922 wireless network card, supports Wi-Fi 6E and Bluetooth® v5.4, Storage Interfaces: Supports 3 × M.2 slots and 2 × SATA 6Gb/s ports From AMD Ryzen™ 9000 / 8000 / 7000 processors: M.2_A slot (Key_M): supports PCIe 5.0 x4 / x2 mode, supports 2242 / 2280 lengths When equipped with AMD Ryzen™ 7000 / 9000 Series processors, supports PCIe 5.0 x4 When equipped with AMD Ryzen™ 8000 Series processors, supports PCIe 4.0 x4 / x2 M.2_B slot (Key_M): supports PCIe 5.0 x4 / x2 mode, supports 2242 / 2280 / 22110 lengths When equipped with AMD Ryzen™ 7000 / 9000 Series processors, supports PCIe 5.0 x4 When equipped with AMD Ryzen™ 8000 Series processors, supports PCIe 4.0 x4 / x2 From AMD B850 Chipset: M.2_C slot (Key_M): supports PCIe 4.0 x4 / x2 mode, supports 2242 / 2280 / 22110 lengths 2 × SATA 6Gb/s ports, USB Ports: Onboard USB headers: 1 × USB 20G Type-C® front panel port 1 × USB 5G 19Pin header, supports 2 additional USB 5G ports 1 × USB 2.0 9Pin header, supports 2 additional USB 2.0 ports 1 × USB 2.0 4Pin header, supports 1 additional USB 2.0 port Rear I/O: 1 × USB 10G Type-C® port, supports DisplayPort 1.4 video output up to 4K @ 60Hz 4 × USB 10G Type-A ports 4 × USB 2.0 Type-A ports, Internal Connectors: 1 × 24-Pin ATX power connector 2 × 8-Pin +12V power connectors 1 × 4-Pin CPU fan header 1 × 4-Pin PUMP water pump header, supports DC speed control 4 × 4-Pin chassis fan headers, Operating System: Windows® 11 Windows® 10 64-bit, Others: CLR_CMOS shortcut button 2 × 3-Pin ARGB headers 1 × 4-Pin NRGB header 1 × COM port header 1 × 10-1 Pin system panel header Maxsun Sync lighting control
