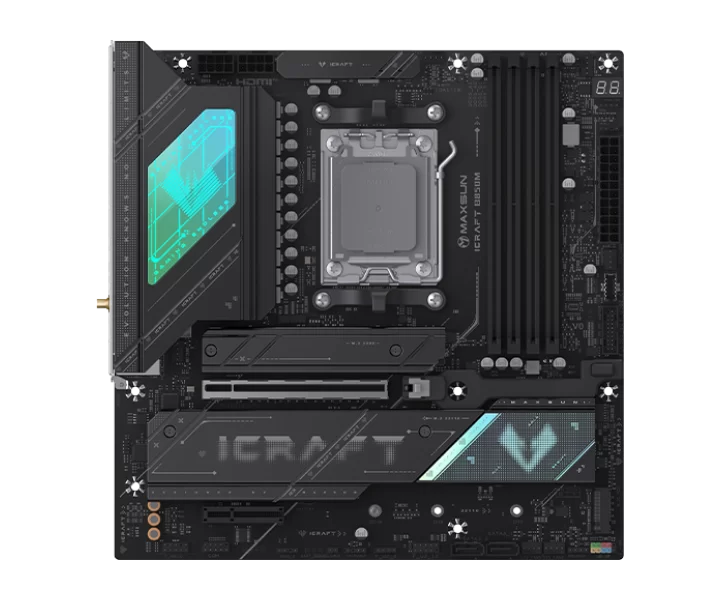

MS-iCraft B850M WIFI özellikleri ve fiyatları

MS-iCraft B850M WIFI teknik özellikleri

Model kodu

MS-iCraft B850M WIFI

İşlemci soketi

AM5

Uyumlu işlemciler

AMD® AM5 socket Compatible with AMD® Ryzen™ 7000 / 8000 / 9000 Series processors

Anakart yonga seti

AMD® B850 chipset

Anakart biçimi

Micro-ATX

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

4 × DDR5 DIMM slots, up to 256GB Dual-channel memory architecture Supports AMD® EXPO memory overclocking Supported speeds: 8000(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200(OC) / 4800 MHz

Bellek hızı ve uyumluluk koşulları

4 × DDR5 DIMM slots, up to 256GB Dual-channel memory architecture Supports AMD® EXPO memory overclocking Supported speeds: 8000(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200(OC) / 4800 MHz

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

256 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

From AMD Ryzen™ processors: 1 × PCIe x16 slot (up to PCIe 5.0 x16) Ryzen™ 7000 / 9000: PCIe 5.0 x16 Ryzen™ 8000: PCIe 4.0 x8/x4 From AMD B850 chipset: 1 × PCIe x4 slot (PCIe 4.0 x4)

PCIe şerit paylaşımı ve işlemci koşulları

From AMD Ryzen™ processors: 1 × PCIe x16 slot (up to PCIe 5.0 x16) Ryzen™ 7000 / 9000: PCIe 5.0 x16 Ryzen™ 8000: PCIe 4.0 x8/x4 From AMD B850 chipset: 1 × PCIe x4 slot (PCIe 4.0 x4)

storage Interfaces

From AMD Ryzen™ processors: M.2_A (Key M): PCIe 5.0 x4/x2, supports 2242 / 2280 Ryzen™ 7000 / 9000: PCIe 5.0 x4 Ryzen™ 8000: PCIe 4.0 x4/x2 M.2_B (Key M): PCIe 5.0 x4/x2, supports 2242 / 2280 / 22110 Ryzen™ 7000 / 9000: PCIe 5.0 x4 Ryzen™ 8000: PCIe 4.0 x4/x2 From AMD B850 chipset: M.2_C (Key M): PCIe 4.0 x4/x2, supports 2242 / 2280 / 22110 2 × SATA 6Gb/s ports

M.2 uyumluluğu ve şerit paylaşımı

From AMD Ryzen™ processors: M.2_A (Key M): PCIe 5.0 x4/x2, supports 2242 / 2280 Ryzen™ 7000 / 9000: PCIe 5.0 x4 Ryzen™ 8000: PCIe 4.0 x4/x2 M.2_B (Key M): PCIe 5.0 x4/x2, supports 2242 / 2280 / 22110 Ryzen™ 7000 / 9000: PCIe 5.0 x4 Ryzen™ 8000: PCIe 4.0 x4/x2 From AMD B850 chipset: M.2_C (Key M): PCIe 4.0 x4/x2, supports 2242 / 2280 / 22110 2 × SATA 6Gb/s ports

SATA bağlantı sayısı

2

Kablolu ağ bağlantısı

1 × Realtek RTL8126 5Gb Ethernet 1 × MTK MT7922 wireless module Supports Wi-Fi 6E & Bluetooth® 5.4

Wi-Fi

1 × Realtek RTL8126 5Gb Ethernet 1 × MTK MT7922 wireless module Supports Wi-Fi 6E & Bluetooth® 5.4

Bluetooth sürümü

5.4

USB bağlantısı

Onboard USB headers: 1 × USB Type-C® (20Gbps) 1 × USB 3.2 Gen1 19-Pin header (supports 2 × USB 5Gbps) 1 × USB 2.0 9-Pin header (supports 2 × USB 2.0) 1 × USB 2.0 4-Pin header (supports 1 × front USB 2.0 port) Rear I/O: 1 × USB Type-C® (10Gbps, supports DP 1.4 video output up to 4K @ 60Hz) 4 × USB 3.2 Gen2 Type-A (10Gbps) 4 × USB 2.0 Type-A

Dahili bağlantılar ve ön panel başlıkları

1 × 24-Pin ATX power 2 × 8-Pin +12V CPU power 2 × 5V 3-Pin ARGB headers 1 × 4-Pin NRGB header 1 × COM port header 1 × CLR_CMOS reset header 1 × 4-Pin CPU_FAN header 1 × 4-Pin PUMP header (DC mode supported) 4 × 4-Pin SYS_FAN headers

Güç bağlantıları

1 × 24-Pin ATX power 2 × 8-Pin +12V CPU power 2 × 5V 3-Pin ARGB headers 1 × 4-Pin NRGB header 1 × COM port header 1 × CLR_CMOS reset header 1 × 4-Pin CPU_FAN header 1 × 4-Pin PUMP header (DC mode supported) 4 × 4-Pin SYS_FAN headers

Görüntü çıkışları ve kullanım koşulları

1 × HDMI™ 2.0 (up to 4K @ 60Hz) 1 × DisplayPort 1.4 (up to 4K @ 60Hz)

Ses çıkışı

Realtek ALC1220 HD Audio Codec

Ses yongası

Realtek ALC1220

Üreticinin ayrıntılı teknik bilgileri

Model: MS-iCraft B850M WIFI, Form Factor: M-ATX (Micro-ATX) Size: 245mm × 245mm, CPU Support: AMD® AM5 socket Compatible with AMD® Ryzen™ 7000 / 8000 / 9000 Series processors, Chipset: AMD® B850 chipset, Memory: 4 × DDR5 DIMM slots, up to 256GB Dual-channel memory architecture Supports AMD® EXPO memory overclocking Supported speeds: 8000(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200(OC) / 4800 MHz, Graphics Output: 1 × HDMI™ 2.0 (up to 4K @ 60Hz) 1 × DisplayPort 1.4 (up to 4K @ 60Hz), Expansion Slots: From AMD Ryzen™ processors: 1 × PCIe x16 slot (up to PCIe 5.0 x16) Ryzen™ 7000 / 9000: PCIe 5.0 x16 Ryzen™ 8000: PCIe 4.0 x8/x4 From AMD B850 chipset: 1 × PCIe x4 slot (PCIe 4.0 x4), Storage Interfaces: From AMD Ryzen™ processors: M.2_A (Key M): PCIe 5.0 x4/x2, supports 2242 / 2280 Ryzen™ 7000 / 9000: PCIe 5.0 x4 Ryzen™ 8000: PCIe 4.0 x4/x2 M.2_B (Key M): PCIe 5.0 x4/x2, supports 2242 / 2280 / 22110 Ryzen™ 7000 / 9000: PCIe 5.0 x4 Ryzen™ 8000: PCIe 4.0 x4/x2 From AMD B850 chipset: M.2_C (Key M): PCIe 4.0 x4/x2, supports 2242 / 2280 / 22110 2 × SATA 6Gb/s ports, Networking: 1 × Realtek RTL8126 5Gb Ethernet 1 × MTK MT7922 wireless module Supports Wi-Fi 6E & Bluetooth® 5.4, USB Ports: Onboard USB headers: 1 × USB Type-C® (20Gbps) 1 × USB 3.2 Gen1 19-Pin header (supports 2 × USB 5Gbps) 1 × USB 2.0 9-Pin header (supports 2 × USB 2.0) 1 × USB 2.0 4-Pin header (supports 1 × front USB 2.0 port) Rear I/O: 1 × USB Type-C® (10Gbps, supports DP 1.4 video output up to 4K @ 60Hz) 4 × USB 3.2 Gen2 Type-A (10Gbps) 4 × USB 2.0 Type-A, Audio: Realtek ALC1220 HD Audio Codec, Internal Connectors & Features: 1 × 24-Pin ATX power 2 × 8-Pin +12V CPU power 2 × 5V 3-Pin ARGB headers 1 × 4-Pin NRGB header 1 × COM port header 1 × CLR_CMOS reset header 1 × 4-Pin CPU_FAN header 1 × 4-Pin PUMP header (DC mode supported) 4 × 4-Pin SYS_FAN headers
