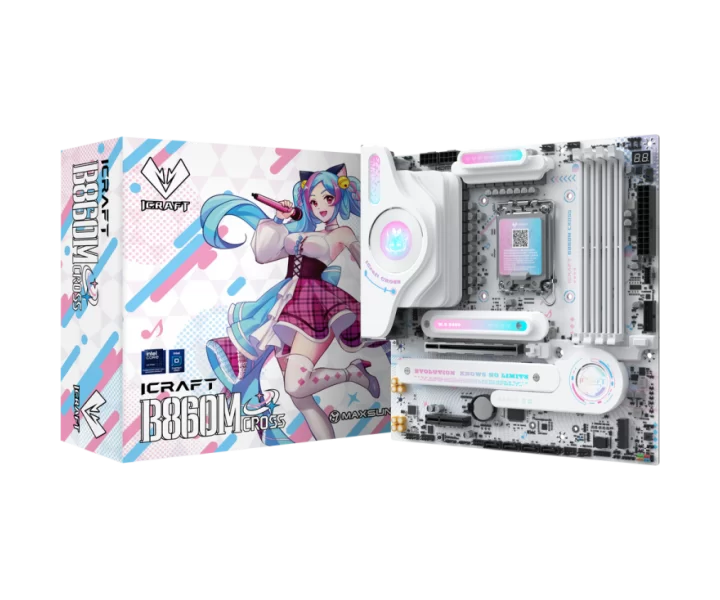

MS-iCraft B860M CROSS özellikleri ve fiyatları

MS-iCraft B860M CROSS teknik özellikleri

Model kodu

MS-iCraft B860M CROSS

İşlemci soketi

LGA1851

Uyumlu işlemciler

Intel® LGA1851 socket, compatible with Intel® Core™ Ultra processors

Anakart yonga seti

Intel® B860 chipset

Anakart biçimi

Micro-ATX

Boyutlar

M-ATX (245 x 245mm)

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

4 x DIMM DDR5 memory slots, up to 192GB capacity Dual-channel memory architecture support Memory XMP support Memory frequency support: 4800/5600/6400/6600(OC)/6800(OC)/7000(OC)/7200(OC)/7400(OC)/7600(OC)/8000(OC)/ 8200(OC)/8400(OC)/8600(OC)/8800(OC)/9066(OC) MHz

Bellek hızı ve uyumluluk koşulları

4 x DIMM DDR5 memory slots, up to 192GB capacity Dual-channel memory architecture support Memory XMP support Memory frequency support: 4800/5600/6400/6600(OC)/6800(OC)/7000(OC)/7200(OC)/7400(OC)/7600(OC)/8000(OC)/ 8200(OC)/8400(OC)/8600(OC)/8800(OC)/9066(OC) MHz

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

192 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

1 x PCIe x16 slot (supports PCIe 5.0 x16 mode) 1 x PCIe x4 slot (supports PCIe 4.0 x4 mode)

PCIe şerit paylaşımı ve işlemci koşulları

1 x PCIe x16 slot (supports PCIe 5.0 x16 mode) 1 x PCIe x4 slot (supports PCIe 4.0 x4 mode)

storage Interfaces

1 x M.2 slot, supports PCIe 5.0 x4/x2 mode, supports 2242/2280 lengths 2 x M.2 slots, supports PCIe 4.0 x4/x2 mode, supports 2242/2280/22110 lengths 4 x SATA 6Gb/s connectors

M.2 uyumluluğu ve şerit paylaşımı

1 x M.2 slot, supports PCIe 5.0 x4/x2 mode, supports 2242/2280 lengths 2 x M.2 slots, supports PCIe 4.0 x4/x2 mode, supports 2242/2280/22110 lengths 4 x SATA 6Gb/s connectors

SATA bağlantı sayısı

4

Kablolu ağ bağlantısı

Integrated REALTEK RTL8126 5Gb Ethernet chip Onboard Intel® AX211 wireless network card, supports Wi-Fi 6E and Bluetooth 5.3

Wi-Fi

Integrated REALTEK RTL8126 5Gb Ethernet chip Onboard Intel® AX211 wireless network card, supports Wi-Fi 6E and Bluetooth 5.3

Bluetooth sürümü

5.3

USB bağlantısı

Onboard USB: 1 x USB-C® 20G front connector 1 x USB 5G 19-pin header, supports 2 additional USB 5G ports 1 x USB 2.0 9-pin header, supports 2 additional USB 2.0 ports 1 x USB 2.0 4-pin header, supports 1 additional USB 2.0 port Rear USB: 1 x USB4® 40G port (up to 15W power output) 8 x USB 10G Type-A ports

Görüntü çıkışları ve kullanım koşulları

1 x HDMI™ 2.0 port, up to 4K@60Hz resolution 1 x DP 1.4 port, up to 4K@120Hz resolution

Ses çıkışı

Integrated REALTEK ALC897 audio chip

Ses yongası

REALTEK ALC897

Diğer anakart özellikleri

1 x 24-pin ATX power connector 2 x 8-pin +12V power connectors 2 x 3-pin ARGB headers 1 x 4-pin NRGB header 1 x COM port header 1 x CLR CMOS reset header 1 x 4-pin CPU fan header 1 x 4-pin PUMP water pump header (supports DC speed control) 4 x 4-pin chassis fan headers

Üreticinin ayrıntılı teknik bilgileri

Model: MS-iCraft B860M CROSS, Motherboard Size: M-ATX (245 x 245mm), CPU Socket: Intel® LGA1851 socket, compatible with Intel® Core™ Ultra processors, Chipset: Intel® B860 chipset, Memory: 4 x DIMM DDR5 memory slots, up to 192GB capacity Dual-channel memory architecture support Memory XMP support Memory frequency support: 4800/5600/6400/6600(OC)/6800(OC)/7000(OC)/7200(OC)/7400(OC)/7600(OC)/8000(OC)/ 8200(OC)/8400(OC)/8600(OC)/8800(OC)/9066(OC) MHz, Display: 1 x HDMI™ 2.0 port, up to 4K@60Hz resolution 1 x DP 1.4 port, up to 4K@120Hz resolution, Expansion Slots: 1 x PCIe x16 slot (supports PCIe 5.0 x16 mode) 1 x PCIe x4 slot (supports PCIe 4.0 x4 mode), Audio: Integrated REALTEK ALC897 audio chip, Network: Integrated REALTEK RTL8126 5Gb Ethernet chip Onboard Intel® AX211 wireless network card, supports Wi-Fi 6E and Bluetooth 5.3, Storage: 1 x M.2 slot, supports PCIe 5.0 x4/x2 mode, supports 2242/2280 lengths 2 x M.2 slots, supports PCIe 4.0 x4/x2 mode, supports 2242/2280/22110 lengths 4 x SATA 6Gb/s connectors, USB Ports: Onboard USB: 1 x USB-C® 20G front connector 1 x USB 5G 19-pin header, supports 2 additional USB 5G ports 1 x USB 2.0 9-pin header, supports 2 additional USB 2.0 ports 1 x USB 2.0 4-pin header, supports 1 additional USB 2.0 port Rear USB: 1 x USB4® 40G port (up to 15W power output) 8 x USB 10G Type-A ports, Other Features: 1 x 24-pin ATX power connector 2 x 8-pin +12V power connectors 2 x 3-pin ARGB headers 1 x 4-pin NRGB header 1 x COM port header 1 x CLR CMOS reset header 1 x 4-pin CPU fan header 1 x 4-pin PUMP water pump header (supports DC speed control) 4 x 4-pin chassis fan headers
