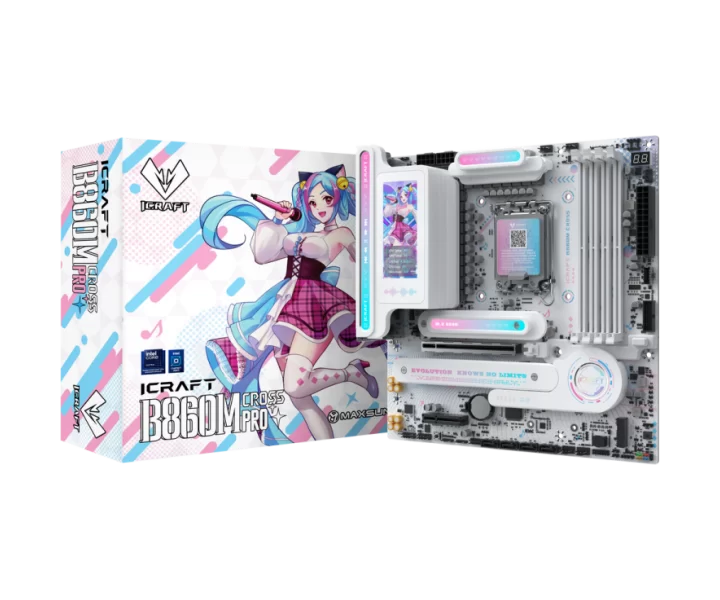

MS-iCraft B860M CROSS PRO özellikleri ve fiyatları

MS-iCraft B860M CROSS PRO teknik özellikleri

Model kodu

MS-iCraft B860M CROSS PRO

İşlemci soketi

LGA1851

Uyumlu işlemciler

Intel® LGA1851 socket, compatible with Intel® Core™ Ultra processors

Anakart yonga seti

Intel® B860 chipset

Anakart biçimi

Micro-ATX

Boyutlar

M-ATX (245*245mm)

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

4 DIMM DDR5 memory slots, max capacity of 192GB Supports dual-channel memory architecture Supports memory XMP Memory frequency: 4800/5600/6400/6600(OC)/6800(OC)/7000(OC)/7200(OC)/7400(OC)/7600(OC)/8000(OC)/8200(OC)/8400(OC)/8600(OC)/8800(OC)/9066(OC) MHz

Bellek hızı ve uyumluluk koşulları

4 DIMM DDR5 memory slots, max capacity of 192GB Supports dual-channel memory architecture Supports memory XMP Memory frequency: 4800/5600/6400/6600(OC)/6800(OC)/7000(OC)/7200(OC)/7400(OC)/7600(OC)/8000(OC)/8200(OC)/8400(OC)/8600(OC)/8800(OC)/9066(OC) MHz

RAM yuvası sayısı

4

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

1 x PCIe x16 slot (supports PCIe 5.0 x16 mode) 1 x PCIe x4 slot (supports PCIe 4.0 x4 mode)

PCIe şerit paylaşımı ve işlemci koşulları

1 x PCIe x16 slot (supports PCIe 5.0 x16 mode) 1 x PCIe x4 slot (supports PCIe 4.0 x4 mode)

storage Interfaces

1 x M.2 slot, supports PCIe 5.0 x4/x2 mode, compatible with 2242/2280 lengths 2 x M.2 slots, supports PCIe 4.0 x4/x2 mode, compatible with 2242/2280/22110 lengths 4 x SATA 6Gb/s ports

M.2 uyumluluğu ve şerit paylaşımı

1 x M.2 slot, supports PCIe 5.0 x4/x2 mode, compatible with 2242/2280 lengths 2 x M.2 slots, supports PCIe 4.0 x4/x2 mode, compatible with 2242/2280/22110 lengths 4 x SATA 6Gb/s ports

SATA bağlantı sayısı

4

Kablolu ağ bağlantısı

Integrated REALTEK RTL8126 5Gb Ethernet chip Onboard Intel® BE200 wireless network card, supporting Wi-Fi 7 and Bluetooth 5.4

Wi-Fi

Integrated REALTEK RTL8126 5Gb Ethernet chip Onboard Intel® BE200 wireless network card, supporting Wi-Fi 7 and Bluetooth 5.4

Bluetooth sürümü

5.4

USB bağlantısı

Onboard USB: 1 x USB-C® 20G front port 1 x USB 5G 19-pin header (supports 2 additional 5G USB ports) 1 x USB 2.0 9-pin header (supports 2 additional 2.0 USB ports) 1 x USB 2.0 4-pin header (supports 1 additional 2.0 USB port) Rear USB: 1 x USB4® 40G port (supports up to 15W power output) 8 x USB 10G Type-A ports

Görüntü çıkışları ve kullanım koşulları

1 x HDMI™ 2.0 port, supports up to 4K@60Hz resolution 1 x DP 1.4 port, supports up to 4K@120Hz resolution

Ses çıkışı

Realtek ALC1220 HD audio codec

Ses yongası

Realtek ALC1220

Diğer anakart özellikleri

1 x 24-pin ATX power connector 2 x 8-pin +12V power connectors 2 x 3-pin ARGB connectors 1 x 4-pin NRGB connector 1 x COM port header 1 x CLR CMOS reset header 1 x 4-pin CPU fan header 1 x 4-pin PUMP header (supports DC speed control) 4 x 4-pin chassis fan headers

Üreticinin ayrıntılı teknik bilgileri

Model: MS-iCraft B860M CROSS PRO, Motherboard Size: M-ATX (245*245mm), CPU Socket: Intel® LGA1851 socket, compatible with Intel® Core™ Ultra processors, Chipset: Intel® B860 chipset, Memory: 4 DIMM DDR5 memory slots, max capacity of 192GB Supports dual-channel memory architecture Supports memory XMP Memory frequency: 4800/5600/6400/6600(OC)/6800(OC)/7000(OC)/7200(OC)/7400(OC)/7600(OC)/8000(OC)/8200(OC)/8400(OC)/8600(OC)/8800(OC)/9066(OC) MHz, Display: 1 x HDMI™ 2.0 port, supports up to 4K@60Hz resolution 1 x DP 1.4 port, supports up to 4K@120Hz resolution, Expansion Ports: 1 x PCIe x16 slot (supports PCIe 5.0 x16 mode) 1 x PCIe x4 slot (supports PCIe 4.0 x4 mode), Audio: Realtek ALC1220 HD audio codec, Networking: Integrated REALTEK RTL8126 5Gb Ethernet chip Onboard Intel® BE200 wireless network card, supporting Wi-Fi 7 and Bluetooth 5.4, Storage: 1 x M.2 slot, supports PCIe 5.0 x4/x2 mode, compatible with 2242/2280 lengths 2 x M.2 slots, supports PCIe 4.0 x4/x2 mode, compatible with 2242/2280/22110 lengths 4 x SATA 6Gb/s ports, USB Ports: Onboard USB: 1 x USB-C® 20G front port 1 x USB 5G 19-pin header (supports 2 additional 5G USB ports) 1 x USB 2.0 9-pin header (supports 2 additional 2.0 USB ports) 1 x USB 2.0 4-pin header (supports 1 additional 2.0 USB port) Rear USB: 1 x USB4® 40G port (supports up to 15W power output) 8 x USB 10G Type-A ports, Other Parameters: 1 x 24-pin ATX power connector 2 x 8-pin +12V power connectors 2 x 3-pin ARGB connectors 1 x 4-pin NRGB connector 1 x COM port header 1 x CLR CMOS reset header 1 x 4-pin CPU fan header 1 x 4-pin PUMP header (supports DC speed control) 4 x 4-pin chassis fan headers

Güncel mağaza teklifleri

Son 48 saat içinde doğrulanmış, stokta mağaza teklifi yok. Eski fiyatlar güncel teklif olarak gösterilmez.
