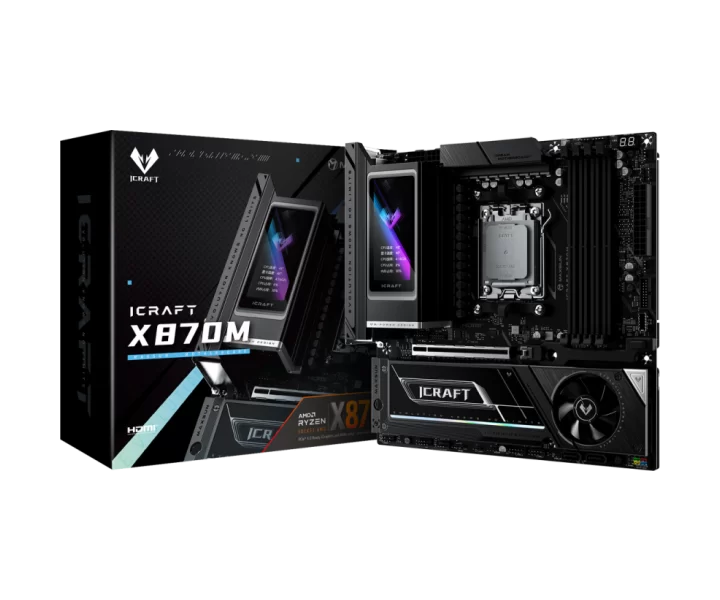

MS-iCraft X870M özellikleri ve fiyatları

MS-iCraft X870M teknik özellikleri

Model kodu

MS-iCraft X870M

İşlemci soketi

AM5

Uyumlu işlemciler

AMD® AM5 socket Compatible with AMD Ryzen™ 7000 / 8000 / 9000 Series processors

Anakart yonga seti

AMD® X870 Chipset

Anakart biçimi

Micro-ATX

Boyutlar

M-ATX (245 × 245 mm)

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

4 × DIMM DDR5, up to 192GB Dual-channel memory architecture Supports AMD® EXPO memory overclocking Supported speeds: 4800 / 5200 / 5600(OC) / 5800(OC) / 6000(OC) / 6200(OC) / 6400(OC) / 6800(OC) / 7200(OC) / 7600(OC) / 8000(OC) / 8200(OC) / 8400(OC) MHz

Bellek hızı ve uyumluluk koşulları

4 × DIMM DDR5, up to 192GB Dual-channel memory architecture Supports AMD® EXPO memory overclocking Supported speeds: 4800 / 5200 / 5600(OC) / 5800(OC) / 6000(OC) / 6200(OC) / 6400(OC) / 6800(OC) / 7200(OC) / 7600(OC) / 8000(OC) / 8200(OC) / 8400(OC) MHz

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

192 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

From AMD® Ryzen™ processors: 1 × PCIe x16 slot (supports PCIe 5.0 x16 mode)

PCIe şerit paylaşımı ve işlemci koşulları

From AMD® Ryzen™ processors: 1 × PCIe x16 slot (supports PCIe 5.0 x16 mode)

storage Interfaces

Supports 3 × M.2 slots and 2 × SATA 6Gb/s ports From AMD® Ryzen™ processor: M.2_A (Key M): PCIe 5.0 x4, 2280 From AMD® X870 chipset: M.2_B (Key M): PCIe 4.0 x4, 2280 M.2_C (Key M): PCIe 4.0 x4, 2280 (rear-mounted)

M.2 uyumluluğu ve şerit paylaşımı

Supports 3 × M.2 slots and 2 × SATA 6Gb/s ports From AMD® Ryzen™ processor: M.2_A (Key M): PCIe 5.0 x4, 2280 From AMD® X870 chipset: M.2_B (Key M): PCIe 4.0 x4, 2280 M.2_C (Key M): PCIe 4.0 x4, 2280 (rear-mounted)

Depolama için M.2 yuvası sayısı

3

SATA bağlantı sayısı

2

Kablolu ağ bağlantısı

1 × Realtek RTL8125 5Gb Ethernet port 1 × MediaTek MT7925 WiFi 7 + Bluetooth 5.4 module

Wi-Fi

1 × Realtek RTL8125 5Gb Ethernet port 1 × MediaTek MT7925 WiFi 7 + Bluetooth 5.4 module

Bluetooth sürümü

5.4

USB bağlantısı

Onboard USB (7 total): 1 × USB 5G header (supports 2 ports) 2 × USB 2.0 headers (supports 4 ports) 1 × USB-C 10G front-panel port Rear USB (10 total): 6 × USB 5G Type-A 2 × USB 2.0 Type-A 2 × USB4 40G

Güç bağlantıları

1 × 24-pin ATX power connector 2 × 8-pin +12V CPU power connectors

Görüntü çıkışları ve kullanım koşulları

1 × HDMI™ 2.0 (up to 4K@60Hz) 1 × DP 1.4 (up to 4K@120Hz or 8K@30Hz) Actual support varies by CPU (see AMD.com)

Ses çıkışı

Realtek ALC1220 audio chipset

Ses yongası

Realtek ALC1220

Fan ve pompa bağlantıları

1 × 4-pin CPU_FAN 1 × 4-pin PUMP 1 × 4-pin MEM_FAN 3 × 4-pin SYS_FAN

Diğer anakart özellikleri

CLR_CMOS reset button

Üreticinin ayrıntılı teknik bilgileri

Model: MS-iCraft X870M, Form Factor: M-ATX (245 × 245 mm), CPU Support: AMD® AM5 socket Compatible with AMD Ryzen™ 7000 / 8000 / 9000 Series processors, Chipset: AMD® X870 Chipset, Memory: 4 × DIMM DDR5, up to 192GB Dual-channel memory architecture Supports AMD® EXPO memory overclocking Supported speeds: 4800 / 5200 / 5600(OC) / 5800(OC) / 6000(OC) / 6200(OC) / 6400(OC) / 6800(OC) / 7200(OC) / 7600(OC) / 8000(OC) / 8200(OC) / 8400(OC) MHz, Display Outputs: 1 × HDMI™ 2.0 (up to 4K@60Hz) 1 × DP 1.4 (up to 4K@120Hz or 8K@30Hz) Actual support varies by CPU (see AMD.com), Expansion Slots: From AMD® Ryzen™ processors: 1 × PCIe x16 slot (supports PCIe 5.0 x16 mode), Audio: Realtek ALC1220 audio chipset, Networking: 1 × Realtek RTL8125 5Gb Ethernet port 1 × MediaTek MT7925 WiFi 7 + Bluetooth 5.4 module, Storage: Supports 3 × M.2 slots and 2 × SATA 6Gb/s ports From AMD® Ryzen™ processor: M.2_A (Key M): PCIe 5.0 x4, 2280 From AMD® X870 chipset: M.2_B (Key M): PCIe 4.0 x4, 2280 M.2_C (Key M): PCIe 4.0 x4, 2280 (rear-mounted), USB: Onboard USB (7 total): 1 × USB 5G header (supports 2 ports) 2 × USB 2.0 headers (supports 4 ports) 1 × USB-C 10G front-panel port Rear USB (10 total): 6 × USB 5G Type-A 2 × USB 2.0 Type-A 2 × USB4 40G, Power Connectors: 1 × 24-pin ATX power connector 2 × 8-pin +12V CPU power connectors, Lighting: 3 × 5V 3-pin ARGB headers, Other Features: CLR_CMOS reset button, Fan Headers: 1 × 4-pin CPU_FAN 1 × 4-pin PUMP 1 × 4-pin MEM_FAN 3 × 4-pin SYS_FAN

Güncel mağaza teklifleri

Son 48 saat içinde doğrulanmış, stokta mağaza teklifi yok. Eski fiyatlar güncel teklif olarak gösterilmez.
