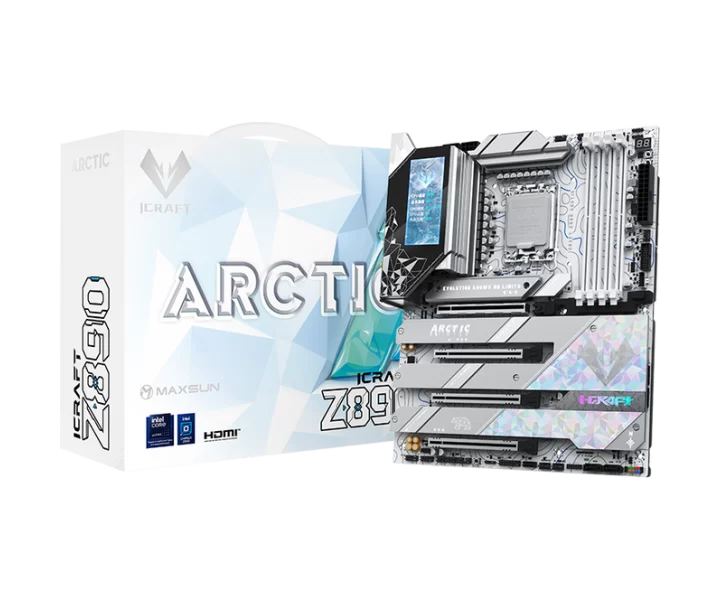

MS-iCraft Z890 ARCTIC özellikleri ve fiyatları

MS-iCraft Z890 ARCTIC teknik özellikleri

Model kodu

MS-iCraft Z890 ARCTIC

İşlemci soketi

LGA1851

Uyumlu işlemciler

Intel® LGA1851 socket, compatible with Intel® Core™ Ultra processors

Anakart yonga seti

Intel® Z890 Chipset

Anakart biçimi

ATX

Boyutlar

ATX (305 × 245 mm)

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

4 × DIMM DDR5 slots, supporting up to 256GB Dual-channel memory support XMP Support: 4800/5600/6400/7600/OC/8000(OC)/8200(OC)/8400(OC)/8600(OC)/8800(OC) MHz

Bellek hızı ve uyumluluk koşulları

4 × DIMM DDR5 slots, supporting up to 256GB Dual-channel memory support XMP Support: 4800/5600/6400/7600/OC/8000(OC)/8200(OC)/8400(OC)/8600(OC)/8800(OC) MHz

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

256 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

1 × PCIe 5.0 x16 slot (configurable as x8/x8, x8/x4, x4/x4) 1 × PCIe x16 slot (physical size x16, supports PCIe 5.0 x8 or PCIe 4.0 x4) 2 × PCIe x16 slots (supporting PCIe 4.0 x4)

PCIe şerit paylaşımı ve işlemci koşulları

1 × PCIe 5.0 x16 slot (configurable as x8/x8, x8/x4, x4/x4) 1 × PCIe x16 slot (physical size x16, supports PCIe 5.0 x8 or PCIe 4.0 x4) 2 × PCIe x16 slots (supporting PCIe 4.0 x4)

storage Interfaces

1 × M.2 slot, supporting PCIe 5.0 x4/x2 mode, compatible with 2242/2280/2280K lengths 3 × M.2 slots, supporting PCIe 4.0 x4/x2 mode, compatible with 2242/2280/22110 lengths 4 × SATA 6Gb/s ports

M.2 uyumluluğu ve şerit paylaşımı

1 × M.2 slot, supporting PCIe 5.0 x4/x2 mode, compatible with 2242/2280/2280K lengths 3 × M.2 slots, supporting PCIe 4.0 x4/x2 mode, compatible with 2242/2280/22110 lengths 4 × SATA 6Gb/s ports

SATA bağlantı sayısı

4

Kablolu ağ bağlantısı

Integrated Realtek RTL8126 network chip Integrated Intel® BE200 Wi-Fi module, supporting Wi-Fi 7 and Bluetooth 5.4

Wi-Fi

Integrated Realtek RTL8126 network chip Integrated Intel® BE200 Wi-Fi module, supporting Wi-Fi 7 and Bluetooth 5.4

Bluetooth sürümü

5.4

USB bağlantısı

Front Panel USB: 1 × USB 20G Type-C® header 1 × USB 5G 19-pin header, supporting 3 × USB 5G ports (USB 3.2 Gen 1) 1 × USB 2.0 9-pin header, supporting 2 × USB 2.0 ports Rear Panel USB: 2 × USB 40G Type-C® ports (one supporting 15W charging) 9 × USB 10G Type-A ports

Görüntü çıkışları ve kullanım koşulları

1 × HDMI™ 2.1, supporting up to 4K at 120Hz 1 × DP1.4, supporting up to 8K at 120Hz

Ses çıkışı

Integrated Realtek ALC1220 audio chip

Ses yongası

Realtek ALC1220

Diğer anakart özellikleri

1 × 24-pin ATX Power Connector 2 × 8-pin +12V Power Connectors 2 × 3-Pin ARGB Headers 1 × 4-Pin NRBG Header 1 × COM Port Header 1 × CLR_CMOS Reset Button 1 × 4-Pin CPU Fan Header 1 × 4-Pin PUMP Header (supports DC and PWM modes) 4 × 4-Pin System Fan Headers

Üreticinin ayrıntılı teknik bilgileri

Model: MS-iCraft Z890 Arctic, Form Factor: ATX (305 × 245 mm), CPU Socket: Intel® LGA1851 socket, compatible with Intel® Core™ Ultra processors, Chipset: Intel® Z890 Chipset, Memory: 4 × DIMM DDR5 slots, supporting up to 256GB Dual-channel memory support XMP Support: 4800/5600/6400/7600/OC/8000(OC)/8200(OC)/8400(OC)/8600(OC)/8800(OC) MHz, Display Outputs: 1 × HDMI™ 2.1, supporting up to 4K at 120Hz 1 × DP1.4, supporting up to 8K at 120Hz, Expansion Slots: 1 × PCIe 5.0 x16 slot (configurable as x8/x8, x8/x4, x4/x4) 1 × PCIe x16 slot (physical size x16, supports PCIe 5.0 x8 or PCIe 4.0 x4) 2 × PCIe x16 slots (supporting PCIe 4.0 x4), Audio: Integrated Realtek ALC1220 audio chip, Networking: Integrated Realtek RTL8126 network chip Integrated Intel® BE200 Wi-Fi module, supporting Wi-Fi 7 and Bluetooth 5.4, Storage: 1 × M.2 slot, supporting PCIe 5.0 x4/x2 mode, compatible with 2242/2280/2280K lengths 3 × M.2 slots, supporting PCIe 4.0 x4/x2 mode, compatible with 2242/2280/22110 lengths 4 × SATA 6Gb/s ports, USB Ports: Front Panel USB: 1 × USB 20G Type-C® header 1 × USB 5G 19-pin header, supporting 3 × USB 5G ports (USB 3.2 Gen 1) 1 × USB 2.0 9-pin header, supporting 2 × USB 2.0 ports Rear Panel USB: 2 × USB 40G Type-C® ports (one supporting 15W charging) 9 × USB 10G Type-A ports, Additional Features: 1 × 24-pin ATX Power Connector 2 × 8-pin +12V Power Connectors 2 × 3-Pin ARGB Headers 1 × 4-Pin NRBG Header 1 × COM Port Header 1 × CLR_CMOS Reset Button 1 × 4-Pin CPU Fan Header 1 × 4-Pin PUMP Header (supports DC and PWM modes) 4 × 4-Pin System Fan Headers

Güncel mağaza teklifleri

Son 48 saat içinde doğrulanmış, stokta mağaza teklifi yok. Eski fiyatlar güncel teklif olarak gösterilmez.
