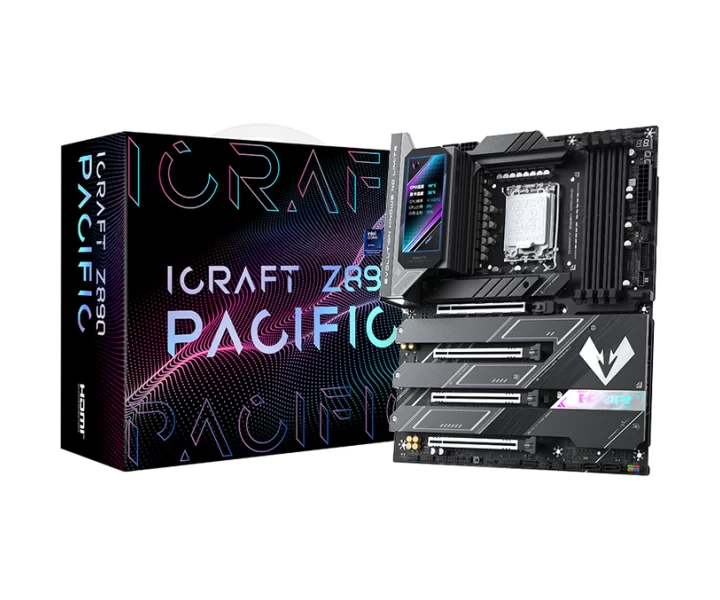

MS-iCraft Z890 PACIFIC özellikleri ve fiyatları

MS-iCraft Z890 PACIFIC teknik özellikleri

Model kodu

MS-iCraft Z890 PACIFIC

İşlemci soketi

LGA1851

Uyumlu işlemciler

Intel® LGA1851, compatible with Intel® Core™ Ultra processors

Anakart yonga seti

Intel® Z890

Anakart biçimi

ATX

Boyutlar

ATX (305 x 245mm)

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

4 x DIMM DDR5 slots, supporting dual-channel up to 256GB Memory speeds: XMP 4800/5600/6400/7600 (OC)/8000 (OC)/8200 (OC)/8400 (OC)/8600 (OC)/8800 (OC) MHz

Bellek hızı ve uyumluluk koşulları

4 x DIMM DDR5 slots, supporting dual-channel up to 256GB Memory speeds: XMP 4800/5600/6400/7600 (OC)/8000 (OC)/8200 (OC)/8400 (OC)/8600 (OC)/8800 (OC) MHz

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

256 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

1 x PCIe 5.0 x16 slot (splittable to X8+X8/X8+X4+X4) 1 x PCIe 5.0 x16 slot (supports PCIe 5.0 x8 or split to PCIe 5.0 x4+x4) 2 x PCIe 4.0 x16 slots (supporting PCIe 4.0 x4)

PCIe şerit paylaşımı ve işlemci koşulları

1 x PCIe 5.0 x16 slot (splittable to X8+X8/X8+X4+X4) 1 x PCIe 5.0 x16 slot (supports PCIe 5.0 x8 or split to PCIe 5.0 x4+x4) 2 x PCIe 4.0 x16 slots (supporting PCIe 4.0 x4)

storage Interfaces

1 x M.2 slot (PCIe 5.0 x4/x2, supports 2242/2280 lengths) 3 x M.2 slots (PCIe 4.0 x4/x2, supports 2242/2280/22110 lengths) 4 x SATA 6Gb/s ports 1 x SFF-8654 4i interface (supports PCIe 4.0 x4/x2 or 4 x SATA 6Gb/s)

M.2 uyumluluğu ve şerit paylaşımı

1 x M.2 slot (PCIe 5.0 x4/x2, supports 2242/2280 lengths) 3 x M.2 slots (PCIe 4.0 x4/x2, supports 2242/2280/22110 lengths) 4 x SATA 6Gb/s ports 1 x SFF-8654 4i interface (supports PCIe 4.0 x4/x2 or 4 x SATA 6Gb/s)

SATA bağlantı sayısı

4

Kablolu ağ bağlantısı

Realtek RTL8126 Ethernet LAN Intel® BE200 Wi-Fi card supporting Wi-Fi 7 and Bluetooth 5.4

Wi-Fi

Realtek RTL8126 Ethernet LAN Intel® BE200 Wi-Fi card supporting Wi-Fi 7 and Bluetooth 5.4

Bluetooth sürümü

5.4

USB bağlantısı

Onboard: 1 x USB 20G Type-C® front panel port 1 x USB 5G 19Pin header (supports 2 additional USB 5G ports) 1 x USB 2.0 9Pin header (supports 2 additional USB 2.0 ports) Rear Panel: 2 x USB 40G Type-C® ports (supports up to 15W power output) 9 x USB 10G Type-A ports

Görüntü çıkışları ve kullanım koşulları

1 x HDMI™ 2.1 (up to 4K @120Hz) 1 x DisplayPort 1.4 (up to 4K @120Hz)

Ses çıkışı

Integrated Realtek ALC1220 Audio Codec

Ses yongası

Realtek ALC1220

Üreticinin ayrıntılı teknik bilgileri

Form Factor: ATX (305 x 245mm), CPU Socket: Intel® LGA1851, compatible with Intel® Core™ Ultra processors, Chipset: Intel® Z890, Memory: 4 x DIMM DDR5 slots, supporting dual-channel up to 256GB Memory speeds: XMP 4800/5600/6400/7600 (OC)/8000 (OC)/8200 (OC)/8400 (OC)/8600 (OC)/8800 (OC) MHz, Graphics Support: 1 x HDMI™ 2.1 (up to 4K @120Hz) 1 x DisplayPort 1.4 (up to 4K @120Hz), Expansion Slots: 1 x PCIe 5.0 x16 slot (splittable to X8+X8/X8+X4+X4) 1 x PCIe 5.0 x16 slot (supports PCIe 5.0 x8 or split to PCIe 5.0 x4+x4) 2 x PCIe 4.0 x16 slots (supporting PCIe 4.0 x4), Audio: Integrated Realtek ALC1220 Audio Codec, Networking: Realtek RTL8126 Ethernet LAN Intel® BE200 Wi-Fi card supporting Wi-Fi 7 and Bluetooth 5.4, Storage: 1 x M.2 slot (PCIe 5.0 x4/x2, supports 2242/2280 lengths) 3 x M.2 slots (PCIe 4.0 x4/x2, supports 2242/2280/22110 lengths) 4 x SATA 6Gb/s ports 1 x SFF-8654 4i interface (supports PCIe 4.0 x4/x2 or 4 x SATA 6Gb/s), USB Ports: Onboard: 1 x USB 20G Type-C® front panel port 1 x USB 5G 19Pin header (supports 2 additional USB 5G ports) 1 x USB 2.0 9Pin header (supports 2 additional USB 2.0 ports) Rear Panel: 2 x USB 40G Type-C® ports (supports up to 15W power output) 9 x USB 10G Type-A ports, Additional Connectors: 1 x 24 Pin ATX power connector 2 x 8 Pin +12V power connectors 2 x 3 Pin ARGB headers 1 x 4 Pin NRGB header 1 x COM port header 1 x CLR CMOS reset header 1 x 4 Pin CPU fan header 1 x 4 Pin Pump header (supports DC adjustment) 4 x 4 Pin chassis fan headers, Operating System: Supports Windows 10 64-bit, Windows 11 64-bit, Ubuntu 64-bit
