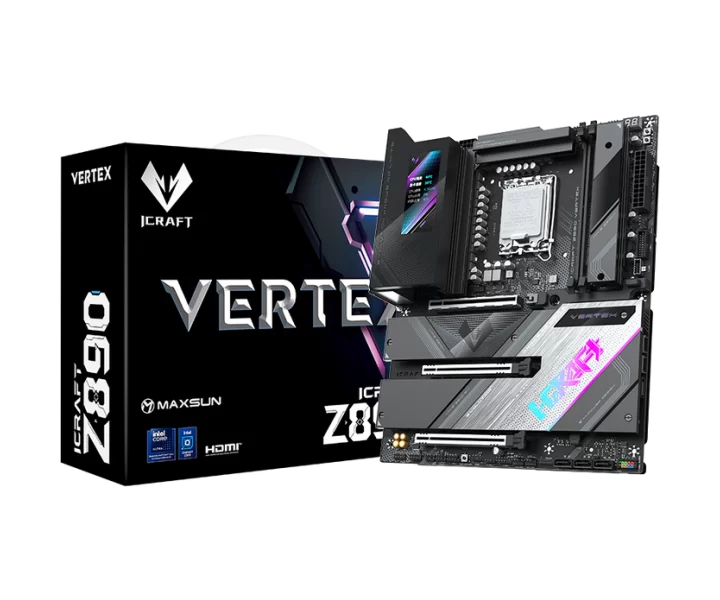

MS-iCraft Z890 VERTEX özellikleri ve fiyatları

MS-iCraft Z890 VERTEX teknik özellikleri

Model kodu

MS-iCraft Z890 VERTEX

İşlemci soketi

LGA1851

Uyumlu işlemciler

Intel® LGA1851, compatible with Intel® Core™ Ultra processors

Anakart yonga seti

Intel® Z890

Anakart biçimi

ATX

Boyutlar

ATX (305 x 245mm)

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

2 x DIMM DDR5 slots, supporting up to 128GB Dual-channel architecture Supports XMP profiles at frequencies: 5600/5800/6000/7600 (OC), 8000 (OC)/8200 (OC)/8400 (OC)/8600 (OC)/9000 (OC)/9200 (OC) MHz

Bellek hızı ve uyumluluk koşulları

2 x DIMM DDR5 slots, supporting up to 128GB Dual-channel architecture Supports XMP profiles at frequencies: 5600/5800/6000/7600 (OC), 8000 (OC)/8200 (OC)/8400 (OC)/8600 (OC)/9000 (OC)/9200 (OC) MHz

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

1 x PCIe 5.0 x16 slot (split-capable to X8+X8/X8+X4+X4) 1 x PCIe 5.0 x16 slot (supports PCIe 5.0 x8 or PCIe 5.0 x4+x4 with lane split) 1 x PCIe 4.0 x16 slot (operates at PCIe 4.0 x4)

PCIe şerit paylaşımı ve işlemci koşulları

1 x PCIe 5.0 x16 slot (split-capable to X8+X8/X8+X4+X4) 1 x PCIe 5.0 x16 slot (supports PCIe 5.0 x8 or PCIe 5.0 x4+x4 with lane split) 1 x PCIe 4.0 x16 slot (operates at PCIe 4.0 x4)

storage Interfaces

1 x M.2 slot, PCIe 5.0 x4/x2, supports 2242/2280/22110 sizes 3 x M.2 slots, PCIe 4.0 x4/x2, supports 2242/2280/22110 sizes 4 x SATA 6Gb/s ports 2 x SFF-8654 4i ports, supporting PCIe 4.0 x4/x2 or SATA (4 x SATA 6Gb/s)

M.2 uyumluluğu ve şerit paylaşımı

1 x M.2 slot, PCIe 5.0 x4/x2, supports 2242/2280/22110 sizes 3 x M.2 slots, PCIe 4.0 x4/x2, supports 2242/2280/22110 sizes 4 x SATA 6Gb/s ports 2 x SFF-8654 4i ports, supporting PCIe 4.0 x4/x2 or SATA (4 x SATA 6Gb/s)

SATA bağlantı sayısı

4

Kablolu ağ bağlantısı

Realtek RTL8126 Ethernet chip Intel® BE200 Wi-Fi card, supporting Wi-Fi 7 and Bluetooth 5.4

Wi-Fi

Realtek RTL8126 Ethernet chip Intel® BE200 Wi-Fi card, supporting Wi-Fi 7 and Bluetooth 5.4

Bluetooth sürümü

5.4

USB bağlantısı

Onboard: 1 x USB 20G Type-C® (front) 1 x USB 5G 19Pin (supports 2 additional USB 5G ports) 1 x USB 2.0 9Pin (supports 2 additional USB 2.0 ports) 1 x USB 2.0 4Pin (supports 1 additional USB 2.0 port)

Görüntü çıkışları ve kullanım koşulları

1 x HDMI 2.1, up to 4K@120Hz 1 x DisplayPort 1.4, up to 4K@120Hz

Ses çıkışı

Integrated Realtek ALC1220 sound chip

Ses yongası

Realtek ALC1220

Üreticinin ayrıntılı teknik bilgileri

Model: MS-iCraft Z890 Vertex, Motherboard Size: ATX (305 x 245mm), CPU Socket: Intel® LGA1851, compatible with Intel® Core™ Ultra processors, Chipset: Intel® Z890, Memory: 2 x DIMM DDR5 slots, supporting up to 128GB Dual-channel architecture Supports XMP profiles at frequencies: 5600/5800/6000/7600 (OC), 8000 (OC)/8200 (OC)/8400 (OC)/8600 (OC)/9000 (OC)/9200 (OC) MHz, Display Ports: 1 x HDMI 2.1, up to 4K@120Hz 1 x DisplayPort 1.4, up to 4K@120Hz, Expansion Slots: 1 x PCIe 5.0 x16 slot (split-capable to X8+X8/X8+X4+X4) 1 x PCIe 5.0 x16 slot (supports PCIe 5.0 x8 or PCIe 5.0 x4+x4 with lane split) 1 x PCIe 4.0 x16 slot (operates at PCIe 4.0 x4), Audio: Integrated Realtek ALC1220 sound chip, Network: Realtek RTL8126 Ethernet chip Intel® BE200 Wi-Fi card, supporting Wi-Fi 7 and Bluetooth 5.4, Storage: 1 x M.2 slot, PCIe 5.0 x4/x2, supports 2242/2280/22110 sizes 3 x M.2 slots, PCIe 4.0 x4/x2, supports 2242/2280/22110 sizes 4 x SATA 6Gb/s ports 2 x SFF-8654 4i ports, supporting PCIe 4.0 x4/x2 or SATA (4 x SATA 6Gb/s), USB Ports: Onboard: 1 x USB 20G Type-C® (front) 1 x USB 5G 19Pin (supports 2 additional USB 5G ports) 1 x USB 2.0 9Pin (supports 2 additional USB 2.0 ports) 1 x USB 2.0 4Pin (supports 1 additional USB 2.0 port), Additional Interfaces: 1 x 24 Pin ATX power connector 2 x 8 Pin +12V power connectors 2 x 3 Pin ARGB connectors 1 x 4 Pin NRGB connector 1 x COM port connector 1 x CLR CMOS reset pin 1 x 4 Pin CPU fan header 1 x 4 Pin PUMP connector (supports DC adjustment) 4 x 4 Pin case fan headers
