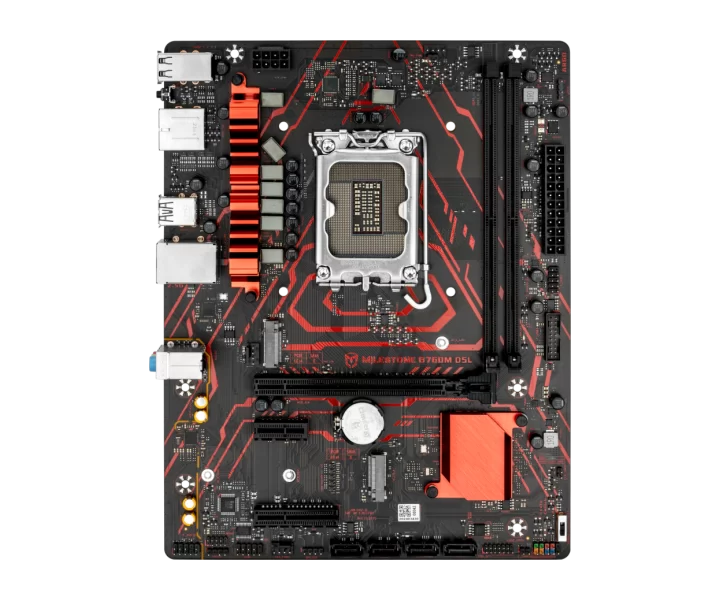

MS-Milestone B760M D5L V2 özellikleri ve fiyatları

MS-Milestone B760M D5L V2 teknik özellikleri

Model kodu

MS-Milestone B760M D5L V2

İşlemci soketi

LGA1700

Uyumlu işlemciler

Supports 12th/13th/14th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700

Anakart yonga seti

INTEL B760

Anakart biçimi

Micro-ATX

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

2x DDR5, Maximum Memory Capacity 96GB Memory Support 4800 MHz/OC Supports dual-channel memory technology

Bellek hızı ve uyumluluk koşulları

2x DDR5, Maximum Memory Capacity 96GB Memory Support 4800 MHz/OC Supports dual-channel memory technology

RAM yuvası sayısı

2

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

1x PCIe 4.0 x16 slot 1x PCIe 3.0 x4 slot 1* PCIEX1 3.0 slot AMD and NVidia support Supports PClE resizable bar technology.

PCIe şerit paylaşımı ve işlemci koşulları

1x PCIe 4.0 x16 slot 1x PCIe 3.0 x4 slot 1* PCIEX1 3.0 slot AMD and NVidia support Supports PClE resizable bar technology.

storage Interfaces

M.2_1 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports

M.2 uyumluluğu ve şerit paylaşımı

M.2_1 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports

SATA bağlantı sayısı

4

Kablolu ağ bağlantısı

Realtek® RTL8125BG 2.5G LAN

USB bağlantısı

Onboard rear ports:4* USB3.2 GEN1 ports, 4* USB2.0 ports On-board pins: 1* set (2 pcs) of USB 2.0 pins, 1* set (2 pcs ) of USB3.2 GEN1pins 2x USB 2.0 *Rear USB (Total 6 ports) 4x USB 3.2 Gen1 pins

Görüntü çıkışları ve kullanım koşulları

1x DisplayPort 1.4 1x HDMI™port *HDMI™ port supports up to 4K@30Hz.

Ses çıkışı

Integrated CX20632 Sound Chip

Üreticinin ayrıntılı teknik bilgileri

CHIPSET: INTEL B760, CPU: Supports 12th/13th/14th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700, MEMORY: 2x DDR5, Maximum Memory Capacity 96GB Memory Support 4800 MHz/OC Supports dual-channel memory technology, ONBOARD GRAPHICS: 1x DisplayPort 1.4 1x HDMI™port *HDMI™ port supports up to 4K@30Hz., EXPANSION SLOT: 1x PCIe 4.0 x16 slot 1x PCIe 3.0 x4 slot 1* PCIEX1 3.0 slot AMD and NVidia support Supports PClE resizable bar technology., STORAGE: M.2_1 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports, USB: Onboard rear ports:4* USB3.2 GEN1 ports, 4* USB2.0 ports On-board pins: 1* set (2 pcs) of USB 2.0 pins, 1* set (2 pcs ) of USB3.2 GEN1pins 2x USB 2.0 *Rear USB (Total 6 ports) 4x USB 3.2 Gen1 pins, LAN: Realtek® RTL8125BG 2.5G LAN, AUDIO: Integrated CX20632 Sound Chip, OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit, FORM FACTOR: M-ATX 245mm x190mm
