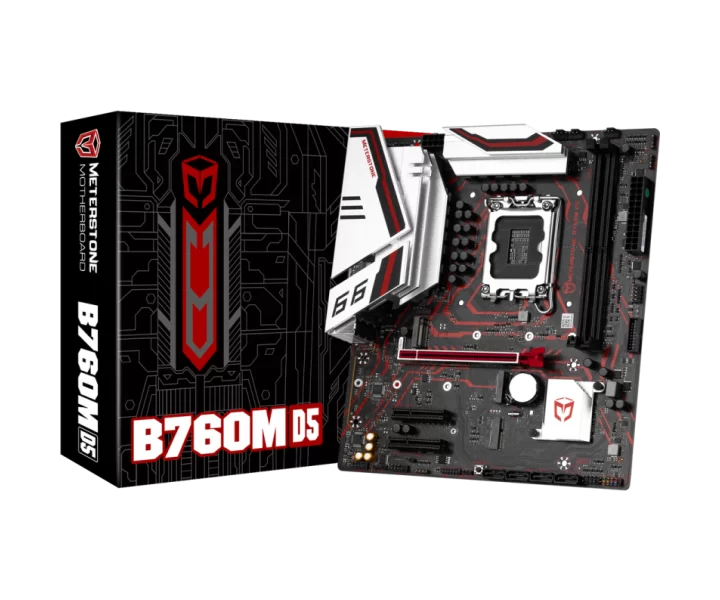

MS-Milestone B760M D5P özellikleri ve fiyatları

MS-Milestone B760M D5P teknik özellikleri

Model kodu

MS-Milestone B760M D5P

İşlemci soketi

LGA1700

Uyumlu işlemciler

Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700

Anakart yonga seti

INTEL B760

Anakart biçimi

Micro-ATX

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode

Bellek hızı ve uyumluluk koşulları

2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode

RAM yuvası sayısı

2

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

1x PCIe 4.0 x16 slot 2x PCIe 3.0 x4 slot

PCIe şerit paylaşımı ve işlemci koşulları

1x PCIe 4.0 x16 slot 2x PCIe 3.0 x4 slot

storage Interfaces

M.2_1 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports

M.2 uyumluluğu ve şerit paylaşımı

M.2_1 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports

SATA bağlantı sayısı

4

Kablolu ağ bağlantısı

Realtek® RTL8125BG 2.5G LAN

USB bağlantısı

*Front USB (Total 4 ports) 2x USB 3.2 Gen1 Type A 2x USB 2.0 *Rear USB (Total 6 ports) 4x USB 3.2 Gen1 Type A 2x USB 2.0

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin Power Connector(ATX_PWR) 1x 8-pin Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 3 x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x M.2 slots (Key-E) 1x 4-Pin SPEAKER 2x 5V 3-Pin ARGB 1x 12V 4-Pin RGB 1x 2-Pin Clear CMOS 1x Front Audio 1x COM_A Port 1x TPM pin header(Support TPM 2.0) 1x Clear CMOS Button 1x 3-Pin UART_DEBUG 1x 3-Pin SPDIF

Güç bağlantıları

1x 24-pin Power Connector(ATX_PWR) 1x 8-pin Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 3 x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x M.2 slots (Key-E) 1x 4-Pin SPEAKER 2x 5V 3-Pin ARGB 1x 12V 4-Pin RGB 1x 2-Pin Clear CMOS 1x Front Audio 1x COM_A Port 1x TPM pin header(Support TPM 2.0) 1x Clear CMOS Button 1x 3-Pin UART_DEBUG 1x 3-Pin SPDIF

Görüntü çıkışları ve kullanım koşulları

1x DisplayPort 1.4 2x HDMI™port *HDMI™ port supports up to 4K@30Hz 1x VGA *Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

Ses çıkışı

Realtek® ALC897 Codec 5.1-Channel High Definition Audio

Ses yongası

ALC897

Ses kanalı yapılandırması

5.1 kanal

Üreticinin ayrıntılı teknik bilgileri

CHIPSET: INTEL B760, CPU: Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700, MEMORY: 2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode, ONBOARD GRAPHICS: 1x DisplayPort 1.4 2x HDMI™port *HDMI™ port supports up to 4K@30Hz 1x VGA *Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates., EXPANSION SLOT: 1x PCIe 4.0 x16 slot 2x PCIe 3.0 x4 slot, STORAGE: M.2_1 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports, RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, USB: *Front USB (Total 4 ports) 2x USB 3.2 Gen1 Type A 2x USB 2.0 *Rear USB (Total 6 ports) 4x USB 3.2 Gen1 Type A 2x USB 2.0, LAN: Realtek® RTL8125BG 2.5G LAN, AUDIO: Realtek® ALC897 Codec 5.1-Channel High Definition Audio, INTERNAL I/O: 1x 24-pin Power Connector(ATX_PWR) 1x 8-pin Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 3 x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x M.2 slots (Key-E) 1x 4-Pin SPEAKER 2x 5V 3-Pin ARGB 1x 12V 4-Pin RGB 1x 2-Pin Clear CMOS 1x Front Audio 1x COM_A Port 1x TPM pin header(Support TPM 2.0) 1x Clear CMOS Button 1x 3-Pin UART_DEBUG 1x 3-Pin SPDIF, LED FEATURE: 4x Distributed Debug LED, OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit, FORM FACTOR: M-ATX 245mm x 210mm
