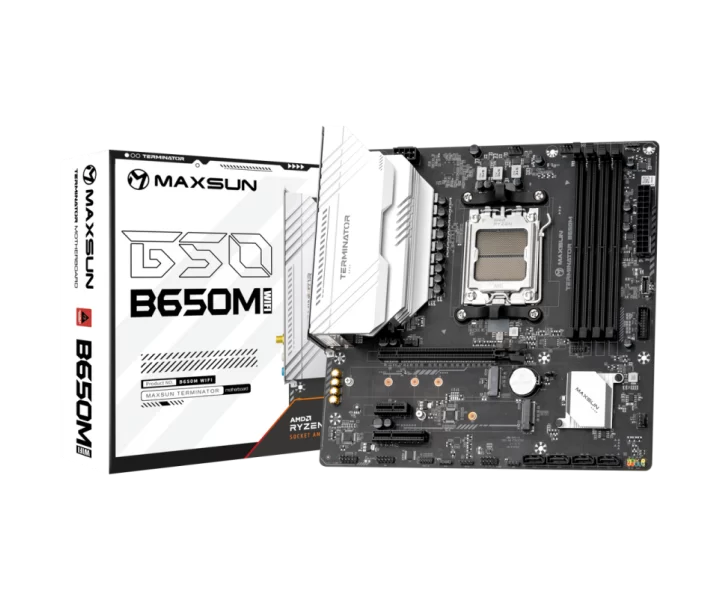

MS-Terminator B650M WIFI6 özellikleri ve fiyatları

MS-Terminator B650M WIFI6 teknik özellikleri

Model kodu

MS-Terminator B650M WIFI6

İşlemci soketi

AM5

Uyumlu işlemciler

Supports AM5 slots Ryzen7000, Ryzen8000, Ryzen9000 series processors TDP: 170W

Anakart yonga seti

AMD® B650 Chipset

Anakart biçimi

Micro-ATX

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

4* DIMM DDR5 memory slots Supports dual-channel memory technology Support 4800/5200/5600(OC)6000(OC)/6400(OC)/6800(OC),7000(OC)/7200(OC)/7600(OC),7800(OC)/8000(OC)MHz Memeroy Frequency

Bellek hızı ve uyumluluk koşulları

4* DIMM DDR5 memory slots Supports dual-channel memory technology Support 4800/5200/5600(OC)6000(OC)/6400(OC)/6800(OC),7000(OC)/7200(OC)/7600(OC),7800(OC)/8000(OC)MHz Memeroy Frequency

RAM yuvası sayısı

4

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

1x PCIe 5.0 x16 slot 1x PCIe 4.0 x4 slot 1x PCIe 3.0 x1 slot

PCIe şerit paylaşımı ve işlemci koşulları

1x PCIe 5.0 x16 slot 1x PCIe 4.0 x4 slot 1x PCIe 3.0 x1 slot

storage Interfaces

1*M.2 slot ((2280/22110 PCIE X4/X2 channel SSD only), 4x SATA 3.0 ports | 1* M.2 4.0 slot (supports 2242/2280 PCIE X4/X2 channel SSD only) 3* SATA3.0 ports

M.2 uyumluluğu ve şerit paylaşımı

1*M.2 slot ((2280/22110 PCIE X4/X2 channel SSD only), 4x SATA 3.0 ports | 1* M.2 4.0 slot (supports 2242/2280 PCIE X4/X2 channel SSD only) 3* SATA3.0 ports

SATA bağlantı sayısı

4

Kablolu ağ bağlantısı

Realtek® RTL8125BG NIC Chip

USB bağlantısı

Onboard rear ports: 4* USB3.2 GEN1 ports, 4* USB2.0 ports,and and 1 USB Type-C (10Gbps) port Board pins: 1 set (2) USB2.0 pins, 1 set (2) USB3.2 GEN1 pins, 1 front USB Type-C (10Gbps) port

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin Power Connector(ATX_PWR) 1 8PIN motherboard ATX 12V power port with 12V input 1x CPU Fan 2x System Fan 1x PS/2 interface 1x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x 4-Pin SPEAKER 1x Front Audio 1x COM_A Port 1x 9-Pin DEBUG_CON 1x CLR CMOS

Güç bağlantıları

1x 24-pin Power Connector(ATX_PWR) 1 8PIN motherboard ATX 12V power port with 12V input 1x CPU Fan 2x System Fan 1x PS/2 interface 1x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x 4-Pin SPEAKER 1x Front Audio 1x COM_A Port 1x 9-Pin DEBUG_CON 1x CLR CMOS

Görüntü çıkışları ve kullanım koşulları

1x HDMI™port up to support 4096x2160@30Hz resolution (support HDCP2.2) 1 DP interface with a maximum resolution of 4096x2160@60Hz.

Ses çıkışı

Realtek® ALC897 Codec

Ses yongası

ALC897

Üreticinin ayrıntılı teknik bilgileri

CHIPSET: AMD® B650 Chipset, CPU (Max Support): Supports AM5 slots Ryzen7000, Ryzen8000, Ryzen9000 series processors TDP: 170W, MEMORY: 4* DIMM DDR5 memory slots Supports dual-channel memory technology Support 4800/5200/5600(OC)6000(OC)/6400(OC)/6800(OC),7000(OC)/7200(OC)/7600(OC),7800(OC)/8000(OC)MHz Memeroy Frequency, DISPLAY: 1x HDMI™port up to support 4096x2160@30Hz resolution (support HDCP2.2) 1 DP interface with a maximum resolution of 4096x2160@60Hz., EXPANSION SLOT: 1x PCIe 5.0 x16 slot 1x PCIe 4.0 x4 slot 1x PCIe 3.0 x1 slot, STORAGE: 1*M.2 slot ((2280/22110 PCIE X4/X2 channel SSD only), 4x SATA 3.0 ports, USB: Onboard rear ports: 4* USB3.2 GEN1 ports, 4* USB2.0 ports,and and 1 USB Type-C (10Gbps) port Board pins: 1 set (2) USB2.0 pins, 1 set (2) USB3.2 GEN1 pins, 1 front USB Type-C (10Gbps) port, LAN: Realtek® RTL8125BG NIC Chip, AUDIO: Realtek® ALC897 Codec, INTERNAL I/O: 1x 24-pin Power Connector(ATX_PWR) 1 8PIN motherboard ATX 12V power port with 12V input 1x CPU Fan 2x System Fan 1x PS/2 interface 1x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x 4-Pin SPEAKER 1x Front Audio 1x COM_A Port 1x 9-Pin DEBUG_CON 1x CLR CMOS, SSD: 1* M.2 4.0 slot (supports 2242/2280 PCIE X4/X2 channel SSD only) 3* SATA3.0 ports, OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit, FORM FACTOR: M-ATX 245mm x 245mm
