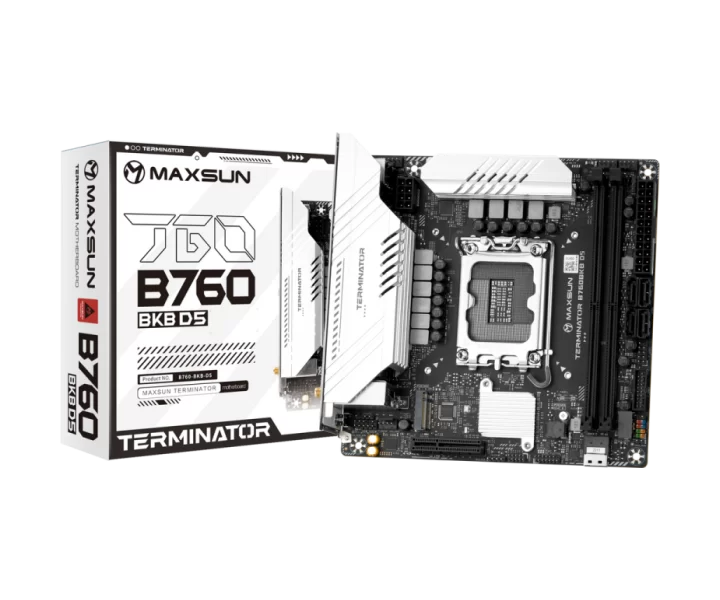

MS-Terminator B760BKB D5 WIFI özellikleri ve fiyatları

MS-Terminator B760BKB D5 WIFI teknik özellikleri

Model kodu

MS-Terminator B760BKB D5 WIFI

İşlemci soketi

LGA1700

Uyumlu işlemciler

Supports LGA1700 slots Intel® 12th, 13th, and 14th processors

Anakart yonga seti

Intel®B760

Anakart biçimi

Mini-ITX

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

2 DIMM DDR5 memory slots，maximum capacity 96GB Dual channel memory architecture is supported Support Up to 8000(OC)Mhz

Bellek hızı ve uyumluluk koşulları

2 DIMM DDR5 memory slots，maximum capacity 96GB Dual channel memory architecture is supported Support Up to 8000(OC)Mhz

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

96 GB

Bellek kanalı sayısı

2 kanal

storage Interfaces

A total of 2 x M.2 slots, 4 x SATA 6Gb/s interfaces, and 1 x SFF-8654 4i interfaces are supported M.2_A slot (Key_M) : supports PCIe 4.0X4 /X2 mode, supports 2280 length (located on the front side of the motherboard) M.2_B slot (Key_M) : supports PCIe 4.0X4 /X2 mode, supports 2280 length (located on the back of the motherboard) SFF-8654 4i interface: supports PCIe 4.0X4 /X2 4 x SATA 6Gb/s interface

M.2 uyumluluğu ve şerit paylaşımı

A total of 2 x M.2 slots, 4 x SATA 6Gb/s interfaces, and 1 x SFF-8654 4i interfaces are supported M.2_A slot (Key_M) : supports PCIe 4.0X4 /X2 mode, supports 2280 length (located on the front side of the motherboard) M.2_B slot (Key_M) : supports PCIe 4.0X4 /X2 mode, supports 2280 length (located on the back of the motherboard) SFF-8654 4i interface: supports PCIe 4.0X4 /X2 4 x SATA 6Gb/s interface

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

4

Kablolu ağ bağlantısı

Integrated REALTEK 8125BG 2.5G chip (10/100/1000/2500Mbit) 1 x Intel ® AX211 Wireless card: Wi-Fi 6e and Bluetooth® v5.3 support

Wi-Fi

Integrated REALTEK 8125BG 2.5G chip (10/100/1000/2500Mbit) 1 x Intel ® AX211 Wireless card: Wi-Fi 6e and Bluetooth® v5.3 support

Bluetooth sürümü

5.3

USB bağlantısı

Onboard rear ports: 2 USB3.2 GEN2 ports, 6 USB2.0 ports In-board pins: 1 set (2) USB2.0 pins, 1 set (2) USB3.2 GEN1 pins,One USB3.2 Gen2x2 Type-C(20G) front interface

Görüntü çıkışları ve kullanım koşulları

1 x DisplayPort 1.4 display interface, support up to the specified 4K@60Hz 1 x HDMI™ 2.0 display interface, supports up to specified 4K@60Hz * Graphics specifications

Ses çıkışı

Integrated REALTEK ALC897 sound card chip

Ses yongası

REALTEK ALC897

Üreticinin ayrıntılı teknik bilgileri

CPU: Supports LGA1700 slots Intel® 12th, 13th, and 14th processors, CHIPSET: Intel®B760, MEMORY: 2 DIMM DDR5 memory slots，maximum capacity 96GB Dual channel memory architecture is supported Support Up to 8000(OC)Mhz, DISPLAY: 1 x DisplayPort 1.4 display interface, support up to the specified 4K@60Hz 1 x HDMI™ 2.0 display interface, supports up to specified 4K@60Hz * Graphics specifications, EXTENSION INTERFACE: 1*PCIEX16 5.0 slot 1* PCIEX4 3.0 open slot, AUDIO: Integrated REALTEK ALC897 sound card chip, NETWORK: Integrated REALTEK 8125BG 2.5G chip (10/100/1000/2500Mbit) 1 x Intel ® AX211 Wireless card: Wi-Fi 6e and Bluetooth® v5.3 support, STORAGE: A total of 2 x M.2 slots, 4 x SATA 6Gb/s interfaces, and 1 x SFF-8654 4i interfaces are supported M.2_A slot (Key_M) : supports PCIe 4.0X4 /X2 mode, supports 2280 length (located on the front side of the motherboard) M.2_B slot (Key_M) : supports PCIe 4.0X4 /X2 mode, supports 2280 length (located on the back of the motherboard) SFF-8654 4i interface: supports PCIe 4.0X4 /X2 4 x SATA 6Gb/s interface, USB: Onboard rear ports: 2 USB3.2 GEN2 ports, 6 USB2.0 ports In-board pins: 1 set (2) USB2.0 pins, 1 set (2) USB3.2 GEN1 pins,One USB3.2 Gen2x2 Type-C(20G) front interface, FORM FACTOR: Mini-ITX (171mm x 171mm)
