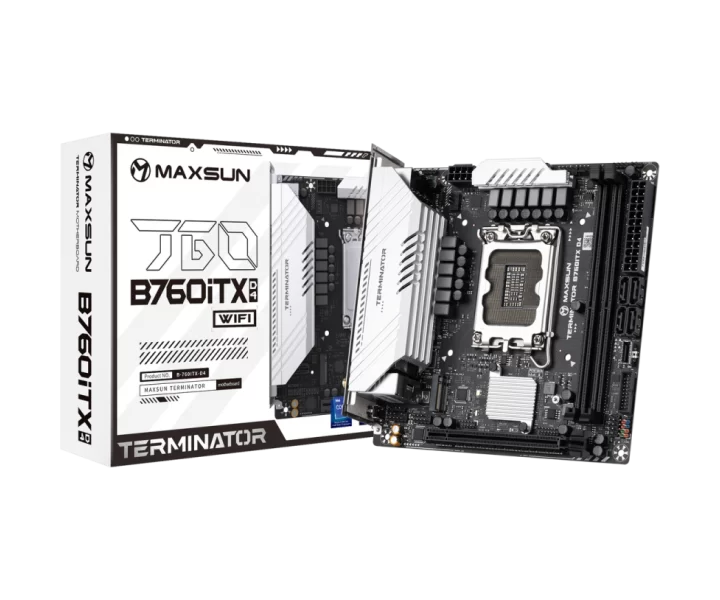

MS-Terminator B760ITX D4 WIFI V3 özellikleri ve fiyatları

MS-Terminator B760ITX D4 WIFI V3 teknik özellikleri

Model kodu

MS-Terminator B760ITX D4 WIFI V3

İşlemci soketi

LGA1700

Uyumlu işlemciler

Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700

Anakart yonga seti

INTEL B760

Anakart biçimi

Mini-ITX

RAM türü

DDR4

Desteklenen bellek yapılandırmaları

2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz Supports Intel® XMP 2.0 OC Supports Dual-Controller Dual-Channel mode

Bellek hızı ve uyumluluk koşulları

2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz Supports Intel® XMP 2.0 OC Supports Dual-Controller Dual-Channel mode

RAM yuvası sayısı

2

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

1x PCIe 5.0 x16 slot

PCIe şerit paylaşımı ve işlemci koşulları

1x PCIe 5.0 x16 slot

storage Interfaces

M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports

M.2 uyumluluğu ve şerit paylaşımı

M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports

SATA bağlantı sayısı

4

Kablolu ağ bağlantısı

Realtek® RTL8125BG 2.5G LAN

USB bağlantısı

*Front USB (Total 5 ports) 1x USB 3.2 Gen1 Type C 2x USB 3.2 Gen1 Type A 2x USB 2.0 *Rear USB (Total 9 ports) 1x USB 3.2 Gen1 Type C 4x USB 3.2 Gen1 Type A 4x USB 2.0

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin Power Connector(ATX_PWR) 1x 8-pin Power Connector(CPU_PWR) 1x CPU Fan 1x PUMP Fan 2x System Fan 2 x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x CLR_CMOS 1x 4-Pin BUZZER 1x Front Audio 1x COM Port 1x 9-Pin JDEBUG 1x TPM pin header(Support TPM 2.0) 1x 3-Pin SPDIF

Güç bağlantıları

1x 24-pin Power Connector(ATX_PWR) 1x 8-pin Power Connector(CPU_PWR) 1x CPU Fan 1x PUMP Fan 2x System Fan 2 x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x CLR_CMOS 1x 4-Pin BUZZER 1x Front Audio 1x COM Port 1x 9-Pin JDEBUG 1x TPM pin header(Support TPM 2.0) 1x 3-Pin SPDIF

Görüntü çıkışları ve kullanım koşulları

1x DisplayPort 1.4 1x HDMI™port *HDMI™ port supports up to 4K@30Hz *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

Ses çıkışı

Realtek® ALC897 Codec 5.1-Channel High Definition Audio

Ses yongası

ALC897

Ses kanalı yapılandırması

5.1 kanal

Üreticinin ayrıntılı teknik bilgileri

CHIPSET: INTEL B760, CPU: Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700, MEMORY: 2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz Supports Intel® XMP 2.0 OC Supports Dual-Controller Dual-Channel mode, ONBOARD GRAPHICS: 1x DisplayPort 1.4 1x HDMI™port *HDMI™ port supports up to 4K@30Hz *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates., EXPANSION SLOT: 1x PCIe 5.0 x16 slot, STORAGE: M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports, RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, USB: *Front USB (Total 5 ports) 1x USB 3.2 Gen1 Type C 2x USB 3.2 Gen1 Type A 2x USB 2.0 *Rear USB (Total 9 ports) 1x USB 3.2 Gen1 Type C 4x USB 3.2 Gen1 Type A 4x USB 2.0, LAN: Realtek® RTL8125BG 2.5G LAN, WIRELESS / BLUETOOTH: Intel® Wi-Fi 6E AX211 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, AUDIO: Realtek® ALC897 Codec 5.1-Channel High Definition Audio, INTERNAL I/O: 1x 24-pin Power Connector(ATX_PWR) 1x 8-pin Power Connector(CPU_PWR) 1x CPU Fan 1x PUMP Fan 2x System Fan 2 x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x CLR_CMOS 1x 4-Pin BUZZER 1x Front Audio 1x COM Port 1x 9-Pin JDEBUG 1x TPM pin header(Support TPM 2.0) 1x 3-Pin SPDIF, LED FEATURE: 4x Distributed Debug LED, OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit, FORM FACTOR: ITX 170mm x 170mm
