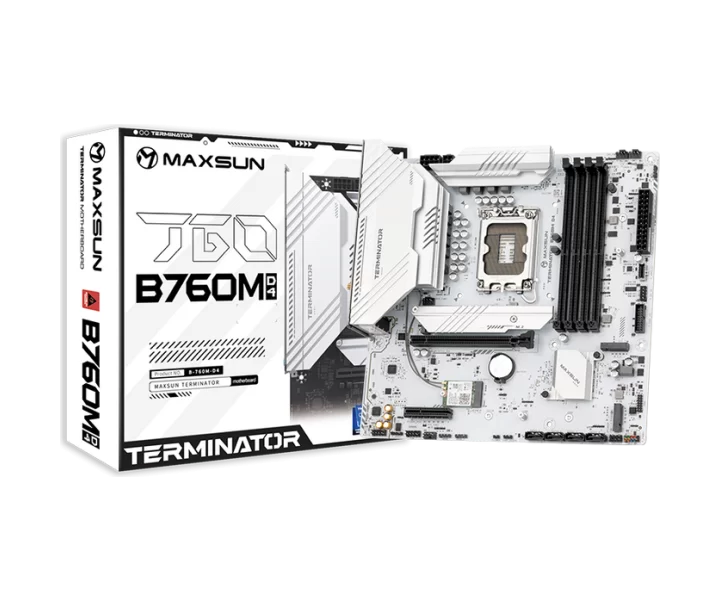

MS-Terminator B760M D4 ICE özellikleri ve fiyatları

MS-Terminator B760M D4 ICE teknik özellikleri

Model kodu

MS-Terminator B760M D4 ICE

İşlemci soketi

LGA1700

Uyumlu işlemciler

Intel® LGA1700 Socket Compatible with 12th, 13th, and 14th Gen Intel® Processors TDP Support: Up to 220W

Anakart yonga seti

Intel® B760 High-Speed Chipset

Anakart biçimi

Micro-ATX

Boyutlar

M-ATX (245 × 245mm)

RAM türü

DDR4

Desteklenen bellek yapılandırmaları

4 x DIMM DDR4 Slots, up to 256GB total capacity Supports Dual-Channel Memory Technology Supports 2400/2666/2933/3200MHz (Overclocking recommended on slots 2 & 4)

Bellek hızı ve uyumluluk koşulları

4 x DIMM DDR4 Slots, up to 256GB total capacity Supports Dual-Channel Memory Technology Supports 2400/2666/2933/3200MHz (Overclocking recommended on slots 2 & 4)

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

256 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

1 x PCIe 5.0 x16 Slot 1 x PCIe 3.0 x4 Slot

PCIe şerit paylaşımı ve işlemci koşulları

1 x PCIe 5.0 x16 Slot 1 x PCIe 3.0 x4 Slot

storage Interfaces

1 x M.2 Slot (Supports PCIe 4.0 x4/x2, 2242/2260/2280 sizes) 2 x M.2 Slots (Supports PCIe 4.0 x4/x2, 2242/2260/2280/22110 sizes) 4 x SATA 3.0 Ports

M.2 uyumluluğu ve şerit paylaşımı

1 x M.2 Slot (Supports PCIe 4.0 x4/x2, 2242/2260/2280 sizes) 2 x M.2 Slots (Supports PCIe 4.0 x4/x2, 2242/2260/2280/22110 sizes) 4 x SATA 3.0 Ports

SATA bağlantı sayısı

4

Kablolu ağ bağlantısı

Integrated Realtek RTL8125B 2.5G LAN (1 x RJ45 Port) Onboard Intel® AX211 Wireless Module (Supports Wi-Fi 6E & Bluetooth 5.3)

Wi-Fi

Integrated Realtek RTL8125B 2.5G LAN (1 x RJ45 Port) Onboard Intel® AX211 Wireless Module (Supports Wi-Fi 6E & Bluetooth 5.3)

Bluetooth sürümü

5.3

USB bağlantısı

Rear I/O: 6 x USB 2.0 2 x USB 3.2 Gen2 (10Gbps) Internal Headers: 1 x USB 2.0 Header (Supports 2 Ports) 1 x USB 3.2 Gen1 (5Gbps) Header (Supports 2 Ports) 1 x USB 3.2 Gen2x2 Type-C (20Gbps) Port

Güç bağlantıları

1 x 24-Pin ATX Power Connector 1 x 8+4-Pin ATX 12V CPU Power Connector 2 x 5V ARGB 3-Pin Headers 1 x 12V RGB 4-Pin Header

Görüntü çıkışları ve kullanım koşulları

1 x HDMI™ 2.0 (Supports up to 4096×2160@60Hz, HDCP 2.2) 1 x DisplayPort (Supports up to 4096×2160@60Hz)

Ses çıkışı

Integrated Realtek ALC897 Audio Chip

Ses yongası

Realtek ALC897

Üreticinin ayrıntılı teknik bilgileri

Model: MS-Terminator B760M D4 ICE Motherboard, Form Factor: M-ATX (245 × 245mm), CPU Support: Intel® LGA1700 Socket Compatible with 12th, 13th, and 14th Gen Intel® Processors TDP Support: Up to 220W, Chipset: Intel® B760 High-Speed Chipset, Memory: 4 x DIMM DDR4 Slots, up to 256GB total capacity Supports Dual-Channel Memory Technology Supports 2400/2666/2933/3200MHz (Overclocking recommended on slots 2 & 4), Display Outputs: 1 x HDMI™ 2.0 (Supports up to 4096×2160@60Hz, HDCP 2.2) 1 x DisplayPort (Supports up to 4096×2160@60Hz), Expansion Slots: 1 x PCIe 5.0 x16 Slot 1 x PCIe 3.0 x4 Slot, Audio: Integrated Realtek ALC897 Audio Chip, Networking: Integrated Realtek RTL8125B 2.5G LAN (1 x RJ45 Port) Onboard Intel® AX211 Wireless Module (Supports Wi-Fi 6E & Bluetooth 5.3), Storage: 1 x M.2 Slot (Supports PCIe 4.0 x4/x2, 2242/2260/2280 sizes) 2 x M.2 Slots (Supports PCIe 4.0 x4/x2, 2242/2260/2280/22110 sizes) 4 x SATA 3.0 Ports, USB Connectivity: Rear I/O: 6 x USB 2.0 2 x USB 3.2 Gen2 (10Gbps) Internal Headers: 1 x USB 2.0 Header (Supports 2 Ports) 1 x USB 3.2 Gen1 (5Gbps) Header (Supports 2 Ports) 1 x USB 3.2 Gen2x2 Type-C (20Gbps) Port, Power & RGB Headers: 1 x 24-Pin ATX Power Connector 1 x 8+4-Pin ATX 12V CPU Power Connector 2 x 5V ARGB 3-Pin Headers 1 x 12V RGB 4-Pin Header, Other Connectors & Buttons: 1 x COM Header 1 x Rear Clear CMOS Button 3 x System Fan Headers 1 x CPU Fan Header (Supports Smart Fan Control) 1 x Debug Header
