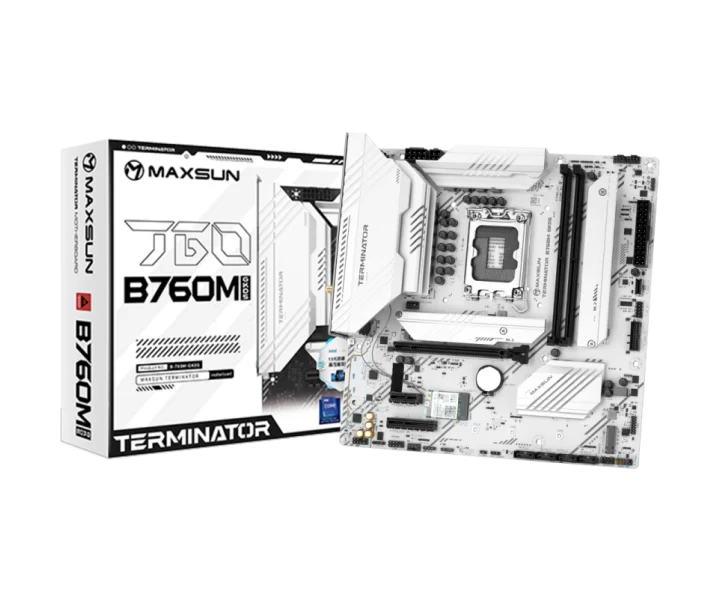

MS-Terminator B760M GKD5 ICE özellikleri ve fiyatları

MS-Terminator B760M GKD5 ICE teknik özellikleri

Model kodu

MS-Terminator B760M GKD5 ICE

İşlemci soketi

LGA1700

Uyumlu işlemciler

Supports LGA1700 slots Intel® 12th, 13th, and 14th processors TDP: PL1 241W; PL2 253W

Anakart yonga seti

Intel®B760 High-speed chipsets

Anakart biçimi

ATX

Boyutlar

ATX 245*245mm

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

2 DIMM DDR5 memory slots (for single or dual memory slots, use the second and fourth slots first Supports dual-channel memory technology Support for 4800/5600/6400/7200/7600 / XMP/OC frequency of memory

Bellek hızı ve uyumluluk koşulları

2 DIMM DDR5 memory slots (for single or dual memory slots, use the second and fourth slots first Supports dual-channel memory technology Support for 4800/5600/6400/7200/7600 / XMP/OC frequency of memory

RAM yuvası sayısı

2

Bellek kanalı sayısı

2 kanal

storage Interfaces

3*M,2 slots (PCIE X4/X2 channel SSD only) 1*M.2_WIFI slot (CNVI network card only) 4* SATA3.0 ports

M.2 uyumluluğu ve şerit paylaşımı

3*M,2 slots (PCIE X4/X2 channel SSD only) 1*M.2_WIFI slot (CNVI network card only) 4* SATA3.0 ports

Kablolu ağ bağlantısı

Integrated REALTEK 8125B NIC chip (10/100/1000/2500Mbit) 1*on-board RJ45 port Support network wake up Supports PXE diskless boot and UEFI diskless boot

USB bağlantısı

Onboard rear ports: 2 USB3.2 GEN2 ports, 6 USB2.0 ports In-board pins: 1 set (2) USB2.0 pins, 1 set (2) USB3.2 GEN1 pins,One USB3.2 Gen2x2 Type-C(20G) front interface

Görüntü çıkışları ve kullanım koşulları

1*DP1.4 interface, support up to 7680*4320@30Hz resolution 1*HDMI2.0 interface, the highest resolution support 4096x2160@60Hz

Ses çıkışı

Integrated REALTEK ALC897 sound card chip

Ses yongası

REALTEK ALC897

Üreticinin ayrıntılı teknik bilgileri

CPU: Supports LGA1700 slots Intel® 12th, 13th, and 14th processors TDP: PL1 241W; PL2 253W, CHIPSET: Intel®B760 High-speed chipsets, MEMORY: 2 DIMM DDR5 memory slots (for single or dual memory slots, use the second and fourth slots first Supports dual-channel memory technology Support for 4800/5600/6400/7200/7600 / XMP/OC frequency of memory, DISPLAY: 1*DP1.4 interface, support up to 7680*4320@30Hz resolution 1*HDMI2.0 interface, the highest resolution support 4096x2160@60Hz, EXTENSION INTERFACE: 1*PCIEX16 5.0 slot 1* PCIEX4 3.0 open slot, AUDIO: Integrated REALTEK ALC897 sound card chip, NETWORK: Integrated REALTEK 8125B NIC chip (10/100/1000/2500Mbit) 1*on-board RJ45 port Support network wake up Supports PXE diskless boot and UEFI diskless boot, STORAGE: 3*M,2 slots (PCIE X4/X2 channel SSD only) 1*M.2_WIFI slot (CNVI network card only) 4* SATA3.0 ports, USB: Onboard rear ports: 2 USB3.2 GEN2 ports, 6 USB2.0 ports In-board pins: 1 set (2) USB2.0 pins, 1 set (2) USB3.2 GEN1 pins,One USB3.2 Gen2x2 Type-C(20G) front interface, FORM FACTOR: ATX 245*245mm
