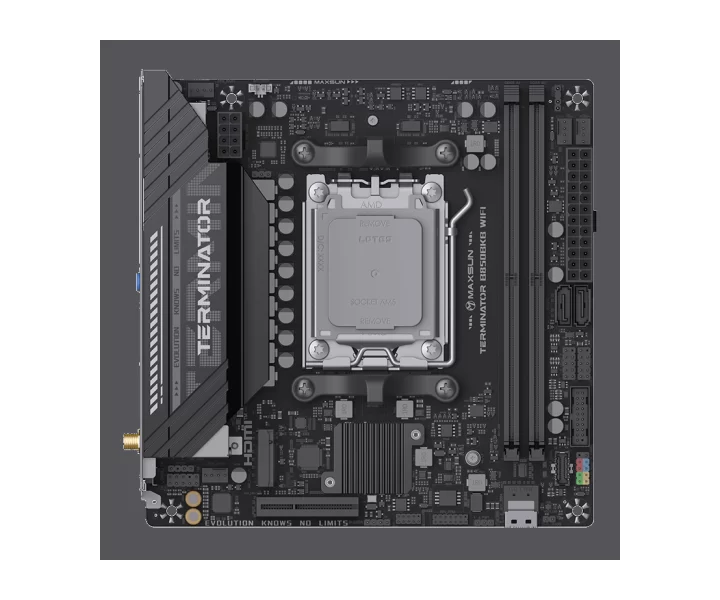

MS-Terminator B850BKB WIFI özellikleri ve fiyatları

MS-Terminator B850BKB WIFI teknik özellikleri

Model kodu

MS-Terminator B850BKB WIFI

İşlemci soketi

AM5

Uyumlu işlemciler

AMD® AM5 socket Compatible with AMD® Ryzen™ 7000, 8000 and 9000 Series processors

Anakart yonga seti

AMD® B850 chipset

Anakart biçimi

Mini-ITX

Boyutlar

Mini-ITX Size: 171 × 171 mm

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

2 × DDR5 DIMM slots, up to 128GB Dual-channel memory architecture Supports memory overclocking Supported speeds: 4800 / 5600(OC) / 6000(OC) / 6400(OC) / 6600(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7400(OC) / 7600(OC) / 8000(OC) / 8200(OC) / 8400(OC) MHz

Bellek hızı ve uyumluluk koşulları

2 × DDR5 DIMM slots, up to 128GB Dual-channel memory architecture Supports memory overclocking Supported speeds: 4800 / 5600(OC) / 6000(OC) / 6400(OC) / 6600(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7400(OC) / 7600(OC) / 8000(OC) / 8200(OC) / 8400(OC) MHz

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

From CPU: 1 × rear-mounted PCIe x16 slot, up to PCIe 5.0 x16 Ryzen™ 7000 / 9000: PCIe 5.0 x16 Ryzen™ 8000: PCIe 4.0 x8/x4 From B850 chipset: 1 × PCIe x4 slot (PCIe 4.0 x4)

PCIe şerit paylaşımı ve işlemci koşulları

From CPU: 1 × rear-mounted PCIe x16 slot, up to PCIe 5.0 x16 Ryzen™ 7000 / 9000: PCIe 5.0 x16 Ryzen™ 8000: PCIe 4.0 x8/x4 From B850 chipset: 1 × PCIe x4 slot (PCIe 4.0 x4)

storage Interfaces

2 × M.2 Key-M slots, 2 × SATA 6Gb/s ports and 1 × SFF-8654 4i connector M.2_A and M.2_B: PCIe 5.0 x4/x2, supports 2242 / 2280 Ryzen™ 7000 / 9000: PCIe 5.0 x4 Ryzen™ 8000: PCIe 4.0 x4/x2 SFF-8654 4i: PCIe 4.0 x4/x2

M.2 uyumluluğu ve şerit paylaşımı

2 × M.2 Key-M slots, 2 × SATA 6Gb/s ports and 1 × SFF-8654 4i connector M.2_A and M.2_B: PCIe 5.0 x4/x2, supports 2242 / 2280 Ryzen™ 7000 / 9000: PCIe 5.0 x4 Ryzen™ 8000: PCIe 4.0 x4/x2 SFF-8654 4i: PCIe 4.0 x4/x2

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

2

Kablolu ağ bağlantısı

1 × Realtek RTL8125 2.5Gb Ethernet 1 × MediaTek MT7922 wireless module Supports Wi-Fi 6E and Bluetooth® 5.4

Wi-Fi

1 × Realtek RTL8125 2.5Gb Ethernet 1 × MediaTek MT7922 wireless module Supports Wi-Fi 6E and Bluetooth® 5.4

Bluetooth sürümü

5.4

USB bağlantısı

Onboard headers: 1 × USB 20Gbps front Type-C connector 1 × USB 5Gbps 19-pin header supporting 2 ports 2 × USB 2.0 9-pin headers supporting 4 ports Rear I/O: 1 × USB 10Gbps Type-C with DisplayPort 1.4 output up to 4K @ 60Hz 4 × USB 10Gbps Type-A 4 × USB 2.0 Type-A

Dahili bağlantılar ve ön panel başlıkları

1 × 24-pin ATX power connector 1 × 8-pin +12V CPU power connector 1 × 4-pin CPU_FAN header 1 × 4-pin PUMP header with DC speed control 2 × 4-pin chassis fan headers

Güç bağlantıları

1 × 24-pin ATX power connector 1 × 8-pin +12V CPU power connector 1 × 4-pin CPU_FAN header 1 × 4-pin PUMP header with DC speed control 2 × 4-pin chassis fan headers

Görüntü çıkışları ve kullanım koşulları

1 × HDMI™ 2.0, up to 4K @ 60Hz 1 × DisplayPort, up to 4K @ 60Hz

Ses çıkışı

Realtek ALC897 HD Audio Codec

Ses yongası

Realtek ALC897

vrm

6+2+1 phase 110A SPS power design CPU TDP support: up to 200W

Diğer anakart özellikleri

Rear-mounted graphics card slot CLR_CMOS quick button 1 × 3-pin ARGB header 1 × COM header 1 × 10-1 pin system panel header PTM UI BIOS

Üreticinin ayrıntılı teknik bilgileri

Model: MS-Terminator B850BKB WIFI, Form Factor: Mini-ITX Size: 171 × 171 mm, CPU Support: AMD® AM5 socket Compatible with AMD® Ryzen™ 7000, 8000 and 9000 Series processors, Chipset: AMD® B850 chipset, Power Delivery: 6+2+1 phase 110A SPS power design CPU TDP support: up to 200W, Memory: 2 × DDR5 DIMM slots, up to 128GB Dual-channel memory architecture Supports memory overclocking Supported speeds: 4800 / 5600(OC) / 6000(OC) / 6400(OC) / 6600(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7400(OC) / 7600(OC) / 8000(OC) / 8200(OC) / 8400(OC) MHz, Graphics Output: 1 × HDMI™ 2.0, up to 4K @ 60Hz 1 × DisplayPort, up to 4K @ 60Hz, Expansion Slots: From CPU: 1 × rear-mounted PCIe x16 slot, up to PCIe 5.0 x16 Ryzen™ 7000 / 9000: PCIe 5.0 x16 Ryzen™ 8000: PCIe 4.0 x8/x4 From B850 chipset: 1 × PCIe x4 slot (PCIe 4.0 x4), Storage Interfaces: 2 × M.2 Key-M slots, 2 × SATA 6Gb/s ports and 1 × SFF-8654 4i connector M.2_A and M.2_B: PCIe 5.0 x4/x2, supports 2242 / 2280 Ryzen™ 7000 / 9000: PCIe 5.0 x4 Ryzen™ 8000: PCIe 4.0 x4/x2 SFF-8654 4i: PCIe 4.0 x4/x2, Networking: 1 × Realtek RTL8125 2.5Gb Ethernet 1 × MediaTek MT7922 wireless module Supports Wi-Fi 6E and Bluetooth® 5.4, USB Ports: Onboard headers: 1 × USB 20Gbps front Type-C connector 1 × USB 5Gbps 19-pin header supporting 2 ports 2 × USB 2.0 9-pin headers supporting 4 ports Rear I/O: 1 × USB 10Gbps Type-C with DisplayPort 1.4 output up to 4K @ 60Hz 4 × USB 10Gbps Type-A 4 × USB 2.0 Type-A, Audio: Realtek ALC897 HD Audio Codec, Internal Connectors: 1 × 24-pin ATX power connector 1 × 8-pin +12V CPU power connector 1 × 4-pin CPU_FAN header 1 × 4-pin PUMP header with DC speed control 2 × 4-pin chassis fan headers, Operating System: Windows® 11 Windows® 10 64-bit, Special Features: Rear-mounted graphics card slot CLR_CMOS quick button 1 × 3-pin ARGB header 1 × COM header 1 × 10-1 pin system panel header PTM UI BIOS
