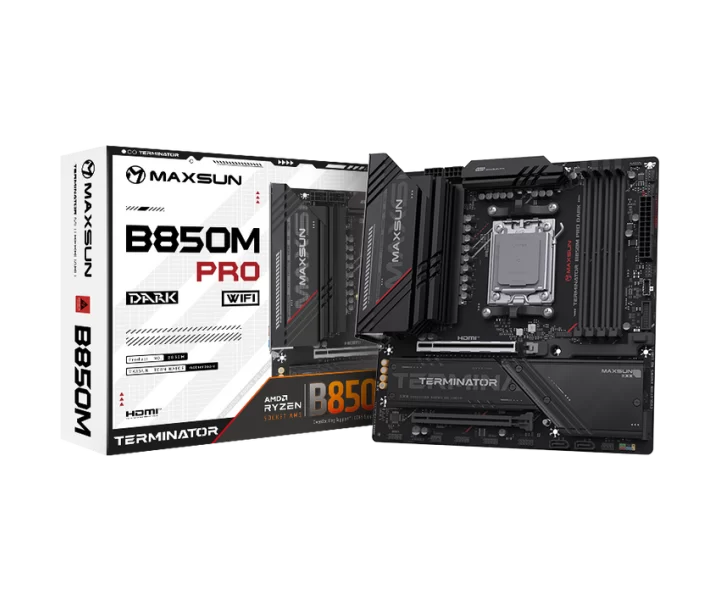

MS-Terminator B850M PRO DARK WIFI özellikleri ve fiyatları

MS-Terminator B850M PRO DARK WIFI teknik özellikleri

Model kodu

MS-Terminator B850M PRO DARK WIFI

İşlemci soketi

AM5

Uyumlu işlemciler

AMD AM5 socket, compatible with AMD Ryzen™ 7000, 8000, and 9000 series processors

Anakart yonga seti

AMD B850 Chipset

Anakart biçimi

Micro-ATX

Boyutlar

Micro ATX (245 × 245 mm)

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

4× DIMM DDR5 slots, up to 192GB total capacity Supports dual-channel memory architecture Supports AMD EXPO memory overclocking Supported frequencies: 4800 / 5200 / 5600(OC) / 6000(OC) / 6400(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7600(OC) / 7800(OC) / 8000(OC) MHz

Bellek hızı ve uyumluluk koşulları

4× DIMM DDR5 slots, up to 192GB total capacity Supports dual-channel memory architecture Supports AMD EXPO memory overclocking Supported frequencies: 4800 / 5200 / 5600(OC) / 6000(OC) / 6400(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7600(OC) / 7800(OC) / 8000(OC) MHz

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

192 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

1× PCIe x16 slot (supports PCIe 5.0 x16 mode) 1× PCIe x16 slot (supports PCIe 4.0 x4 mode)

PCIe şerit paylaşımı ve işlemci koşulları

1× PCIe x16 slot (supports PCIe 5.0 x16 mode) 1× PCIe x16 slot (supports PCIe 4.0 x4 mode)

storage Interfaces

M.2_A slot (Key M): supports PCIe 5.0 x4/x2 mode, 2280 length M.2_B slot (Key M): supports PCIe 5.0 x4/x2 mode, 2280 length M.2_C slot (Key M): supports PCIe 4.0 x2 mode, 2280 length

M.2 uyumluluğu ve şerit paylaşımı

M.2_A slot (Key M): supports PCIe 5.0 x4/x2 mode, 2280 length M.2_B slot (Key M): supports PCIe 5.0 x4/x2 mode, 2280 length M.2_C slot (Key M): supports PCIe 4.0 x2 mode, 2280 length

Kablolu ağ bağlantısı

1× Realtek RTL8125D 2.5G Ethernet port 1× MediaTek MT7922 wireless module: supports Wi-Fi 6E and Bluetooth v5.2

Wi-Fi

1× Realtek RTL8125D 2.5G Ethernet port 1× MediaTek MT7922 wireless module: supports Wi-Fi 6E and Bluetooth v5.2

Bluetooth sürümü

5.2

USB bağlantısı

Onboard USB (7 total): 1× USB 5G 19-pin header (supports 2 additional USB 5G ports) 2× USB 2.0 9-pin headers (support 4 additional USB 2.0 ports) 1× USB 10G Type-C front panel port Rear I/O USB (9 total): 4× USB 5G Type-A ports 4× USB 2.0 Type-A ports 1× USB 10G Type-C port

Görüntü çıkışları ve kullanım koşulları

1× DP port, supports up to 4K @ 60Hz resolution 1× HDMI 1.4 port, supports up to 4K @ 30Hz resolution

Ses çıkışı

Integrated Realtek ALC897 audio codec

Ses yongası

Realtek ALC897

Diğer anakart özellikleri

1× 24-pin ATX power connector 2× 8-pin +12V CPU power connectors 1× 4-pin CPU_FAN header 1× 4-pin PUMP header 2× 4-pin SYS_FAN headers 2× 3-pin 5V ARGB headers 1× CLR_CMOS quick-access button

Üreticinin ayrıntılı teknik bilgileri

Model: MS-Terminator B850M PRO DARK WIFI, Form Factor: Micro ATX (245 × 245 mm), CPU Socket: AMD AM5 socket, compatible with AMD Ryzen™ 7000, 8000, and 9000 series processors, Chipset: AMD B850 Chipset, Memory: 4× DIMM DDR5 slots, up to 192GB total capacity Supports dual-channel memory architecture Supports AMD EXPO memory overclocking Supported frequencies: 4800 / 5200 / 5600(OC) / 6000(OC) / 6400(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7600(OC) / 7800(OC) / 8000(OC) MHz, Display Outputs: 1× DP port, supports up to 4K @ 60Hz resolution 1× HDMI 1.4 port, supports up to 4K @ 30Hz resolution, Expansion Slots: 1× PCIe x16 slot (supports PCIe 5.0 x16 mode) 1× PCIe x16 slot (supports PCIe 4.0 x4 mode), Audio: Integrated Realtek ALC897 audio codec, Networking: 1× Realtek RTL8125D 2.5G Ethernet port 1× MediaTek MT7922 wireless module: supports Wi-Fi 6E and Bluetooth v5.2, Storage: M.2_A slot (Key M): supports PCIe 5.0 x4/x2 mode, 2280 length M.2_B slot (Key M): supports PCIe 5.0 x4/x2 mode, 2280 length M.2_C slot (Key M): supports PCIe 4.0 x2 mode, 2280 length, USB: Onboard USB (7 total): 1× USB 5G 19-pin header (supports 2 additional USB 5G ports) 2× USB 2.0 9-pin headers (support 4 additional USB 2.0 ports) 1× USB 10G Type-C front panel port Rear I/O USB (9 total): 4× USB 5G Type-A ports 4× USB 2.0 Type-A ports 1× USB 10G Type-C port, Other Features: 1× 24-pin ATX power connector 2× 8-pin +12V CPU power connectors 1× 4-pin CPU_FAN header 1× 4-pin PUMP header 2× 4-pin SYS_FAN headers 2× 3-pin 5V ARGB headers 1× CLR_CMOS quick-access button
