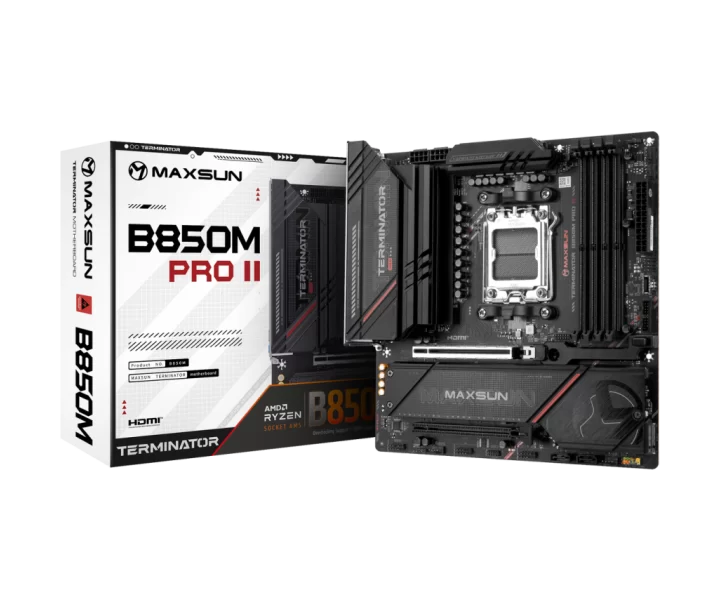

MS-Terminator B850M PRO II WIFI7 özellikleri ve fiyatları

MS-Terminator B850M PRO II WIFI7 teknik özellikleri

Model kodu

MS-Terminator B850M PRO II WIFI7

İşlemci soketi

AM5

Uyumlu işlemciler

AMD® AM5 socket Compatible with AMD® Ryzen™ 7000 / 8000 / 9000 Series processors

Anakart yonga seti

AMD® B850 chipset

Anakart biçimi

Micro-ATX

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

4 × DDR5 DIMM slots Dual-channel memory architecture Up to 192GB maximum capacity Supports AMD® EXPO memory overclocking Supported speeds: 4800 / 5200 / 5600(OC) / 6000(OC) / 6400(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7600(OC) / 7800(OC) / 8000(OC) MHz

Bellek hızı ve uyumluluk koşulları

4 × DDR5 DIMM slots Dual-channel memory architecture Up to 192GB maximum capacity Supports AMD® EXPO memory overclocking Supported speeds: 4800 / 5200 / 5600(OC) / 6000(OC) / 6400(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7600(OC) / 7800(OC) / 8000(OC) MHz

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

192 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

1 × PCIe x16 slot (PCIe 5.0 x16) 1 × PCIe x16 slot (PCIe 4.0 x4)

PCIe şerit paylaşımı ve işlemci koşulları

1 × PCIe x16 slot (PCIe 5.0 x16) 1 × PCIe x16 slot (PCIe 4.0 x4)

storage Interfaces

M.2_A (Key M): PCIe 5.0 x4/x2, supports 2280 M.2_B (Key M): PCIe 5.0 x4/x2, supports 2280 M.2_C (Key M): PCIe 4.0 x4, supports 2280

M.2 uyumluluğu ve şerit paylaşımı

M.2_A (Key M): PCIe 5.0 x4/x2, supports 2280 M.2_B (Key M): PCIe 5.0 x4/x2, supports 2280 M.2_C (Key M): PCIe 4.0 x4, supports 2280

Kablolu ağ bağlantısı

1 × Realtek RTL8125D 2.5Gb Ethernet 1 × MTK MT7925 wireless module Supports Wi-Fi 7 & Bluetooth® 5.4

Wi-Fi

1 × Realtek RTL8125D 2.5Gb Ethernet 1 × MTK MT7925 wireless module Supports Wi-Fi 7 & Bluetooth® 5.4

Bluetooth sürümü

5.4

USB bağlantısı

Onboard USB headers (Total: 7 ports): 1 × USB 3.2 Gen1 19-Pin header (supports 2 × USB 5Gbps) 2 × USB 2.0 9-Pin headers (supports 4 × USB 2.0) 1 × USB 3.2 Gen2 Type-C front panel header Rear I/O (Total: 9 ports): 4 × USB 3.2 Gen1 Type-A (5Gbps) 4 × USB 2.0 Type-A 1 × USB 3.2 Gen2 Type-C (10Gbps)

Dahili bağlantılar ve ön panel başlıkları

1 × 24-Pin ATX power 2 × 8-Pin +12V CPU power 1 × 4-Pin CPU_FAN header 1 × 4-Pin PUMP header 2 × 4-Pin SYS_FAN headers 2 × 5V 3-Pin ARGB headers Rear CLR_CMOS reset button

Güç bağlantıları

1 × 24-Pin ATX power 2 × 8-Pin +12V CPU power 1 × 4-Pin CPU_FAN header 1 × 4-Pin PUMP header 2 × 4-Pin SYS_FAN headers 2 × 5V 3-Pin ARGB headers Rear CLR_CMOS reset button

Görüntü çıkışları ve kullanım koşulları

1 × DisplayPort (up to 4K @ 60Hz) 1 × HDMI™ 1.4 (up to 4K @ 30Hz)

Ses çıkışı

Realtek ALC897 HD Audio Codec

Ses yongası

Realtek ALC897

Üreticinin ayrıntılı teknik bilgileri

Model: MS-Terminator B850M PRO II WIFI7, Form Factor: M-ATX (Micro-ATX) Size: 245mm × 245mm, CPU Support: AMD® AM5 socket Compatible with AMD® Ryzen™ 7000 / 8000 / 9000 Series processors, Chipset: AMD® B850 chipset, Memory: 4 × DDR5 DIMM slots Dual-channel memory architecture Up to 192GB maximum capacity Supports AMD® EXPO memory overclocking Supported speeds: 4800 / 5200 / 5600(OC) / 6000(OC) / 6400(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7600(OC) / 7800(OC) / 8000(OC) MHz, Graphics Output: 1 × DisplayPort (up to 4K @ 60Hz) 1 × HDMI™ 1.4 (up to 4K @ 30Hz), Expansion Slots: 1 × PCIe x16 slot (PCIe 5.0 x16) 1 × PCIe x16 slot (PCIe 4.0 x4), Storage Interfaces: M.2_A (Key M): PCIe 5.0 x4/x2, supports 2280 M.2_B (Key M): PCIe 5.0 x4/x2, supports 2280 M.2_C (Key M): PCIe 4.0 x4, supports 2280, Networking: 1 × Realtek RTL8125D 2.5Gb Ethernet 1 × MTK MT7925 wireless module Supports Wi-Fi 7 & Bluetooth® 5.4, USB Ports: Onboard USB headers (Total: 7 ports): 1 × USB 3.2 Gen1 19-Pin header (supports 2 × USB 5Gbps) 2 × USB 2.0 9-Pin headers (supports 4 × USB 2.0) 1 × USB 3.2 Gen2 Type-C front panel header Rear I/O (Total: 9 ports): 4 × USB 3.2 Gen1 Type-A (5Gbps) 4 × USB 2.0 Type-A 1 × USB 3.2 Gen2 Type-C (10Gbps), Audio: Realtek ALC897 HD Audio Codec, Internal Connectors & Features: 1 × 24-Pin ATX power 2 × 8-Pin +12V CPU power 1 × 4-Pin CPU_FAN header 1 × 4-Pin PUMP header 2 × 4-Pin SYS_FAN headers 2 × 5V 3-Pin ARGB headers Rear CLR_CMOS reset button
