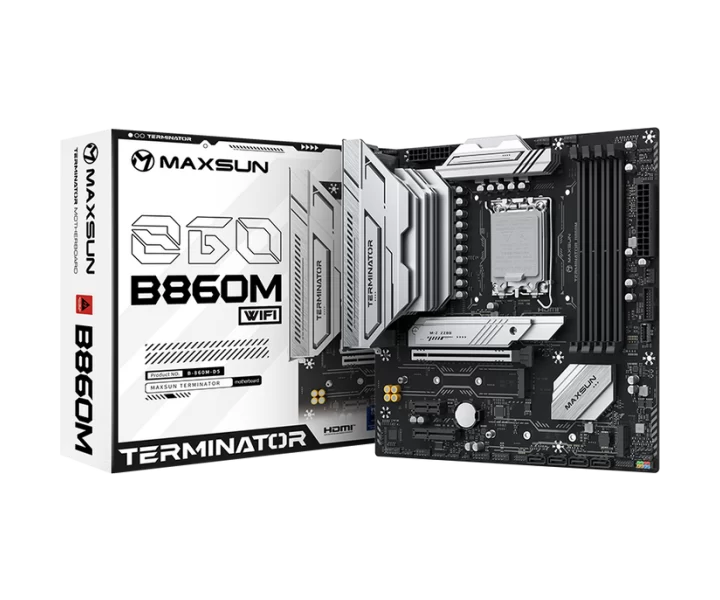

MS-Terminator B860M WIFI özellikleri ve fiyatları

MS-Terminator B860M WIFI teknik özellikleri

Model kodu

MS-Terminator B860M WIFI

İşlemci soketi

LGA1851

Uyumlu işlemciler

Intel® LGA1851 Socket, compatible with Intel® Core™ Ultra Processors

Anakart yonga seti

Intel® B860 Chipset

Anakart biçimi

Micro-ATX

Boyutlar

M-ATX (245 x 245 mm)

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

4 x DIMM DDR5 slots, supporting up to 192GB Supports Dual-Channel Memory Technology Supports memory frequencies: XMP 4800/5600/6400/6600(OC)/6800(OC)/7000(OC)/7200(OC)/7400(OC)/7600(OC)/8000(OC)/8200(OC)/8400(OC)/8600(OC)/8800(OC) MHz

Bellek hızı ve uyumluluk koşulları

4 x DIMM DDR5 slots, supporting up to 192GB Supports Dual-Channel Memory Technology Supports memory frequencies: XMP 4800/5600/6400/6600(OC)/6800(OC)/7000(OC)/7200(OC)/7400(OC)/7600(OC)/8000(OC)/8200(OC)/8400(OC)/8600(OC)/8800(OC) MHz

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

192 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

1 x PCIe x16 slot (supports PCIe 5.0 x16 mode) 1 x PCIe x4 slot (supports PCIe 4.0 x4 mode) 1 x PCIe x1 slot (supports PCIe 4.0 x1 mode)

PCIe şerit paylaşımı ve işlemci koşulları

1 x PCIe x16 slot (supports PCIe 5.0 x16 mode) 1 x PCIe x4 slot (supports PCIe 4.0 x4 mode) 1 x PCIe x1 slot (supports PCIe 4.0 x1 mode)

storage Interfaces

1 x M.2 slot, supports PCIe 5.0 x4/x2 mode, supports 2242/2280 length 2 x M.2 slots, supports PCIe 4.0 x4/x2 mode, supports 2242/2280/22110 length 4 x SATA 6Gb/s connectors

M.2 uyumluluğu ve şerit paylaşımı

1 x M.2 slot, supports PCIe 5.0 x4/x2 mode, supports 2242/2280 length 2 x M.2 slots, supports PCIe 4.0 x4/x2 mode, supports 2242/2280/22110 length 4 x SATA 6Gb/s connectors

SATA bağlantı sayısı

4

Kablolu ağ bağlantısı

Integrated Realtek RTL8125BG Ethernet controller 1 x M.2 Wi-Fi slot (Key_E) Onboard Intel® AX201 Wireless Network Card: Wi-Fi 6 & Bluetooth 5.2

Wi-Fi

Integrated Realtek RTL8125BG Ethernet controller 1 x M.2 Wi-Fi slot (Key_E) Onboard Intel® AX201 Wireless Network Card: Wi-Fi 6 & Bluetooth 5.2

Bluetooth sürümü

5.2

USB bağlantısı

Onboard USB: 1 x USB 3.2 Gen2x2 Type-C® (20G) front port 1 x USB 3.2 Gen1 (5G) 19-pin header, supporting 2 additional USB 3.2 Gen1 ports 2 x USB 2.0 9-pin headers, supporting 4 additional USB 2.0 ports Rear USB: 1 x USB 40G Type-C® port (supports up to 15W power delivery) 2 x USB 3.2 Gen2 Type-A (10G) ports 6 x USB 2.0 Type-A ports

Görüntü çıkışları ve kullanım koşulları

1 x HDMI 2.0 port, supports up to 4K@120Hz resolution 1 x DP 1.4 port, supports up to 4K@120Hz resolution

Ses çıkışı

Integrated Realtek ALC897 audio codec

Ses yongası

Realtek ALC897

Diğer anakart özellikleri

1 x 24-pin ATX power connector 8+8-pin +12V power connector 2 x 3-pin ARGB headers 1 x 4-pin NRGB header 1 x COM port header 1 x CLR CMOS reset header 1 x 4-pin CPU FAN header 1 x 4-pin PUMP header (supports DC speed control) 2 x 4-pin SYS FAN headers for chassis fans

Üreticinin ayrıntılı teknik bilgileri

Model: MS-Terminator B860M WIFI, Motherboard Size: M-ATX (245 x 245 mm), CPU Socket: Intel® LGA1851 Socket, compatible with Intel® Core™ Ultra Processors, Chipset: Intel® B860 Chipset, Memory: 4 x DIMM DDR5 slots, supporting up to 192GB Supports Dual-Channel Memory Technology Supports memory frequencies: XMP 4800/5600/6400/6600(OC)/6800(OC)/7000(OC)/7200(OC)/7400(OC)/7600(OC)/8000(OC)/8200(OC)/8400(OC)/8600(OC)/8800(OC) MHz, Display: 1 x HDMI 2.0 port, supports up to 4K@120Hz resolution 1 x DP 1.4 port, supports up to 4K@120Hz resolution, Expansion Slots: 1 x PCIe x16 slot (supports PCIe 5.0 x16 mode) 1 x PCIe x4 slot (supports PCIe 4.0 x4 mode) 1 x PCIe x1 slot (supports PCIe 4.0 x1 mode), Audio: Integrated Realtek ALC897 audio codec, Networking: Integrated Realtek RTL8125BG Ethernet controller 1 x M.2 Wi-Fi slot (Key_E) Onboard Intel® AX201 Wireless Network Card: Wi-Fi 6 & Bluetooth 5.2, Storage: 1 x M.2 slot, supports PCIe 5.0 x4/x2 mode, supports 2242/2280 length 2 x M.2 slots, supports PCIe 4.0 x4/x2 mode, supports 2242/2280/22110 length 4 x SATA 6Gb/s connectors, USB: Onboard USB: 1 x USB 3.2 Gen2x2 Type-C® (20G) front port 1 x USB 3.2 Gen1 (5G) 19-pin header, supporting 2 additional USB 3.2 Gen1 ports 2 x USB 2.0 9-pin headers, supporting 4 additional USB 2.0 ports Rear USB: 1 x USB 40G Type-C® port (supports up to 15W power delivery) 2 x USB 3.2 Gen2 Type-A (10G) ports 6 x USB 2.0 Type-A ports, Other Features: 1 x 24-pin ATX power connector 8+8-pin +12V power connector 2 x 3-pin ARGB headers 1 x 4-pin NRGB header 1 x COM port header 1 x CLR CMOS reset header 1 x 4-pin CPU FAN header 1 x 4-pin PUMP header (supports DC speed control) 2 x 4-pin SYS FAN headers for chassis fans

Güncel mağaza teklifleri

Son 48 saat içinde doğrulanmış, stokta mağaza teklifi yok. Eski fiyatlar güncel teklif olarak gösterilmez.
