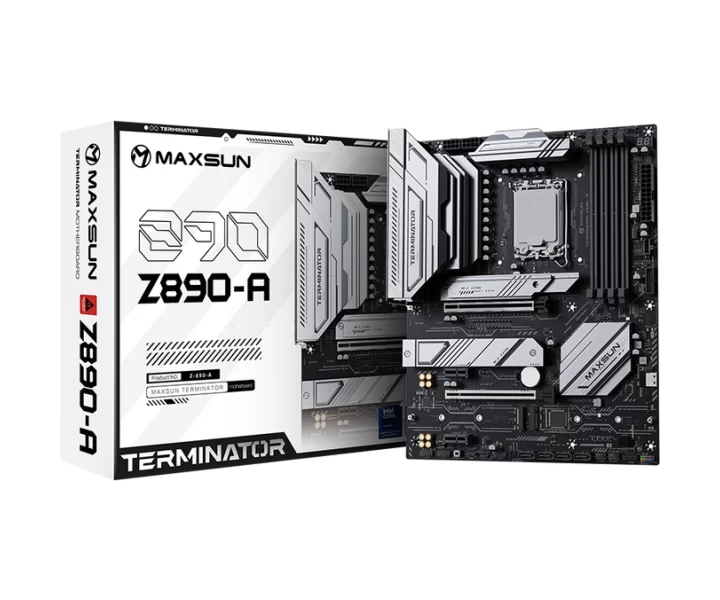

MS-Terminator Z890-A özellikleri ve fiyatları

MS-Terminator Z890-A teknik özellikleri

Model kodu

MS-Terminator Z890-A

İşlemci soketi

LGA1851

Uyumlu işlemciler

Intel® LGA1851, compatible with Intel® Core™ Ultra processors

Anakart yonga seti

Intel® Z890 Chipset

Anakart biçimi

ATX

Boyutlar

ATX (305 × 245 mm)

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

4 × DIMM DDR5 slots, up to 256GB Dual-channel memory support Supports XMP frequencies: 4800/5600/6400/7600(OC)/8000(OC)/8200(OC)/8400(OC)/8600(OC)/8800(OC) MHz

Bellek hızı ve uyumluluk koşulları

4 × DIMM DDR5 slots, up to 256GB Dual-channel memory support Supports XMP frequencies: 4800/5600/6400/7600(OC)/8000(OC)/8200(OC)/8400(OC)/8600(OC)/8800(OC) MHz

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

256 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

1 × PCIe 5.0 x16 (configurable as x8+x8 or x8+x4+x4) 1 × PCIe x16 (supports PCIe 4.0 x4) 2 × PCIe x1 (supports PCIe 4.0 x1)

PCIe şerit paylaşımı ve işlemci koşulları

1 × PCIe 5.0 x16 (configurable as x8+x8 or x8+x4+x4) 1 × PCIe x16 (supports PCIe 4.0 x4) 2 × PCIe x1 (supports PCIe 4.0 x1)

storage Interfaces

1 × M.2 slot (supports PCIe 5.0 x4/x2, 2242/2280) 3 × M.2 slots (supports PCIe 4.0 x4/x2, 2242/2280/22110) 4 × SATA 6Gb/s ports 1 × SFF-8654 4i interface (supports PCIe 4.0 x4/x2 or 4x SATA 6Gb/s)

M.2 uyumluluğu ve şerit paylaşımı

1 × M.2 slot (supports PCIe 5.0 x4/x2, 2242/2280) 3 × M.2 slots (supports PCIe 4.0 x4/x2, 2242/2280/22110) 4 × SATA 6Gb/s ports 1 × SFF-8654 4i interface (supports PCIe 4.0 x4/x2 or 4x SATA 6Gb/s)

SATA bağlantı sayısı

4

Kablolu ağ bağlantısı

Integrated Realtek RTL8125D LAN chip 1 × M.2 WIFI Slot (Key_E)

Wi-Fi

Integrated Realtek RTL8125D LAN chip 1 × M.2 WIFI Slot (Key_E)

USB bağlantısı

Onboard USB: 1 × USB 20G Type-C® (front) 1 × USB 5G 19-pin header (supports 2 additional USB 5G ports) 1 × USB 2.0 9-pin header (supports 2 additional USB 2.0 ports) Rear USB: 1 × USB 40G Type-C® 2 × USB 10G Type-A 4 × USB 5G Type-A 2 × USB 2.0 Type-A

Görüntü çıkışları ve kullanım koşulları

1 × HDMI™ 2.0 (supports up to 4K@60Hz) 1 × DP (supports up to 4K@120Hz)

Ses çıkışı

Integrated Realtek ALC897 audio chip

Ses yongası

Realtek ALC897

Diğer anakart özellikleri

1 × 24-pin ATX power connector 2 × 8-pin +12V power connectors 2 × 3-pin ARGB headers 1 × 4-pin NRGB header 1 × COM header 1 × CLR CMOS reset header 1 × 4-pin CPU fan header 1 × 4-pin pump fan header (supports DC regulation) 4 × 4-pin chassis fan headers

Üreticinin ayrıntılı teknik bilgileri

Model: MS-Terminator Z890-A, Form Factor: ATX (305 × 245 mm), CPU Socket: Intel® LGA1851, compatible with Intel® Core™ Ultra processors, Chipset: Intel® Z890 Chipset, Memory: 4 × DIMM DDR5 slots, up to 256GB Dual-channel memory support Supports XMP frequencies: 4800/5600/6400/7600(OC)/8000(OC)/8200(OC)/8400(OC)/8600(OC)/8800(OC) MHz, Display: 1 × HDMI™ 2.0 (supports up to 4K@60Hz) 1 × DP (supports up to 4K@120Hz), Expansion Slots: 1 × PCIe 5.0 x16 (configurable as x8+x8 or x8+x4+x4) 1 × PCIe x16 (supports PCIe 4.0 x4) 2 × PCIe x1 (supports PCIe 4.0 x1), Audio: Integrated Realtek ALC897 audio chip, Networking: Integrated Realtek RTL8125D LAN chip 1 × M.2 WIFI Slot (Key_E), Storage: 1 × M.2 slot (supports PCIe 5.0 x4/x2, 2242/2280) 3 × M.2 slots (supports PCIe 4.0 x4/x2, 2242/2280/22110) 4 × SATA 6Gb/s ports 1 × SFF-8654 4i interface (supports PCIe 4.0 x4/x2 or 4x SATA 6Gb/s), USB Ports: Onboard USB: 1 × USB 20G Type-C® (front) 1 × USB 5G 19-pin header (supports 2 additional USB 5G ports) 1 × USB 2.0 9-pin header (supports 2 additional USB 2.0 ports) Rear USB: 1 × USB 40G Type-C® 2 × USB 10G Type-A 4 × USB 5G Type-A 2 × USB 2.0 Type-A, Other Features: 1 × 24-pin ATX power connector 2 × 8-pin +12V power connectors 2 × 3-pin ARGB headers 1 × 4-pin NRGB header 1 × COM header 1 × CLR CMOS reset header 1 × 4-pin CPU fan header 1 × 4-pin pump fan header (supports DC regulation) 4 × 4-pin chassis fan headers
