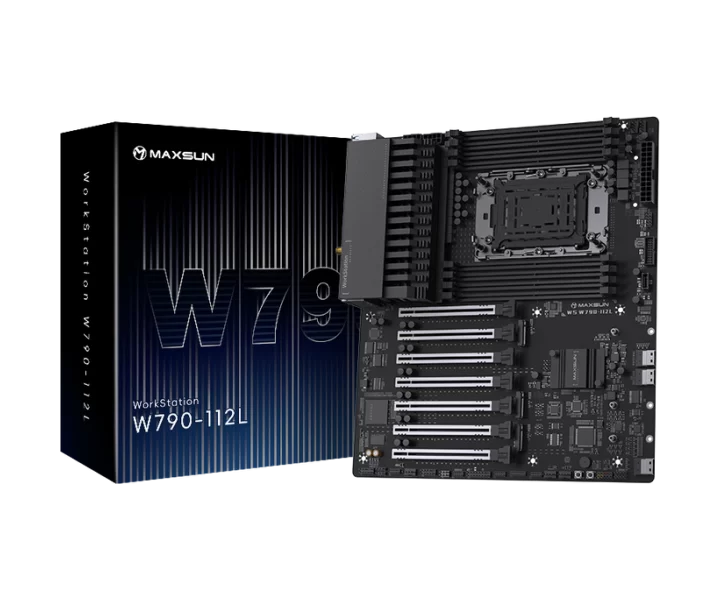

MS-Workstation W790-112L özellikleri ve fiyatları

MS-Workstation W790-112L teknik özellikleri

Model kodu

MS-Workstation W790-112L

İşlemci soketi

LGA4677

Uyumlu işlemciler

Intel® LGA4677 socket Supports Intel® Xeon® W-2400 / W-2500 / W-3400 / W-3500 series processors TDP support up to 1000W

Anakart yonga seti

Intel® W790 chipset

Anakart biçimi

E-ATX

Boyutlar

E-ATX Dimensions: 305 × 268 mm

RAM türü

DDR5

Desteklenen bellek yapılandırmaları

8 × R-DDR5 ECC DIMM slots Max capacity: 2048GB 1DPC 8-channel architecture Supports Intel® XMP Supported speeds: 6800 / 6600 / 6400 / 5600 / 4800 / 4400 MT/s

Bellek hızı ve uyumluluk koşulları

8 × R-DDR5 ECC DIMM slots Max capacity: 2048GB 1DPC 8-channel architecture Supports Intel® XMP Supported speeds: 6800 / 6600 / 6400 / 5600 / 4800 / 4400 MT/s

Desteklenen en yüksek RAM

2048 GB

PCIe yuvaları

With Intel® Xeon® W processors: 7 × PCIe x16 slots Supports PCIe 5.0 x16 Configurable as x16 / x8 + x8 Supports bypass mode

PCIe şerit paylaşımı ve işlemci koşulları

With Intel® Xeon® W processors: 7 × PCIe x16 slots Supports PCIe 5.0 x16 Configurable as x16 / x8 + x8 Supports bypass mode

storage Interfaces

3 × M.2 slots + 3 × SFF-8654 4i ports M.2_A (Key-M): PCIe 4.0 x4/x2, 2280/22110 M.2_B (Key-M): PCIe 4.0 x4/x2, 2280/22110 M.2_C (Key-M): PCIe 4.0 x4/x2, 2280/22110 SFF-8654 4i_A: PCIe 4.0 x4/x2 or SATA (4 × SATA 6Gb/s) SFF-8654 4i_B: PCIe 3.0 x4/x2 or SATA (4 × SATA 6Gb/s) SFF-8654 4i_C: PCIe 3.0 x4/x2

M.2 uyumluluğu ve şerit paylaşımı

3 × M.2 slots + 3 × SFF-8654 4i ports M.2_A (Key-M): PCIe 4.0 x4/x2, 2280/22110 M.2_B (Key-M): PCIe 4.0 x4/x2, 2280/22110 M.2_C (Key-M): PCIe 4.0 x4/x2, 2280/22110 SFF-8654 4i_A: PCIe 4.0 x4/x2 or SATA (4 × SATA 6Gb/s) SFF-8654 4i_B: PCIe 3.0 x4/x2 or SATA (4 × SATA 6Gb/s) SFF-8654 4i_C: PCIe 3.0 x4/x2

Depolama için M.2 yuvası sayısı

3

SATA bağlantı sayısı

4

Kablolu ağ bağlantısı

1 × Intel® I226-LM 2.5Gb Ethernet 1 × Intel® I226-V 2.5Gb Ethernet (vPro®) 1 × Realtek RTL8211 1Gb Ethernet (BMC + IPMI) 1 × Intel® AX201 Wi-Fi 6 & Bluetooth® 5.3

Wi-Fi

1 × Intel® I226-LM 2.5Gb Ethernet 1 × Intel® I226-V 2.5Gb Ethernet (vPro®) 1 × Realtek RTL8211 1Gb Ethernet (BMC + IPMI) 1 × Intel® AX201 Wi-Fi 6 & Bluetooth® 5.3

Bluetooth sürümü

5.3

USB bağlantısı

Onboard USB: 1 × USB-C® 20G header 1 × USB 5G 19-pin header (supports 2 ports) 1 × USB 2.0 9-pin header (supports 2 ports) Rear I/O USB: 1 × USB-C® 20G 10 × USB 10G Type-A

Arka panel bağlantıları

10 × USB 10G Type-A 1 × USB-C® 20G 1 × Intel® I226-LM 2.5Gb Ethernet 1 × Intel® I226-V 2.5Gb Ethernet (vPro®) 1 × Realtek RTL8211 1Gb Ethernet (BMC) 1 × VGA port 1 × CLR_CMOS button 1 × Wi-Fi antenna connector 3 × Audio jacks

Dahili bağlantılar ve ön panel başlıkları

1 × 24-pin ATX power connector 2 × 8-pin +12V CPU power connectors 1 × COM header 1 × SPI_TPM header 1 × IPMI header 1 × Front audio header 1 × SPDIF header 1 × 10-pin system panel header 1 × POWER_BIN onboard power button 1 × RESET_BIN onboard reset button

Güç bağlantıları

1 × 24-pin ATX power connector 2 × 8-pin +12V CPU power connectors 1 × COM header 1 × SPI_TPM header 1 × IPMI header 1 × Front audio header 1 × SPDIF header 1 × 10-pin system panel header 1 × POWER_BIN onboard power button 1 × RESET_BIN onboard reset button

Görüntü çıkışları ve kullanım koşulları

1 × VGA port Max resolution: 1080p @ 60Hz

Ses çıkışı

Realtek ALC897 HD audio codec 3 rear audio jacks

Ses yongası

Realtek ALC897

vrm

10-phase 110A SPS server-grade power design

Fan ve pompa bağlantıları

1 × 4-pin CPU_FAN 5 × 4-pin SYS_FAN

Diğer anakart özellikleri

Debug LEDs 80-code diagnostic display CLR_CMOS quick reset button POWER_BIN & RESET_BIN onboard switches SFF-8654 high-speed storage support Intel® vPro® technology IPMI remote management support BMC professional control capability

Üreticinin ayrıntılı teknik bilgileri

Model: MS-Workstation W790-112L, Form Factor: E-ATX Dimensions: 305 × 268 mm, CPU Support: Intel® LGA4677 socket Supports Intel® Xeon® W-2400 / W-2500 / W-3400 / W-3500 series processors TDP support up to 1000W, Power Delivery: 10-phase 110A SPS server-grade power design, Chipset: Intel® W790 chipset, Memory: 8 × R-DDR5 ECC DIMM slots Max capacity: 2048GB 1DPC 8-channel architecture Supports Intel® XMP Supported speeds: 6800 / 6600 / 6400 / 5600 / 4800 / 4400 MT/s, Display Output: 1 × VGA port Max resolution: 1080p @ 60Hz, PCIe Expansion: With Intel® Xeon® W processors: 7 × PCIe x16 slots Supports PCIe 5.0 x16 Configurable as x16 / x8 + x8 Supports bypass mode, Storage: 3 × M.2 slots + 3 × SFF-8654 4i ports M.2_A (Key-M): PCIe 4.0 x4/x2, 2280/22110 M.2_B (Key-M): PCIe 4.0 x4/x2, 2280/22110 M.2_C (Key-M): PCIe 4.0 x4/x2, 2280/22110 SFF-8654 4i_A: PCIe 4.0 x4/x2 or SATA (4 × SATA 6Gb/s) SFF-8654 4i_B: PCIe 3.0 x4/x2 or SATA (4 × SATA 6Gb/s) SFF-8654 4i_C: PCIe 3.0 x4/x2, Networking: 1 × Intel® I226-LM 2.5Gb Ethernet 1 × Intel® I226-V 2.5Gb Ethernet (vPro®) 1 × Realtek RTL8211 1Gb Ethernet (BMC + IPMI) 1 × Intel® AX201 Wi-Fi 6 & Bluetooth® 5.3, USB: Onboard USB: 1 × USB-C® 20G header 1 × USB 5G 19-pin header (supports 2 ports) 1 × USB 2.0 9-pin header (supports 2 ports) Rear I/O USB: 1 × USB-C® 20G 10 × USB 10G Type-A, Rear I/O Panel: 10 × USB 10G Type-A 1 × USB-C® 20G 1 × Intel® I226-LM 2.5Gb Ethernet 1 × Intel® I226-V 2.5Gb Ethernet (vPro®) 1 × Realtek RTL8211 1Gb Ethernet (BMC) 1 × VGA port 1 × CLR_CMOS button 1 × Wi-Fi antenna connector 3 × Audio jacks, Internal Connectors: 1 × 24-pin ATX power connector 2 × 8-pin +12V CPU power connectors 1 × COM header 1 × SPI_TPM header 1 × IPMI header 1 × Front audio header 1 × SPDIF header 1 × 10-pin system panel header 1 × POWER_BIN onboard power button 1 × RESET_BIN onboard reset button, Cooling: 1 × 4-pin CPU_FAN 5 × 4-pin SYS_FAN, Audio: Realtek ALC897 HD audio codec 3 rear audio jacks, OS Support: Windows® 11 Windows® 10 64-bit Linux, Special Features: Debug LEDs 80-code diagnostic display CLR_CMOS quick reset button POWER_BIN & RESET_BIN onboard switches SFF-8654 high-speed storage support Intel® vPro® technology IPMI remote management support BMC professional control capability
