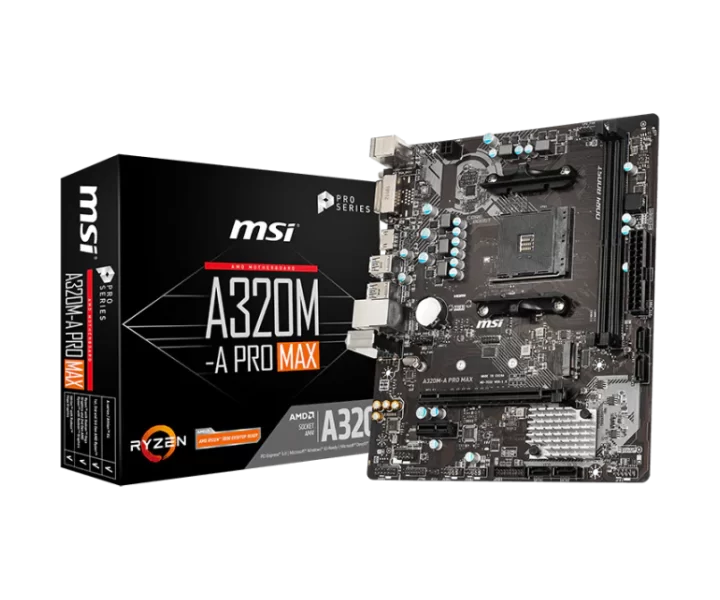

A320M-A PRO MAX özellikleri ve fiyatları

A320M-A PRO MAX teknik özellikleri

Model kodu

A320M-A PRO MAX

İşlemci soketi

AM4

Anakart yonga seti

AMD A320

Anakart biçimi

Micro-ATX

RAM türü

DDR4

Uyumlu işlemciler

Socket AM4; 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4;

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

64 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

DDR4 1866/ 2133/ 2400/ 2667/ 2933(OC)/ 3200(OC)Mhz(by JEDEC); 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz (by A-XMP OC MODE)

Bellekte hata düzeltme (ECC)

Non-ECC

Depolama için M.2 yuvası sayısı

1

SATA bağlantı sayısı

4

M.2 uyumluluğu ve şerit paylaşımı

AMD A320 Chipset; 4 x SATA 6Gb/s ports; Supports RAID 0, RAID1 and RAID 10; 1x M.2 slot (Key M); Supports PCIe 3.0 x4 and SATA 6Gb/s; 1st, 2nd and 3rd Gen AMD Ryzen; Ryzen with Radeon Vega Graphics; 2nd Gen AMD Ryzen with Radeon Graphics; Supports PCIe 3.0 x2 and SATA 6Gb/s; AMD Athlon with Radeon Vega Graphics; A-series; Athlon X4; Supports 2242/2280/22110 storage devices

Desteklenen M.2 boyut kodları

2242 / 2280 / 22110

M.2 bağlantı anahtarı

M-Key

USB bağlantısı

AMD A320 Chipset; 6x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector); 6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

Kablolu ağ bağlantısı

1 x Realtek 8111H Gigabit LAN controller

Kablolu ağ denetleyicisi

1 x Realtek 8111H Gigabit LAN controller

Ses yongası

Realtek ALC892/ALC897 Codec

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC892/ALC897 Codec; 7.1-Channel High Definition Audio

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 1x 4-pin ATX 12V power connector; 4x SATA 6Gb/s connectors; 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports); 1x 4-pin CPU fan connector; 1x 4-pin system fan connector; 1x Front panel audio connector; 2x Front panel connectors; 1x TPM module connector; 1x Chassis Intrusion connector; 1x Serial port connector; 1x Clear CMOS jumper

Güç bağlantıları

1x 24-pin ATX main power connector; 1x 4-pin ATX 12V power connector

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin system fan connector

Fan bağlantısı sayısı

2

Arka panel bağlantıları

Mouse; DVI-D Port; USB 3.2 Gen1; LAN Port; Keyboard; HDMI™ Port; USB 2.0 Ports; HD Audio Connectors

Görüntü çıkışları ve kullanım koşulları

1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz; 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz; Only support when using the processor with Graphicss; Maximum shared memory of 2048 MB

TPM güvenlik modülü bağlantısı

1x TPM module connector

Boyutlar

9.3 in. x 7.9 in. (23.6 cm x 20.0 cm)

PCIe yuvaları

1 x PCIe 3.0 x16 slot; Supports x16 speed; 1st, 2nd and 3rd Gen AMD Ryzen; Supports x8 speed; Ryzen with Radeon Vega Graphics; 2nd Gen AMD Ryzen with Radeon Graphics; A-series; Athlon X4; Supports x4 speed; AMD Athlon with Radeon Vega Graphics; PCIe 2.0 x1 slot

PCIe sürümü

PCIe 3.0 / PCIe 2.0

Üreticinin ayrıntılı teknik bilgileri

Processor: Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4; Processor: See supported processors; Chipset: AMD A320 Chipset; Memory: 2 x DDR4 memory slots, support up to 64GB *ComboPI 1.0.0.3-based and above BIOS are required.; Memory: Support DDR4 1866/ 2133/ 2400/ 2667/ 2933(OC)/ 3200(OC)Mhz(by JEDEC); Memory: Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz (by A-XMP OC MODE); Memory: Dual channel memory architecture; Memory: Supports ECC UDIMM memory (non-ECC mode); Memory: Support non-ECC UDIMM memory; Memory: See supported memory; Slots: 1 x PCIe 3.0 x16 slot; Slots: Supports x16 speed; Slots: 1st, 2nd and 3rd Gen AMD Ryzen; Slots: Supports x8 speed; Slots: Ryzen with Radeon Vega Graphics; Slots: 2nd Gen AMD Ryzen with Radeon Graphics; Slots: A-series; Slots: Athlon X4; Slots: Supports x4 speed; Slots: AMD Athlon with Radeon Vega Graphics; Slots: PCIe 2.0 x1 slot; Onboard Graphics: 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz; Onboard Graphics: 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz; Onboard Graphics: Only support when using the processor with Graphicss; Onboard Graphics: Maximum shared memory of 2048 MB; Storage: AMD A320 Chipset; Storage: 4 x SATA 6Gb/s ports; Storage: Supports RAID 0, RAID1 and RAID 10; Storage: 1x M.2 slot (Key M), Storage: Supports PCIe 3.0 x4 and SATA 6Gb/s; Storage: 1st, 2nd and 3rd Gen AMD Ryzen; Storage: Ryzen with Radeon Vega Graphics; Storage: 2nd Gen AMD Ryzen with Radeon Graphics; Storage: Supports PCIe 3.0 x2 and SATA 6Gb/s; Storage: AMD Athlon with Radeon Vega Graphics; Storage: A-series; Storage: Athlon X4; Storage: Supports 2242/2280/22110 storage devices; USB: AMD A320 Chipset; USB: 6x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector); USB: 6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors); Audio: Realtek ALC892/ALC897 Codec; Audio: 7.1-Channel High Definition Audio; LAN: 1 x Realtek 8111H Gigabit LAN controller; Internal connectors: 1x 24-pin ATX main power connector; Internal connectors: 1x 4-pin ATX 12V power connector; Internal connectors: 4x SATA 6Gb/s connectors; Internal connectors: 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); Internal connectors: 1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports); Internal connectors: 1x 4-pin CPU fan connector; Internal connectors: 1x 4-pin system fan connector; Internal connectors: 1x Front panel audio connector; Internal connectors: 2x Front panel connectors; Internal connectors: 1x TPM module connector; Internal connectors: 1x Chassis Intrusion connector; Internal connectors: 1x Serial port connector; Internal connectors: 1x Clear CMOS jumper, Back panel ports: Mouse; Back panel ports: DVI-D Port; Back panel ports: USB 3.2 Gen1; Back panel ports: LAN Port; Back panel ports: Keyboard; Back panel ports: HDMI Port; Back panel ports: USB 2.0 Ports; Back panel ports: HD Audio Connectors; Dimensions: 9.3 in. x 7.9 in. (23.6 cm x 20.0 cm); Dimensions: m-ATX Form Factor; Mounting: 6 mounting holes; Operating System: Support for Windows 10 64-bit; Operating System: Support for Windows 7 64-bit; Operating System: * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.; Box content: MSI does not guarantee the risks or damages caused by changing the cover.; Box content: These pictures are for reference only and may vary without notice.
