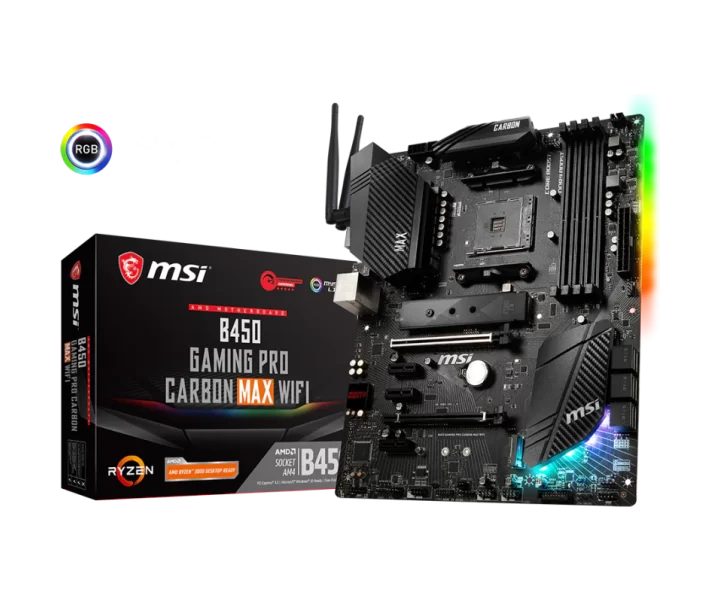

B450 GAMING PRO CARBON MAX WIFI özellikleri ve fiyatları

B450 GAMING PRO CARBON MAX WIFI teknik özellikleri

Model kodu

B450 GAMING PRO CARBON MAX WIFI

İşlemci soketi

AM4

Anakart yonga seti

AMD B450

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Socket AM4; 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4;

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

4 x DDR4 memory slots, up to 128GB 1866/ 2133/ 2400/ 2667Mhz (by JEDEC); For AMD Ryzen Gen3 (R5/R7/R9) 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE); For AMD Other CPU 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)

Bellekte hata düzeltme (ECC)

Non-ECC

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

6

M.2 uyumluluğu ve şerit paylaşımı

AMD B450 Chipset; 4 x SATA 6Gb/s ports; 1 x M.2 slot (M2_2, Key M); Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices; AMD CPU; 1 x M.2 slot (M2_1, Key M); Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s; Supports 2242/ 2260 /2280/ 22110 storage devices; 2 x SATA 6Gb/s ports; PCI_E2, PCI_E3, PCI_E4 and PCI_E5 slots will be unavailable when installing M.2 PCIe SSD in M2_2 slot.; SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M2_1 slot.

Desteklenen M.2 boyut kodları

2242 / 2260 / 2280 / 22110

M.2 bağlantı anahtarı

M-Key

RAID desteği

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; Supports RAID 0 and RAID 1 for M.2 NVMe RAID

USB bağlantısı

AMD B450 Chipset; 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel; 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel; 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector; 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors); AMD CPU; 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Kablolu ağ bağlantısı

1 x Intel I211AT Gigabit LAN controller

Kablolu ağ denetleyicisi

1 x Intel I211AT Gigabit LAN controller

Ses yongası

Realtek ALC1220 Codec

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC1220 Codec; 7.1-Channel High Definition Audio; Supports Optical S/PDIF output

Dahili bağlantılar ve ön panel başlıkları

1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x 4-pin ATX 12V power connector; 6 x SATA 6Gb/s connectors; 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports); 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports); 1 x 4-pin CPU fan connector; 1 x 4-pin water-pump-fan connector; 4 x 4-pin system fan connectors; 1 x TPM module connector; 1 x Front panel audio connector; 2 x System panel connectors; 1 x Chassis Intrusion connector; 1 x Serial Port connector; 1 x Clear CMOS jumper; 1 x 2pin LED Power connector; 2 x 5050 RGB LED strip 12V connectors (JRGB1~2); 1 x WS2812B Individually Addressable RGB LED strip 5V connector (JRAINBOW1); 1 x CORSAIR connector (JCORSAIR1)

Güç bağlantıları

1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x 4-pin ATX 12V power connector; 1 x 2pin LED Power connector

Fan ve pompa bağlantıları

1 x 4-pin CPU fan connector; 1 x 4-pin water-pump-fan connector; 4 x 4-pin system fan connectors

Fan bağlantısı sayısı

6

RGB aydınlatma bağlantısı sayısı

4

Görüntü çıkışları ve kullanım koşulları

1 x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz, 1920x1200 @60Hz; 1 x HDMI™ 2.0b with HDR port, supports a maximum resolution of 4K @60Hz; Only support when using AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors; Maximum shared memory of 2048 MB; Graphics specifications may vary depending on the CPU installed.

TPM güvenlik modülü bağlantısı

1 x TPM module connector

Boyutlar

12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Wi-Fi

Intel Dual Band Wireless-AC 9260; Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz,5GHz) up to 1.73 Gbps speed.; Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0,BLE,4.2, 5.0; 1 x M2_3 slot with E key (Wi-Fi mode)

Bluetooth sürümü

5.0

PCIe yuvaları

1x PCIe 3.0 x 16 slot (PCI_E1); Supports x 16 speed with 1st, 2nd and 3rd Gen AMD Ryzen processors; Supports x 8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors; Supports x 4 speed with Athlon with Radeon Vega Graphics Processors; 1 x PCIe 2.0 x 16 slot (PCI_E4, supports x4 mode); 3 x PCIe 2.0 x 1 slots; M2_2 slot will be unavailable when installing devices in PCI_E2, PCI_E3, PCI_E4 and PCI_E5 slot.; PCI_E4 will run x 1 speed when installing devices in any PCIe 2.0 x 1 slot.

PCIe sürümü

PCIe 3.0 / PCIe 2.0

Üreticinin ayrıntılı teknik bilgileri

Processor: Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4; Processor: See supported processors; Chipset: AMD B450 Chipset; Memory: 4 x DDR4 memory slots, support up to 128GB; Memory: Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC); Memory: For AMD Ryzen Gen3 (R5/R7/R9); Memory: Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE); Memory: For AMD Other CPU; Memory: Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE); Memory: Dual channel memory architecture; Memory: Supports non-ECC UDIMM memory; Memory: Supports ECC UDIMM memory (non-ECC mode); Memory: Please refer www.msi.com for more information on compatible memory.; Memory: See supported memory; Slots: 1x PCIe 3.0 x 16 slot (PCI_E1); Slots: Supports x 16 speed with 1st, 2nd and 3rd Gen AMD Ryzen processors; Slots: Supports x 8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors; Slots: Supports x 4 speed with Athlon with Radeon Vega Graphics Processors; Slots: 1 x PCIe 2.0 x 16 slot (PCI_E4, supports x4 mode); Slots: 3 x PCIe 2.0 x 1 slots; Slots: M2_2 slot will be unavailable when installing devices in PCI_E2, PCI_E3, PCI_E4 and PCI_E5 slot.; Slots: PCI_E4 will run x 1 speed when installing devices in any PCIe 2.0 x 1 slot., Onboard Graphics: 1 x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz, 1920x1200 @60Hz; Onboard Graphics: 1 x HDMI 2.0b with HDR port, supports a maximum resolution of 4K @60Hz; Onboard Graphics: Only support when using AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors; Onboard Graphics: Maximum shared memory of 2048 MB; Onboard Graphics: Graphics specifications may vary depending on the CPU installed.; Multi-GPU: Supports 2-Way AMD CrossFire Technology; Audio: Realtek ALC1220 Codec; Audio: 7.1-Channel High Definition Audio; Audio: Supports Optical S/PDIF output; Storage: AMD B450 Chipset; Storage: 4 x SATA 6Gb/s ports; Storage: 1 x M.2 slot (M2_2, Key M); Storage: Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices; Storage: AMD CPU; Storage: 1 x M.2 slot (M2_1, Key M); Storage: Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s; Storage: Supports 2242/ 2260 /2280/ 22110 storage devices; Storage: 2 x SATA 6Gb/s ports; Storage: PCI_E2, PCI_E3, PCI_E4 and PCI_E5 slots will be unavailable when installing M.2 PCIe SSD in M2_2 slot.; Storage: SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M2_1 slot.; RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; RAID: Supports RAID 0 and RAID 1 for M.2 NVMe RAID, USB: AMD B450 Chipset; USB: 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel; USB: 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel; USB: 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector; USB: 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors); USB: AMD CPU; USB: 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel; LAN: 1 x Intel I211AT Gigabit LAN controller; WiFi & Bluetooth: Intel Dual Band Wireless-AC 9260; WiFi & Bluetooth: Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz,5GHz) up to 1.73 Gbps speed.; WiFi & Bluetooth: Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0,BLE,4.2, 5.0; WiFi & Bluetooth: 1 x M2_3 slot with E key (Wi-Fi mode); Back Panel Connectors: PS/2 Combo Port; Back Panel Connectors: DisplayPort; Back Panel Connectors: Wi-Fi / Bluetooth; Back Panel Connectors: LAN; Back Panel Connectors: HD Audio Connectors; Back Panel Connectors: Flash BIOS Button; Back Panel Connectors: USB 2.0; Back Panel Connectors: HDMI; Back Panel Connectors: USB 3.2 Gen1; Back Panel Connectors: USB 3.2 Gen2 (Type A+C); Back Panel Connectors: Optical S/PDIF OUT; Internal connectors: 1 x 24-pin ATX main power connector; Internal connectors: 1 x 8-pin ATX 12V power connector; Internal connectors: 1 x 4-pin ATX 12V power connector; Internal connectors: 6 x SATA 6Gb/s connectors, Internal connectors: 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports); Internal connectors: 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports); Internal connectors: 1 x 4-pin CPU fan connector; Internal connectors: 1 x 4-pin water-pump-fan connector; Internal connectors: 4 x 4-pin system fan connectors; Internal connectors: 1 x TPM module connector; Internal connectors: 1 x Front panel audio connector; Internal connectors: 2 x System panel connectors; Internal connectors: 1 x Chassis Intrusion connector; Internal connectors: 1 x Serial Port connector; Internal connectors: 1 x Clear CMOS jumper; Internal connectors: 1 x 2pin LED Power connector; Internal connectors: 2 x 5050 RGB LED strip 12V connectors (JRGB1~2); Internal connectors: 1 x WS2812B Individually Addressable RGB LED strip 5V connector (JRAINBOW1); Internal connectors: 1 x CORSAIR connector (JCORSAIR1); Dimensions: ATX Form Factor; Dimensions: 12 in. x 9.6 in. (30.5 cm x 24.4 cm); Mounting: 9 mounting holes; Operating System: Support for Windows 10 64-bit; Operating System: Support for Windows 7 64-bit; Operating System: * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.; Box content: MSI does not guarantee the risks or damages caused by changing the cover.; Box content: These pictures are for reference only and may vary without notice.
